AL-KO ETI 811254 – Overrun device square 80 161S

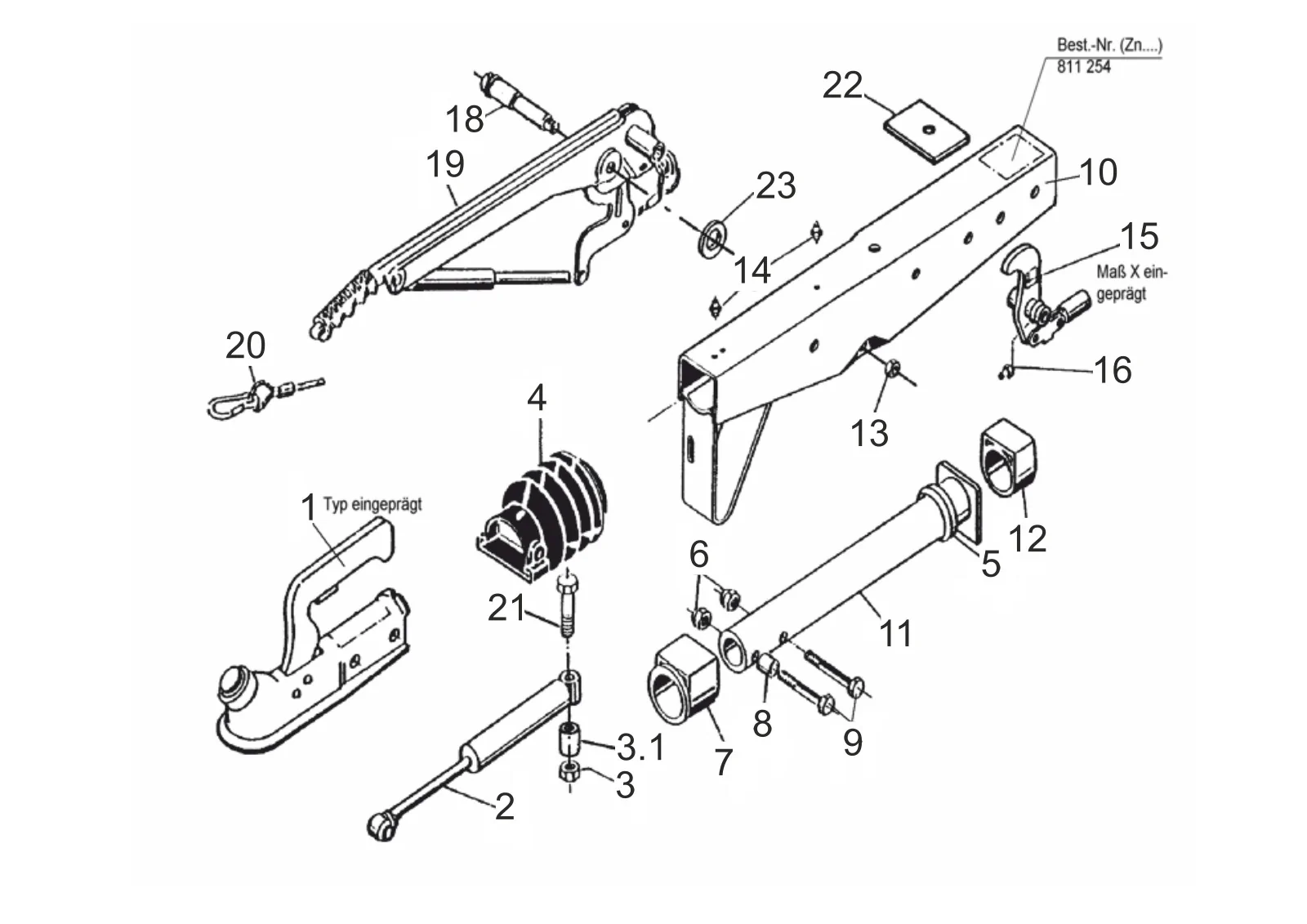

Looking for spare parts for AL-KO ETI 811254? Below you will find the technical exploded drawing and complete parts list for Overrun device square 80 161S.
Go to parts listExploded drawing
Technical drawing 811254
AL-KO ETI 811254
Technical details
AL-KO | square design | 161S | with gas spring lever | ball coupling and AKS
ETI number
811254
Parts
22
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811254
Use the position number from the exploded drawing to find the correct spare part.
22 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 2 | 370557 | Shock absorber 161S | View 370557 |
| 3 | 706437 | Self locking nut BIW M12 | View 706437 |
| 3.1 | 370580 | Distance bush | Enquire about this part |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 7 | 353943 | Flanged bush | Enquire about this part |
| 8 | 357242 | Distance bush | Enquire about this part |
| 9 | 705418 | Hexagon screw M12x70 DIN 931 8.8 | Enquire about this part |
| 10 | ETK0002 | Housing | Enquire about this part |
| 11 | 571874 | Draw tube welded 251S | View 571874 |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 13 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 14 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 15 | 648132 | Deflection lever cpl. iH=105:31,5 | Enquire about this part |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 706356 | Hexagon screw M12x105 DIN 931 8.8 | Enquire about this part |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| Or email info@masta.nl | |||
