AL-KO ETI 811214 – Wheel brake 1636G version 2

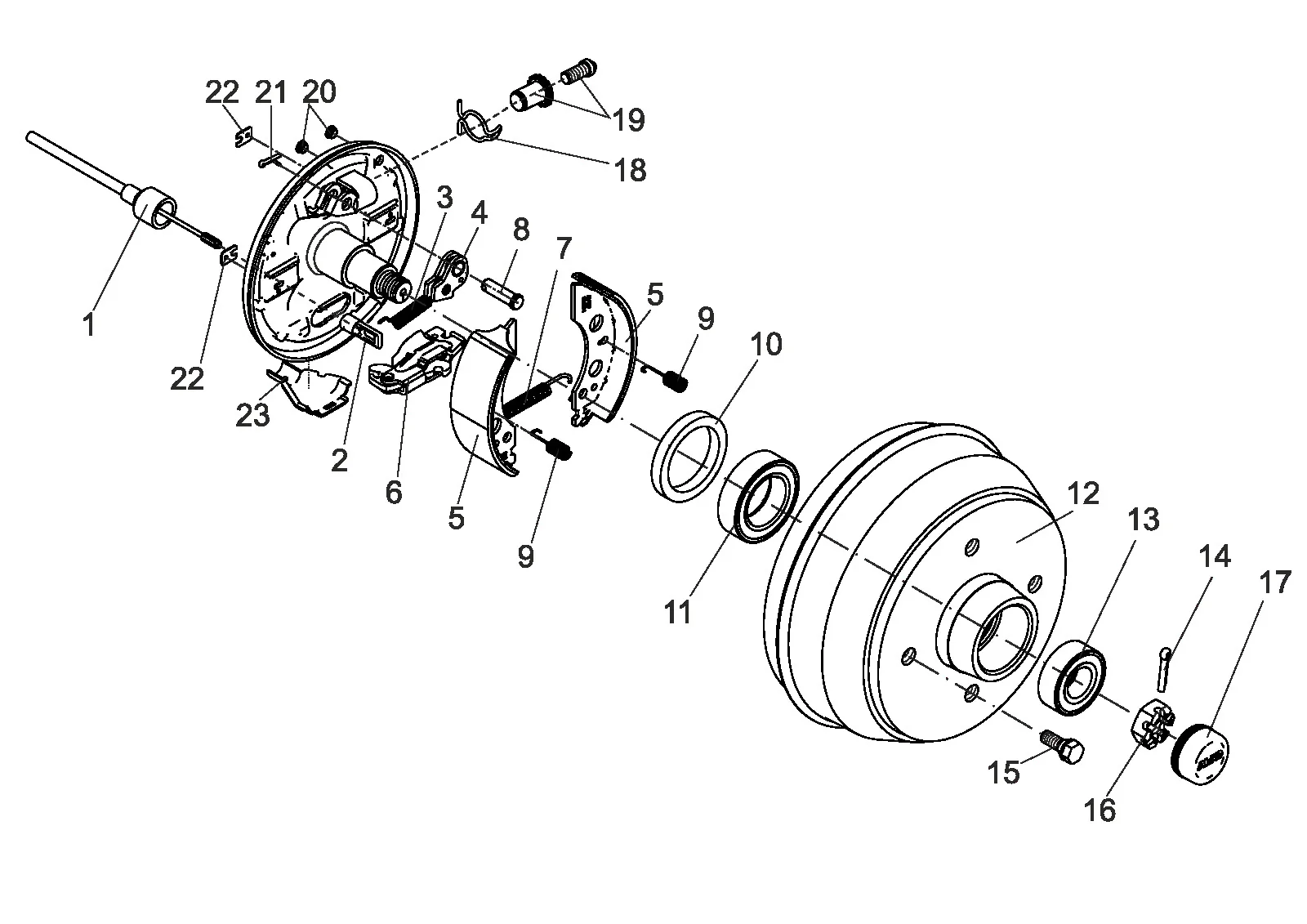

Looking for spare parts for AL-KO ETI 811214? Below you will find the technical exploded drawing and complete parts list for Wheel brake 1636G version 2.
Go to parts listExploded drawing
Technical drawing 811214
AL-KO ETI 811214
Technical details
AL-KO | standard | 1636G | 375 kg
ETI number
811214
Parts
38
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811214
Use the position number from the exploded drawing to find the correct spare part.
38 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable COMPACT 350/546 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247282 | Bowden cable COMPACT 530/726 long PROFI LONG LIFE | View 247282 |
| 1 | 247283 | Bowden cable COMPACT 770/966 long PROFI LONG LIFE | View 247283 |
| 1 | 247284 | Bowden cable COMPACT 890/1086 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247285 | Bowden cable COMPACT 1020/1216 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247286 | Bowden cable COMPACT 1130/1326 long PROFI LONG LIFE | View 247286 |
| 1 | 247287 | Bowden cable 1320/1516 long PROFI LONG LIFE | View 247287 |
| 1 | 247288 | Bowden cable COMPACT 1430/1626 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247289 | Bowden cable COMPACT 1620/1816 long PROFI LONG LIFE | View 247289 |
| 1 | 247290 | Bowden cable COMPACT 1790/1986 long PROFI LONG LIFE | Enquire about this part |
| 2 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 3 | 372805 | Tension spring right | View 372805 |
| 3 | 2188870001 | Tension spring left | View 2188870001 |
| 4 | 645426 | Auto reserve lever cpl. left | Enquire about this part |
| 4 | 645427 | Auto reserve lever cpl. right | Enquire about this part |
| 5 | 1213888 | Set brake jaw for one axle Achse 1635/1636/1637 | View 1213888 |
| 6 | 570666 | Spread hinge lock cpl. | Enquire about this part |
| 7 | 2182150003 | Tension spring | View 2182150003 |
| 8 | 368651 | Bearing bolt | Enquire about this part |
| 9 | 2088800003 | Compression spring | Enquire about this part |
| 10 | 701511 | Rotary shaft lip seal AS 40x52x7 DIN 3760-NB | View 701511 |
| 11 | 701513 | Tapered roller bearing LM 45449/410 | View 701513 |
| 12 | 691477 | Bremstrommel kpl. mit Lager Ø100x4 M12x1,5 | View 691477 |
| 12 | 1368398 | Bremstrommel kpl. mit Lager Ø98x4 M12x1,5 | View 1368398 |
| 13 | 701512 | Tapered roller bearing LM 11749/710 | View 701512 |
| 14 | 700194 | Split pin 4x32 DIN 94 | Enquire about this part |
| 15 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 16 | 700754 | Castle nut M16X1,5 DIN 937 | View 700754 |
| 17 | 2083990002 | End cap Ø48 AL-KO | View 2083990002 |
| 17 | 2381250003 | End cap Ø40 | View 2381250003 |
| 18 | 606692 | Spring at drawing | Enquire about this part |
| 19 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 20 | 373245 | Plug RAL6002 | View 373245 |
| 21 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 22 | 2382610002 | Cover plate | Enquire about this part |
| 23 | 371387 | Brake cable shell | Enquire about this part |
