AL-KO ETI 811198 – Overrun device V/square 60S/2
Looking for spare parts for AL-KO ETI 811198? Below you will find the technical exploded drawing and complete parts list for Overrun device V/square 60S/2.

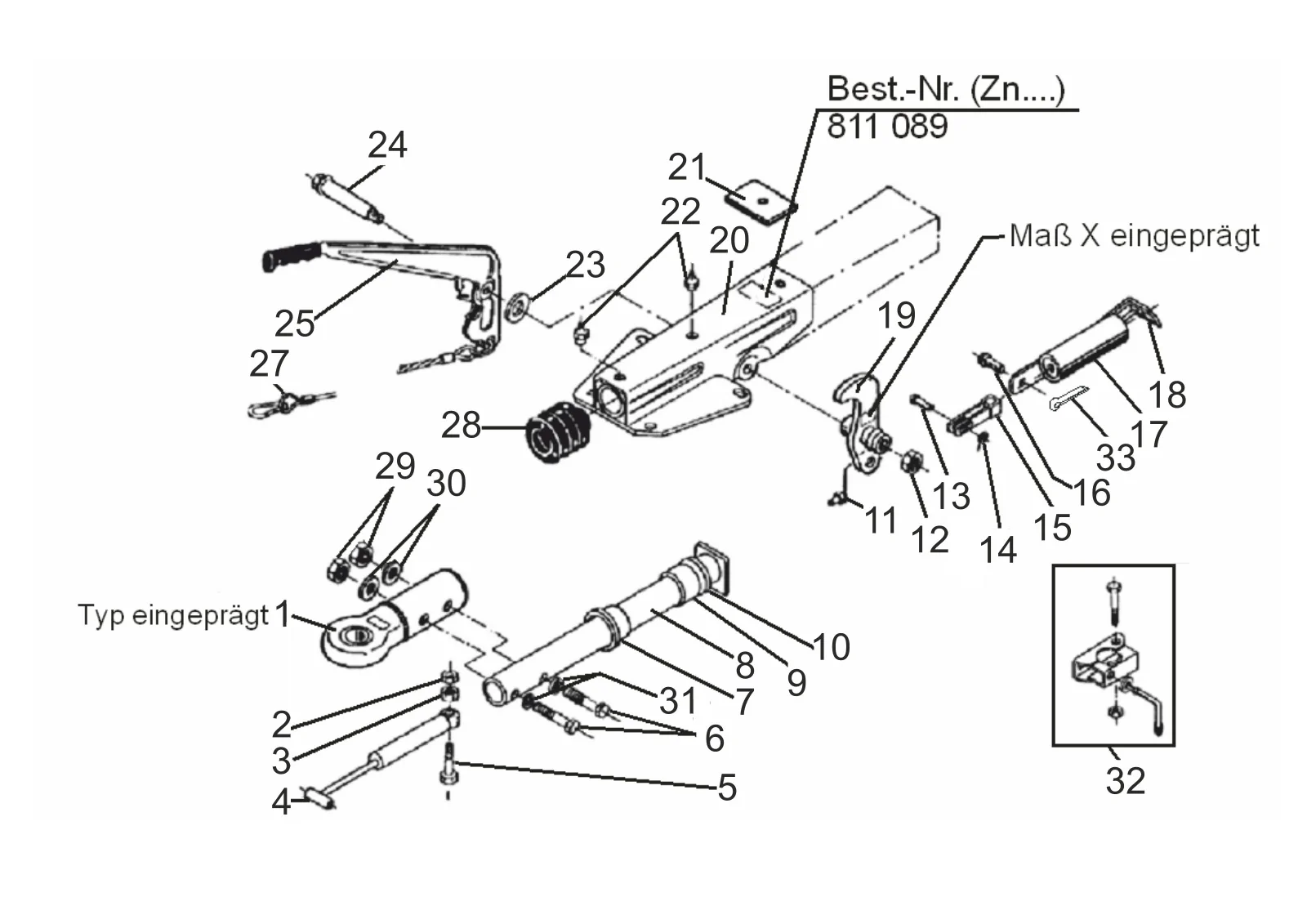

Exploded drawing
Technical drawing 811198
AL-KO ETI 811198
Technical details
AL-KO | V-design | 60S/2 | spring load memory | drawbar eye
ETI number
811198
Parts
35
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811198
Use the position number from the exploded drawing to find the correct spare part.
35 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 217240 | Drawbar eye DIN Ø40 | Enquire about this part |
| 1 | 217241 | Drawbar eye NATO Ø76 | Enquire about this part |
| 1 | 217299 | Drawbar eye Frankreich | Enquire about this part |
| 2 | 700644 | hexnut M10 DIN 980-V-10 ZP | Enquire about this part |
| 3 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 4 | 20767204 | Shock absorber 60S | View 20767204 |
| 5 | 706312 | Hexagon screw M10x50 DIN 931 8.8 | Enquire about this part |
| 6 | 700281 | Hexagon screw M12x55 DIN 933 8.8 zp | Enquire about this part |
| 6 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 7 | 2072410202 | Flanged bush | Enquire about this part |
| 8 | 625626 | Draw tube welded 90 S/3 | View 625626 |
| 9 | 2072410206 | Flanged bush | Enquire about this part |
| 10 | 2072410207 | Damping rubber | View 2072410207 |
| 11 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 12 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 13 | 647287 | Rivet | Enquire about this part |
| 14 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 15 | 2073890606 | Fork head welded | Enquire about this part |
| 16 | 2076810609 | Bolt half-round | Enquire about this part |
| 17 | 2075020601 | Spring cylinder cpl. | View 2075020601 |
| 18 | 2076830608 | Tension bracket | View 2076830608 |
| 19 | 354238 | Deflection lever cpl. iH=90:27 | Enquire about this part |
| 20 | ETK0002 | Housing | Enquire about this part |
| 21 | 368820 | End stop plate | Enquire about this part |
| 22 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 23 | 700273 | Washer 17 DIN 433 | Enquire about this part |
| 24 | 2077710503 | Bearing screw M12x100 Ø16 | View 2077710503 |
| 25 | 204549 | Hand brake lever incl. brake away cable | View 204549 |
| 27 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 28 | 2073890210 | Bellows | View 2073890210 |
| 29 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 30 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 31 | 705485 | Spring lock washer B12 DIN 127 | Enquire about this part |
| 33 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 33 | ETK0004 | Assembly clamp welded | Enquire about this part |
