AL-KO ETI 811187 – Overrun device square 100 161S
Looking for spare parts for AL-KO ETI 811187? Below you will find the technical exploded drawing and complete parts list for Overrun device square 100 161S.

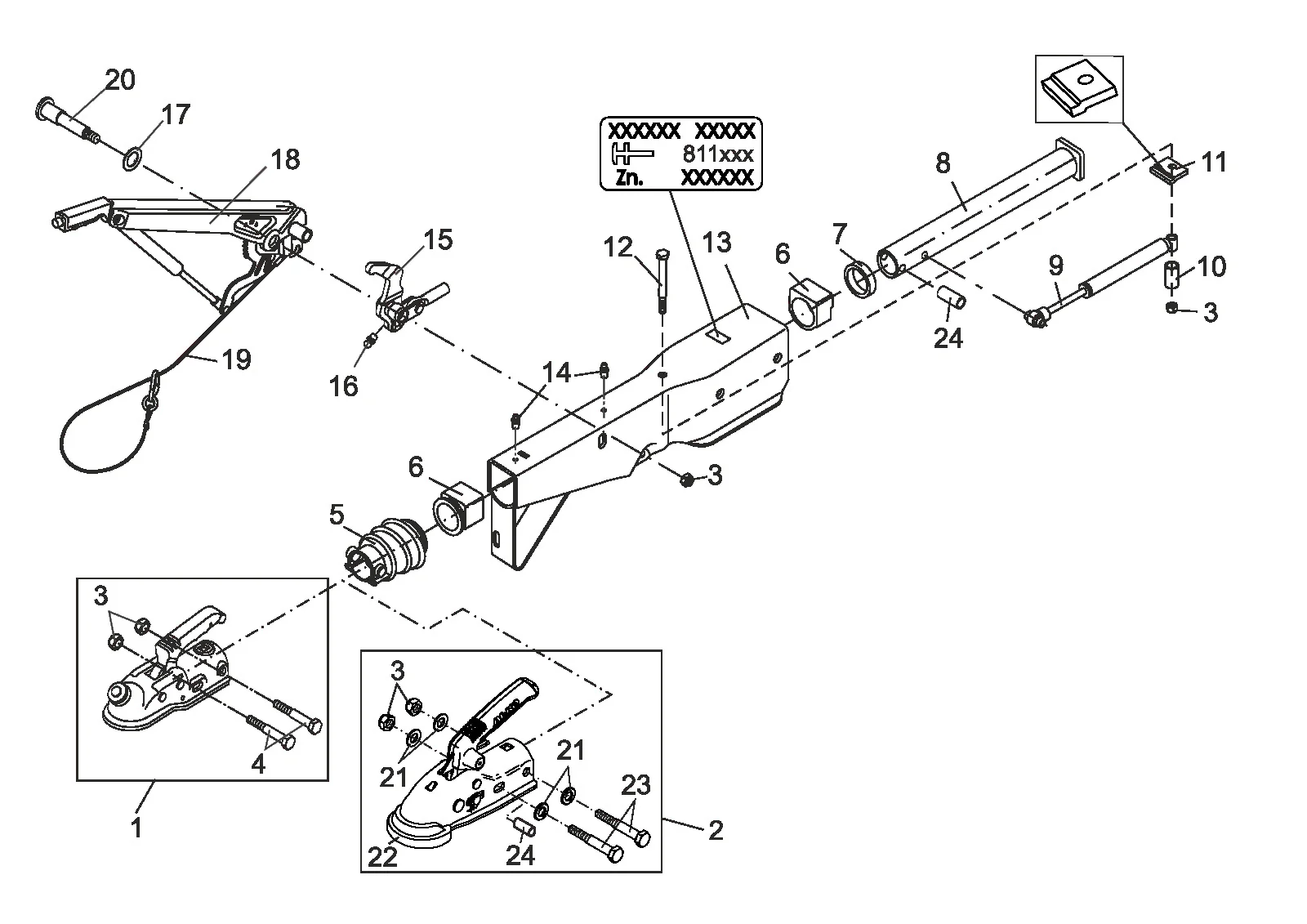

Exploded drawing
Technical drawing 811187
AL-KO ETI 811187
Technical details
AL-KO | square design | 161S | with gas spring lever | ball coupling and AKS
ETI number
811187
Parts
25
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811187
Use the position number from the exploded drawing to find the correct spare part.
25 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1222737 | Coupling AK160/B D50/45 with mounting parts | |
| 2 | 1730220 | Coupling AK161 with mounting parts + SAFETY-Kit | View 1730220 |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | |
| 5 | 366356 | Bellows | View 366356 |
| 6 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 7 | 371372 | Damping rubber | View 371372 |
| 8 | 571873 | Draw tube welded 161S | View 571873 |
| 9 | 370556 | Shock absorber 161S | View 370556 |
| 10 | 370580 | Distance bush | |
| 11 | 581699 | Stop plate | View 581699 |
| 12 | 705421 | Hexagon screw M12x100 DIN 931 8.8 | |
| 13 | ETK0002 | Housing | |
| 14 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | |
| 15 | 626632 | Deflection lever cpl. M10 iH=90:27 | |
| 15 | 626667 | Deflection lever cpl. M12 iH=90:27 | |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | |
| 17 | 370693 | Washer Ø19x34x3 | |
| 18 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 19 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 20 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 21 | 706459 | Washer 13 DIN 433 | |
| 22 | 693394 | Soft-dock black | View 693394 |
| 23 | 705422 | Hexagon screw M12x80 DIN 931 8.8 | |
| 24 | 370559 | Distance bush |
