AL-KO ETI 811167 – Axle EURO PLUS wheel brake 2361 B1600

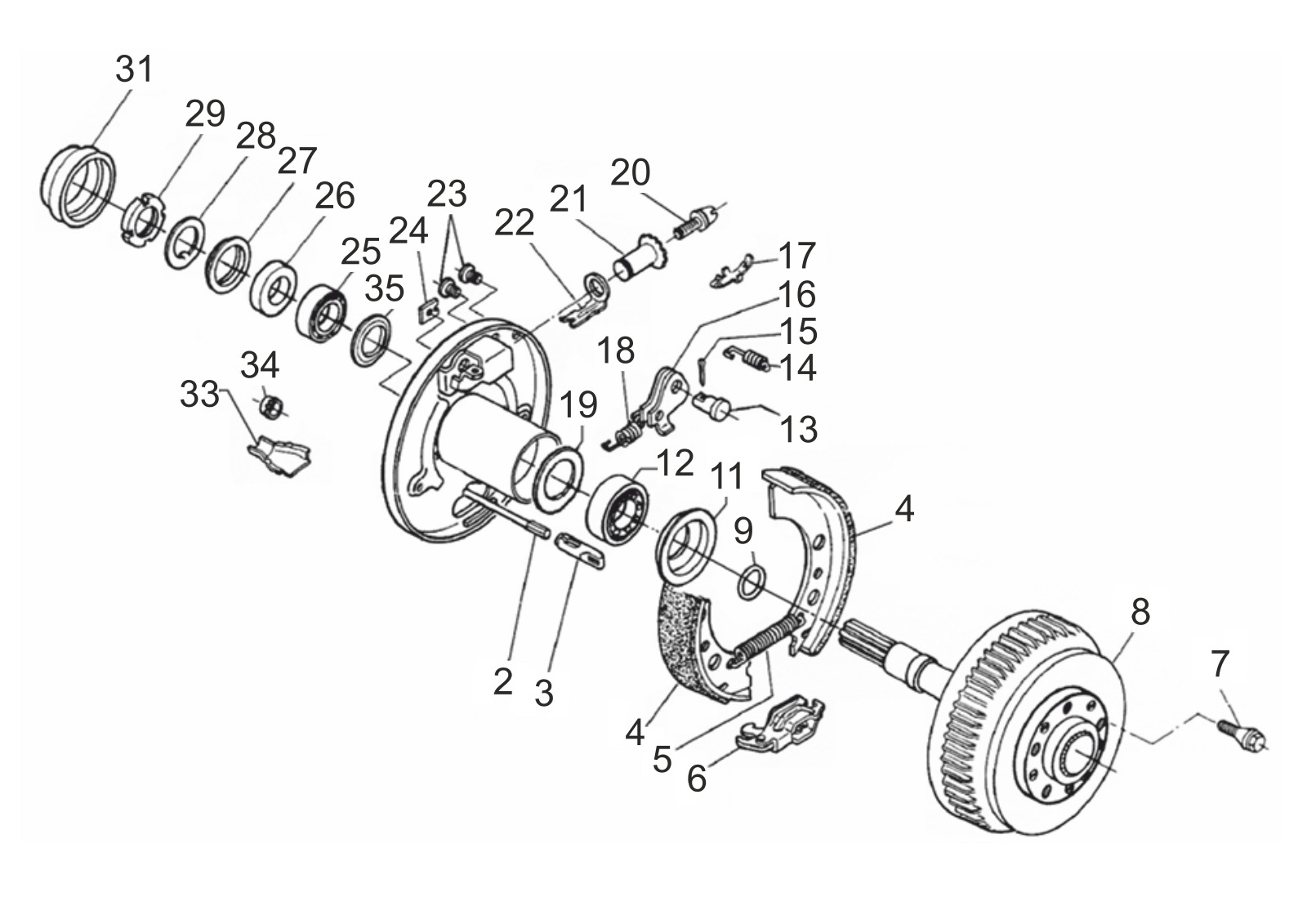

Looking for spare parts for AL-KO ETI 811167? Below you will find the technical exploded drawing and complete parts list for Axle EURO PLUS wheel brake 2361 B1600.
Go to parts listExploded drawing
Technical drawing 811167
AL-KO ETI 811167
Technical details
AL-KO | Rubber suspension braked | Drive | RB2361
ETI number
811167
Parts
41
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811167
Use the position number from the exploded drawing to find the correct spare part.
41 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 2 | 299707 | Bowden cable 350/560 long PROFI LONG LIFE | Enquire about this part |
| 2 | 299708 | Bowden cable 530/740 long PROFI LONG LIFE | View 299708 |
| 2 | 299709 | Bowden cable 770/980 long PROFI LONG LIFE | View 299709 |
| 2 | 299710 | Bowden cable 890/1100 long PROFI LONG LIFE | View 299710 |
| 2 | 299711 | Bowden cable 1020/1230 long PROFI LONG LIFE | View 299711 |
| 2 | 299712 | Bowden cable 1130/1340 long PROFI LONG LIFE | View 299712 |
| 2 | 299713 | Bowden cable 1320/1530 long PROFI LONG LIFE | View 299713 |
| 2 | 299714 | Bowden cable 1430/1640 long PROFI LONG LIFE | View 299714 |
| 2 | 299715 | Bowden cable 1620/1830 long PROFI LONG LIFE | View 299715 |
| 2 | 299716 | Bowden cable 1790/2000 long PROFI LONG LIFE | View 299716 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 1213890 | Set brake jaw 2360/2361 | View 1213890 |
| 5 | 2082000007 | Tension spring | View 2082000007 |
| 6 | 571510 | Spread hinge lock cpl. 2051/2361 | View 571510 |
| 7 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 7 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 7 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 8 | 574394 | Brake drum cpl. 2361 drive | Enquire about this part |
| 9 | 589434 | O-ring 28,10x1,00 B-NBR70 DIN 3771 | Enquire about this part |
| 11 | 700272 | Rotary shaft lip seal AS 42x62x7 DIN 3760-NB | View 700272 |
| 12 | 700261 | Tapered roller bearing 32007 xDIN 720 | Enquire about this part |
| 13 | 368651 | Bearing bolt | Enquire about this part |
| 14 | 2088800003 | Compression spring | Enquire about this part |
| 15 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 16 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 17 | 368405 | Compound spring | View 368405 |
| 18 | 2187370003 | Tension spring | View 2187370003 |
| 19 | 2382970004 | Sealing washer Ø62xØ35 | Enquire about this part |
| 20 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 22 | 368361 | Bow pressure | View 368361 |
| 23 | 373245 | Plug RAL6002 | View 373245 |
| 24 | 2382610002 | Cover plate | Enquire about this part |
| 25 | 700259 | Tapered roller bearing 30206 DIN 720 | Enquire about this part |
| 26 | 603822 | Bush | Enquire about this part |
| 27 | 703358 | Rotary shaft lip seal 25x47x7 NB | Enquire about this part |
| 28 | 702688 | Lock washer 28 DIN 462 VZ | Enquire about this part |
| 29 | 702806 | Slotted nut M 28x1,5 DIN 1804-W A3C | Enquire about this part |
| 31 | 603824 | Cap | Enquire about this part |
| 33 | 371387 | Brake cable shell | Enquire about this part |
| 34 | 371389 | Protective cap | Enquire about this part |
| 35 | 2382970003 | Sealing washer | Enquire about this part |
