AL-KO ETI 811161 – Wheel brake 3081A
Looking for spare parts for AL-KO ETI 811161? Below you will find the technical exploded drawing and complete parts list for Wheel brake 3081A.

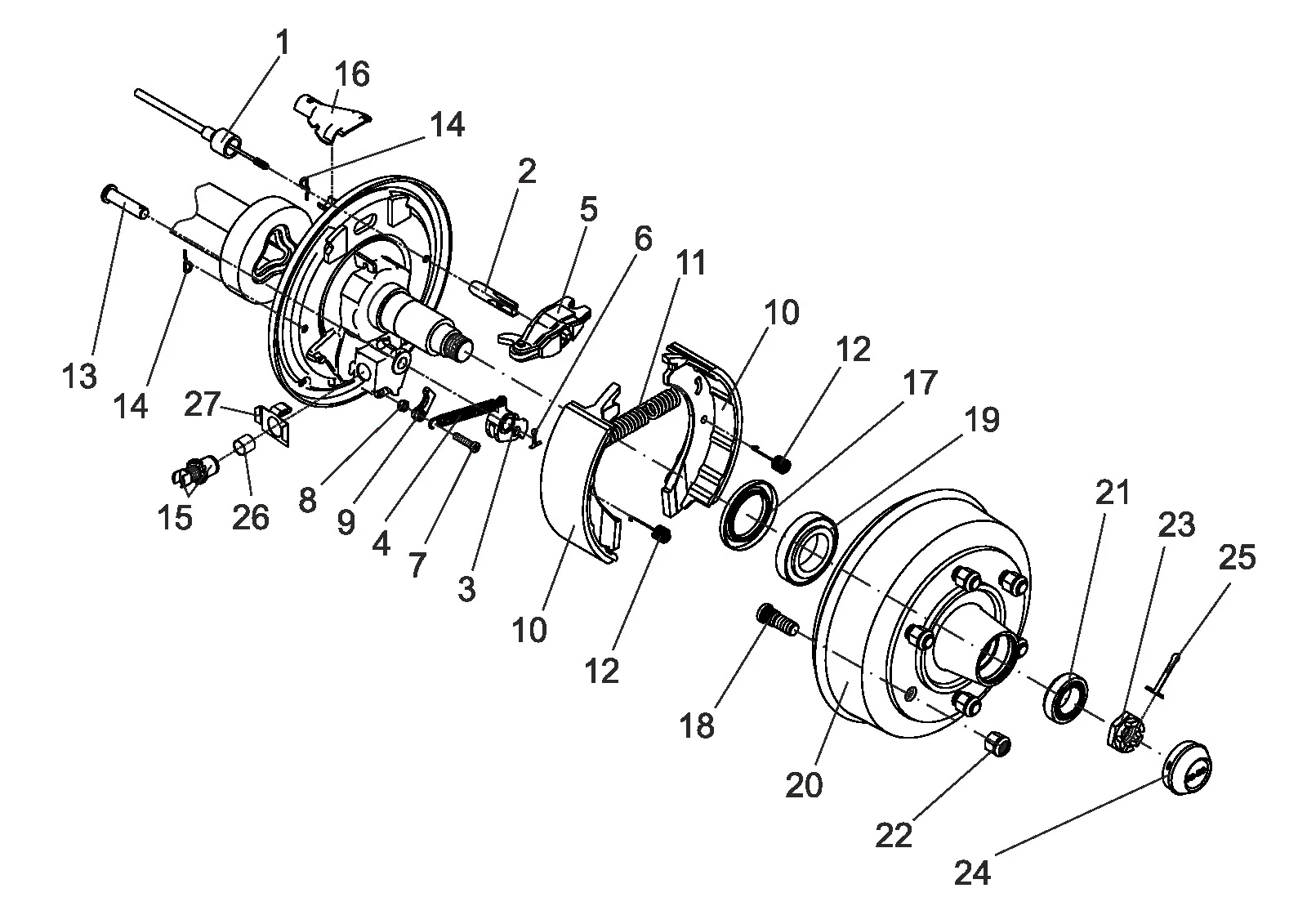

Exploded drawing
Technical drawing 811161
AL-KO ETI 811161
Technical details
AL-KO | standard | 3081 | 1250 kg
ETI number
811161
Parts
38
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811161
Use the position number from the exploded drawing to find the correct spare part.
38 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 241106 | Bowden cable 500/760 long wheel brake 3062/3081 | |
| 1 | 241107 | Bowden cable 800/1060 long wheel brake 3062/3081 | |
| 1 | 241108 | Bowden cable 900/1160 long wheel brake 3062/3081 | |
| 1 | 241109 | Bowden cable 1000/1260 long wheel brake 3062/3081 | |
| 1 | 241110 | Bowden cable 1100/1360 long wheel brake 3062/3081 | |
| 1 | 241111 | Bowden cable 1300/1560 long wheel brake 3062/3081 | |
| 1 | 241112 | Bowden cable 1400/1660 long wheel brake 3062/3081 | |
| 2 | 372891 | Connection eye wheel brake 3081 | |
| 3 | 622296 | Auto reverse lever | |
| 4 | 372894 | Tension spring | |
| 5 | 385165 | Spread hinge lock cpl. | View 385165 |
| 6 | 700193 | Split pin 4x25 DIN 94 | |
| 7 | 371543 | Screw M8x35 DIN 7984 | |
| 8 | 705383 | hexnut M8 DIN 985-8 | |
| 9 | 368530 | Winch catch | |
| 10 | 1220333 | Set brake jaw for one axle Achse 3081 | View 1220333 |
| 11 | 355833 | Tension spring left | |
| 11 | 2589250004 | Tension spring right | |
| 12 | 372895 | Compression spring | |
| 13 | 706520 | Bolt B16 H11x65X59,0 EN2341 | |
| 14 | 372913 | Spring bow | |
| 15 | 646155 | Regulation unit wheel brake 3062/3081 | |
| 16 | 372890 | Shell | |
| 17 | 702126 | Rotary shaft lip seal AS 65x100x10 DIN 3760-NB | |
| 18 | 2081670002 | Wheel bolt sperical M14x1,5 x25 | |
| 18 | 2487940005 | Wheel stud M18x1,5 x58 | |
| 19 | 701774 | Tapered roller bearing 30211 DIN 720 | |
| 20 | 691486 | Bremstrommel kpl. mit Lager und Radbolzen Ø205x6 | View 691486 |
| 20 | 1368408 | Bremstrommel kpl. mit Lager Ø130x5 M14x1,5 | |
| 20 | 1368409 | Bremstrommel kpl. mit Lager Ø140x5 M14x1,5 | |
| 20 | 1368410 | Bremstrommel kpl. mit Lager Ø165,1x5 M14x1,5 | |
| 21 | 702125 | Tapered roller bearing 32008 xDIN 720 | |
| 22 | 701202 | Wheel nut DIN 74361-A18- 8 A3B (M18x1,5) | |
| 23 | 706286 | Castle nut M33X1,5 DIN 937 | |
| 24 | 368527 | End cap Ø70 | View 368527 |
| 25 | 700856 | Split pin 6,3x63 DIN 94 | |
| 26 | 368535 | Bush | |
| 27 | 358259 | Securing part |
