AL-KO ETI 811153C – Drawbar Profile cpl. 163VB
Looking for spare parts for AL-KO ETI 811153C? Below you will find the technical exploded drawing and complete parts list for Drawbar Profile cpl. 163VB.
Go to parts listExploded drawing

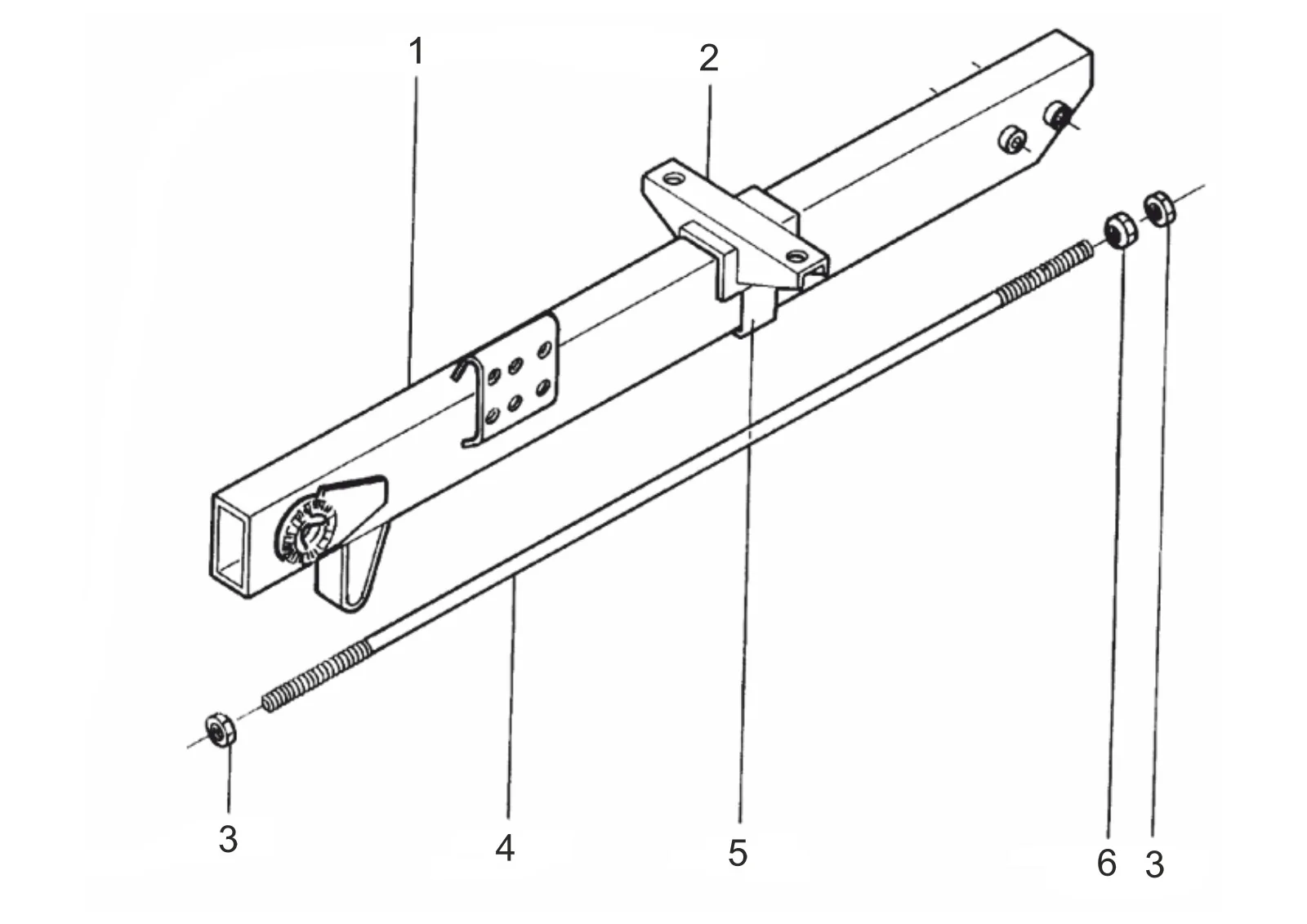

Technical drawing 811153C
AL-KO ETI 811153C
Technical details
AL-KO | square tube | 163VB
ETI number
811153C
Parts
6
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811153C
Use the position number from the exploded drawing to find the correct spare part.
6 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0022 | Drawbar | Enquire about this part |
| 2 | 387297 | Support frame welded square 80 galvanized | Enquire about this part |
| 3 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 4 | ETK0006 | Linkage: Please specify the length and diameter | Enquire about this part |
| 5 | 1310285 | Clamping bracket for profile 80x140 | Enquire about this part |
| 6 | 2088890006 | Ball nut M10 35 mm long | View 2088890006 |
