AL-KO ETI 811144 – Overrun device type 251R/E tube Ø88,9X8,8
Looking for spare parts for AL-KO ETI 811144? Below you will find the technical exploded drawing and complete parts list for Overrun device type 251R/E tube Ø88,9X8,8.
Go to parts listExploded drawing

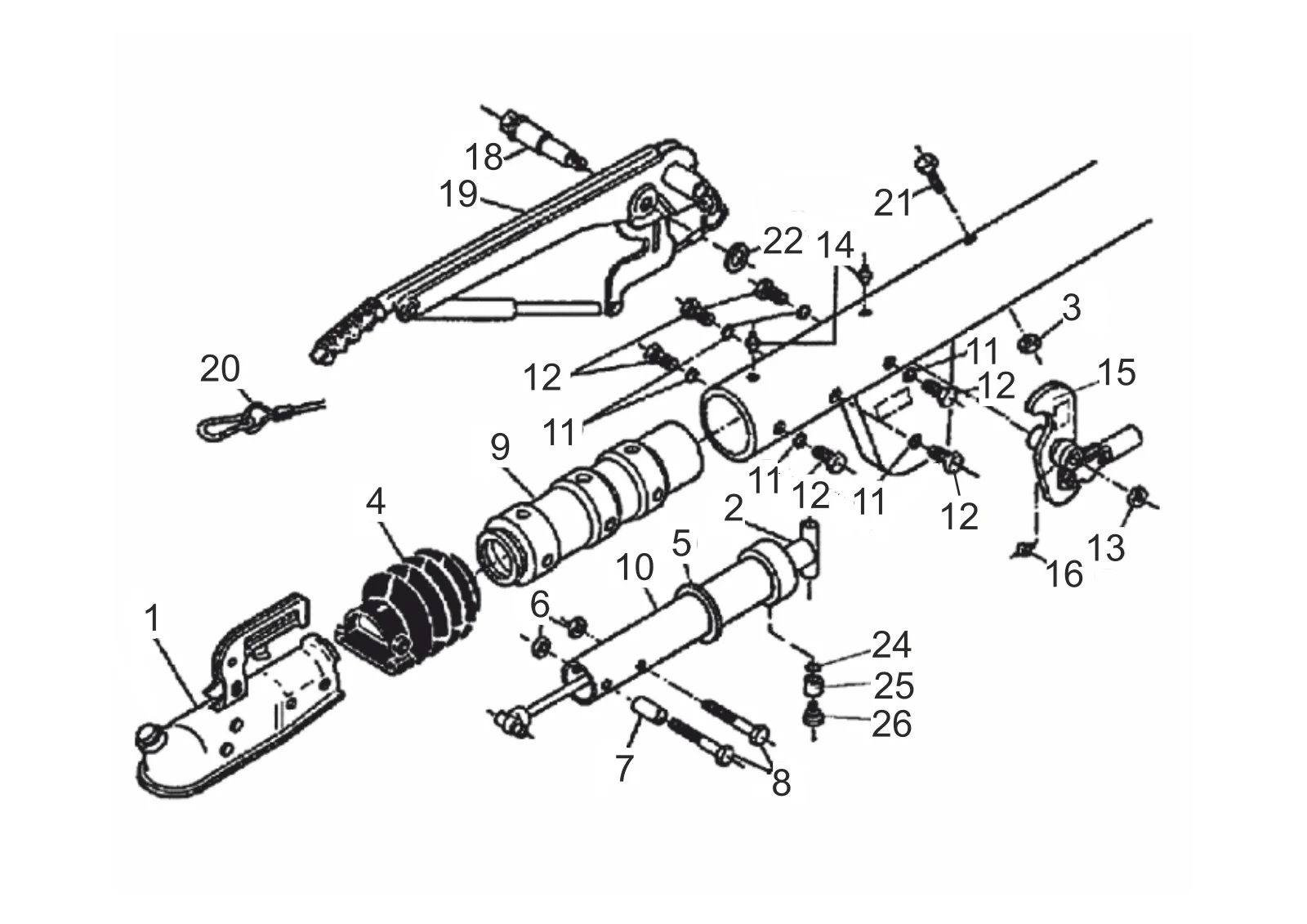

Technical drawing 811144
AL-KO ETI 811144
Technical details
AL-KO | pipe design | 251R | with gas spring lever | ball coupling
ETI number
811144
Parts
24
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811144
Use the position number from the exploded drawing to find the correct spare part.
24 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | Enquire about this part |
| 2 | 370589 | Shock absorber 251S | View 370589 |
| 3 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 7 | 357242 | Distance bush | Enquire about this part |
| 8 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 9 | 584508 | Bearing cartridge | Enquire about this part |
| 10 | 583049 | Draw tube 251R | Enquire about this part |
| 11 | 705544 | Serrated lock washer A10,5 DIN 6798 | Enquire about this part |
| 12 | 706237 | Hexagon screw M10x16 DIN 933 8.8 | Enquire about this part |
| 13 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 14 | 368461 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 15 | 380487 | Deflection lever cpl. UNI iH=90:27 | Enquire about this part |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 705420 | Hexagon screw M12x110 DIN 931 8.8 | Enquire about this part |
| 22 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 24 | 706477 | Serrated lock washer A8,4 DIN 6798 | Enquire about this part |
| 25 | 583043 | Bush | Enquire about this part |
| 26 | 583042 | Bearing screw at drawing | Enquire about this part |
