AL-KO ETI 811141 – Overrun device V 90S/3

Looking for spare parts for AL-KO ETI 811141? Below you will find the technical exploded drawing and complete parts list for Overrun device V 90S/3.

ETI number: 811141 23 parts

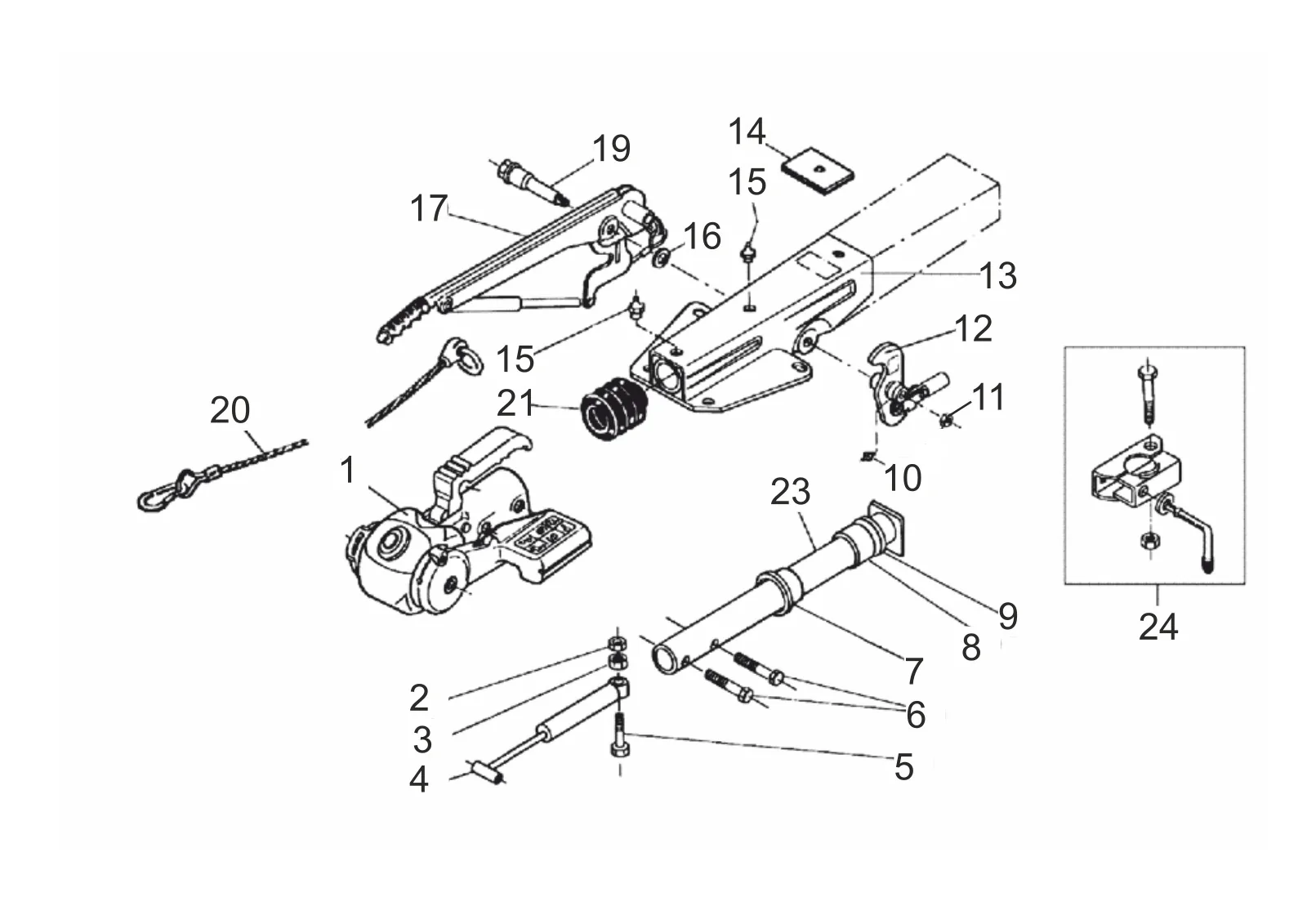

Exploded drawing

Technical drawing 811141

AL-KO ETI 811141

AL-KO | V-design | 90S/3 | with gas spring lever | ball coupling and AKS

ETI number

811141

Parts

Match the position number in the drawing with the parts list. Available products can be viewed directly.

Spare parts

Use the position number from the exploded drawing to find the correct spare part.

23 parts

Pos.	Article number	Description
1	ETK0001	Ball coupling	Enquire about this part
2	700644	hexnut M10 DIN 980-V-10 ZP	Enquire about this part
3	705378	Hexnut M10 DIN 934-8	View 705378→
4	359987	Shock absorber 90S/1/S2/S3	View 359987→
5	706312	Hexagon screw M10x50 DIN 931 8.8	Enquire about this part
6	701249	Hexagon screw M12x75 DIN 931 8.8 zp	Enquire about this part
7	2072410202	Flanged bush	Enquire about this part
8	2072410206	Flanged bush	Enquire about this part
9	2072410207	Damping rubber	View 2072410207→
10	700203	Conical grease nipple AS 6x1 DIN 71412	Enquire about this part
11	700645	hexnut M12 DIN 980-V-10 ZP	View 700645→
12	384760	Deflection lever cpl. 90S/3 iH=90:27	Enquire about this part
13	ETK0002	Housing	Enquire about this part
14	368820	End stop plate	Enquire about this part
15	2171710001	Conical grease nipple AS 8x1 DIN 71412	Enquire about this part
16	370693	Washer Ø19x34x3	Enquire about this part
17	220095	Hand brake lever incl. brake away cable	Enquire about this part
19	581146	Bearing screw M12x108	Enquire about this part
20	380843	Breakaway cable with burst ring	Enquire about this part
21	2073890210	Bellows	View 2073890210→
22	700645	hexnut M12 DIN 980-V-10 ZP	View 700645→
23	384654	Draw tube welded	View 384654→
24	ETK0004	Assembly clamp welded	Enquire about this part
