AL-KO ETI 811134 – Wheel brake EURO PLUS 1637
Looking for spare parts for AL-KO ETI 811134? Below you will find the technical exploded drawing and complete parts list for Wheel brake EURO PLUS 1637.

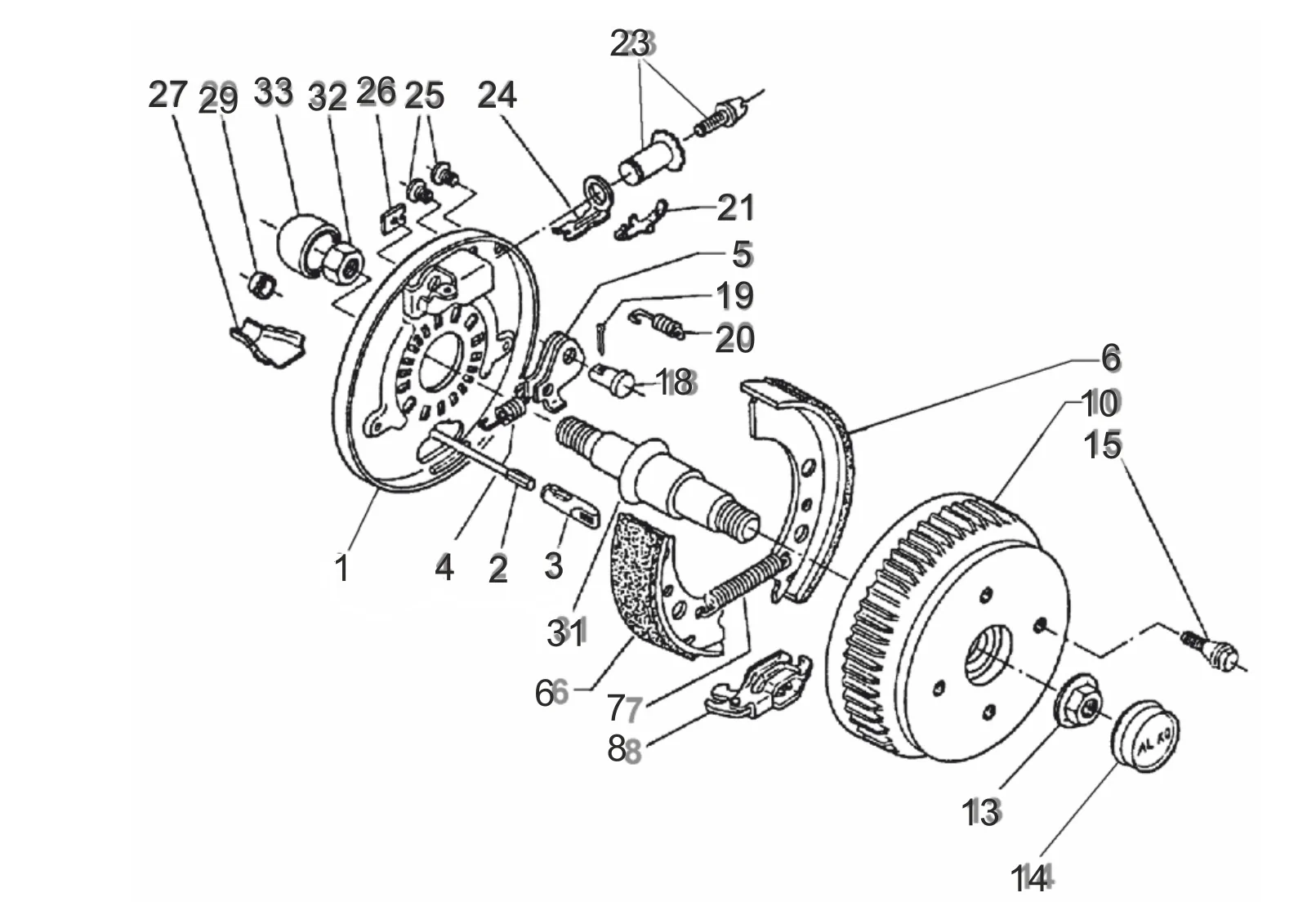

Exploded drawing
Technical drawing 811134
AL-KO ETI 811134
Technical details
AL-KO | EURO Plus | 1637 | 450 kg
ETI number
811134
Parts
42
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811134
Use the position number from the exploded drawing to find the correct spare part.
42 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 571950 | Braking plate welded left | View 571950 |
| 1 | 571951 | Braking plate welded right | View 571951 |
| 2 | 299707 | Bowden cable PROFI LONG LIFE 350/560 | Enquire about this part |
| 2 | 299708 | Bowden cable PROFI LONG LIFE 530/740 | View 299708 |
| 2 | 299709 | Bowden cable PROFI LONG LIFE 770/980 | View 299709 |
| 2 | 299710 | Bowden cable PROFI LONG LIFE 890/1100 | View 299710 |
| 2 | 299711 | Bowden cable PROFI LONG LIFE 1020/1230 | View 299711 |
| 2 | 299712 | Bowden cable PROFI LONG LIFE 1130/1340 | View 299712 |
| 2 | 299713 | Bowden cable PROFI LONG LIFE 1320/1530 | View 299713 |
| 2 | 299714 | Bowden cable PROFI LONG LIFE 1430/1640 | View 299714 |
| 2 | 299715 | Bowden cable PROFI LONG LIFE 1620/1830 | View 299715 |
| 2 | 299716 | Bowden cable PROFI LONG LIFE 1790/2000 | View 299716 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 372805 | Tension spring right | View 372805 |
| 4 | 2188870001 | Tension spring left | View 2188870001 |
| 5 | 384308 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 384309 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213888 | Set brake shoe for one axle 1635/1636/1637 | Enquire about this part |
| 7 | 2182150003 | Tension spring | View 2182150003 |
| 8 | 570666 | Expanding joint lock compl. | Enquire about this part |
| 10 | 573188 | Brake drum compl. 98x4-M12x1.5 | Enquire about this part |
| 10 | 1932105 | Spare parts set brake drum 1637 cpl. with bearing; 100x4 - M12x1,5 | View 1932105 |
| 10 | 1224800 | Spare parts set bearing (Ø60/Ø30/37) wheel brake 1637 | View 1224800 |
| 10 | 1932106 | Spare parts set brake drum 1637 cpl. with bearing; 112x5 - M12x1,5 | View 1932106 |
| 13 | 581200 | Flange nut M24x1.5 | View 581200 |
| 14 | 581197 | Sealing cap Ø57 | View 581197 |
| 15 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 18 | 368651 | Bearing bolt | Enquire about this part |
| 19 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 20 | 2088800003 | Compression spring | Enquire about this part |
| 21 | 581879 | Compound spring | Enquire about this part |
| 23 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 24 | 581878 | Bow pressure | Enquire about this part |
| 25 | 373245 | Plug RAL6002 | View 373245 |
| 26 | 2382610002 | Cover plate | Enquire about this part |
| 27 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 29 | 371389 | Protective cap | Enquire about this part |
| 31 | 581563 | Stub axle Ø30 bend 0° | Enquire about this part |
| 32 | 702881 | Hexagon lock nut M24 according to drawing | View 702881 |
| 33 | 604472 | Protective cap M24 | Enquire about this part |
