AL-KO ETI 811096 – Overrun device V 161S
Looking for spare parts for AL-KO ETI 811096? Below you will find the technical exploded drawing and complete parts list for Overrun device V 161S.
Go to parts listExploded drawing

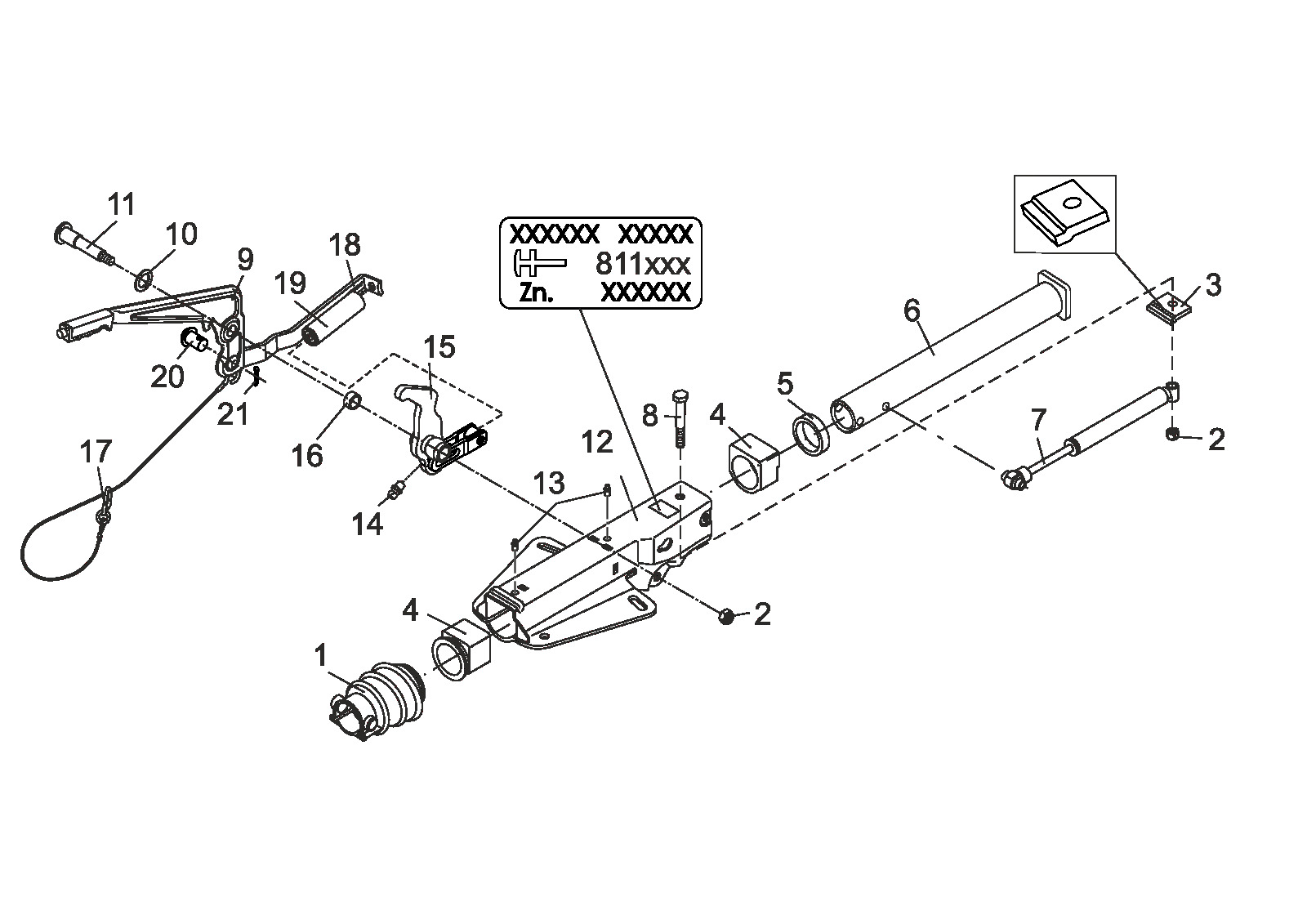

Technical drawing 811096
AL-KO ETI 811096
Technical details
AL-KO | V-design | 161S | spring load memory | without ball coupling parts
ETI number
811096
Parts
22
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811096
Use the position number from the exploded drawing to find the correct spare part.
22 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 366356 | Bellows | View 366356 |
| 2 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 3 | 581699 | Stop plate | View 581699 |
| 4 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 571874 | Draw tube welded 251S | View 571874 |
| 7 | 370557 | Shock absorber 161S | View 370557 |
| 8 | 700312 | Hexagon screw M12x90 DIN 931 8.8 zp | View 700312 |
| 9 | 204549 | Hand brake lever incl. brake away cable | View 204549 |
| 10 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 11 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 12 | ETK0002 | Housing | Enquire about this part |
| 13 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 14 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 15 | 380265 | Deflection lever cpl. iH=90:27 | View 380265 |
| 15 | 380285 | Deflection lever cpl. iH=90:30 | Enquire about this part |
| 16 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 17 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 18 | 2170110608 | Tension bracket | Enquire about this part |
| 19 | 2075020601 | Spring cylinder cpl. | View 2075020601 |
| 20 | 2076810609 | Bolt half-round | Enquire about this part |
| 21 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
