AL-KO ETI 811079 – Overrun device V 251S
Looking for spare parts for AL-KO ETI 811079? Below you will find the technical exploded drawing and complete parts list for Overrun device V 251S.

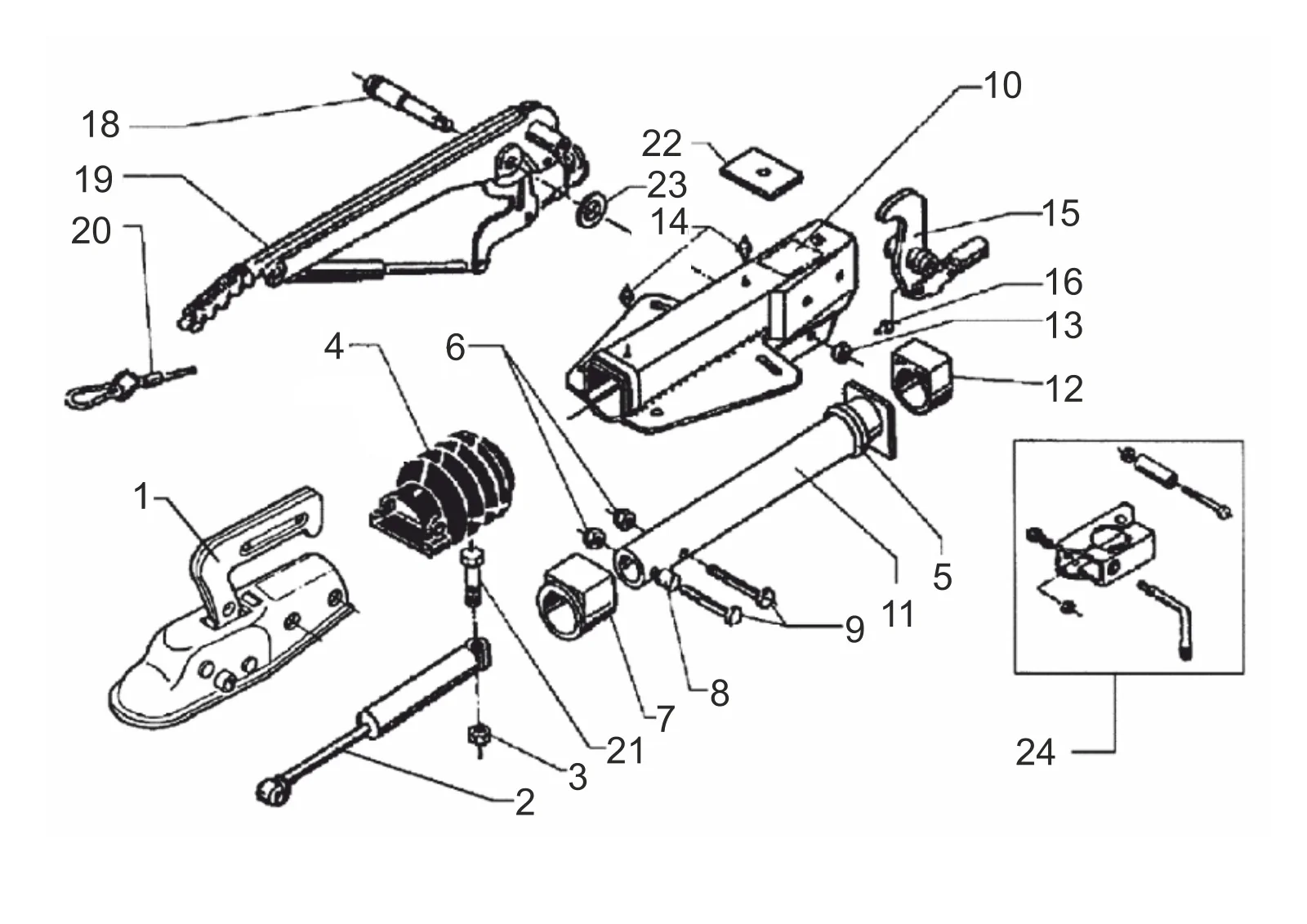

Exploded drawing
Technical drawing 811079
AL-KO ETI 811079
Technical details
AL-KO | V-design | 251S | design sweden | ball coupling
ETI number
811079
Parts
24
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811079
Use the position number from the exploded drawing to find the correct spare part.
24 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | |
| 2 | 355338 | Shock absorber 251S Sweden | View 355338 |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 353943 | Flanged bush | |
| 8 | 357242 | Distance bush | |
| 9 | 705422 | Hexagon screw M12x80 DIN 931 8.8 | |
| 10 | ETK0002 | Housing | |
| 11 | 385286 | Draw tube welded 161S | |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 13 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 14 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | |
| 15 | 384655 | Deflection lever cpl. iH=90:27 | View 384655 |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | |
| 17 | 2043700102 | Burst ring hand brake lever | |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220104 | Hand brake lever incl. brake away cable | |
| 20 | 209385 | Breakaway cable 980 mm length sweden | |
| 21 | 700312 | Hexagon screw M12x90 DIN 931 8.8 zp | View 700312 |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 706081 | Washer A 17 DIN 125-ST | |
| 24 | 293020 | Jockey whell clamp for tube Ø48 161/251 | View 293020 |
