AL-KO ETI 811076 – Overrun device V 2,8VB/1-C valid until 09/95
Looking for spare parts for AL-KO ETI 811076? Below you will find the technical exploded drawing and complete parts list for Overrun device V 2,8VB/1-C valid until 09/95.
Go to parts listExploded drawing

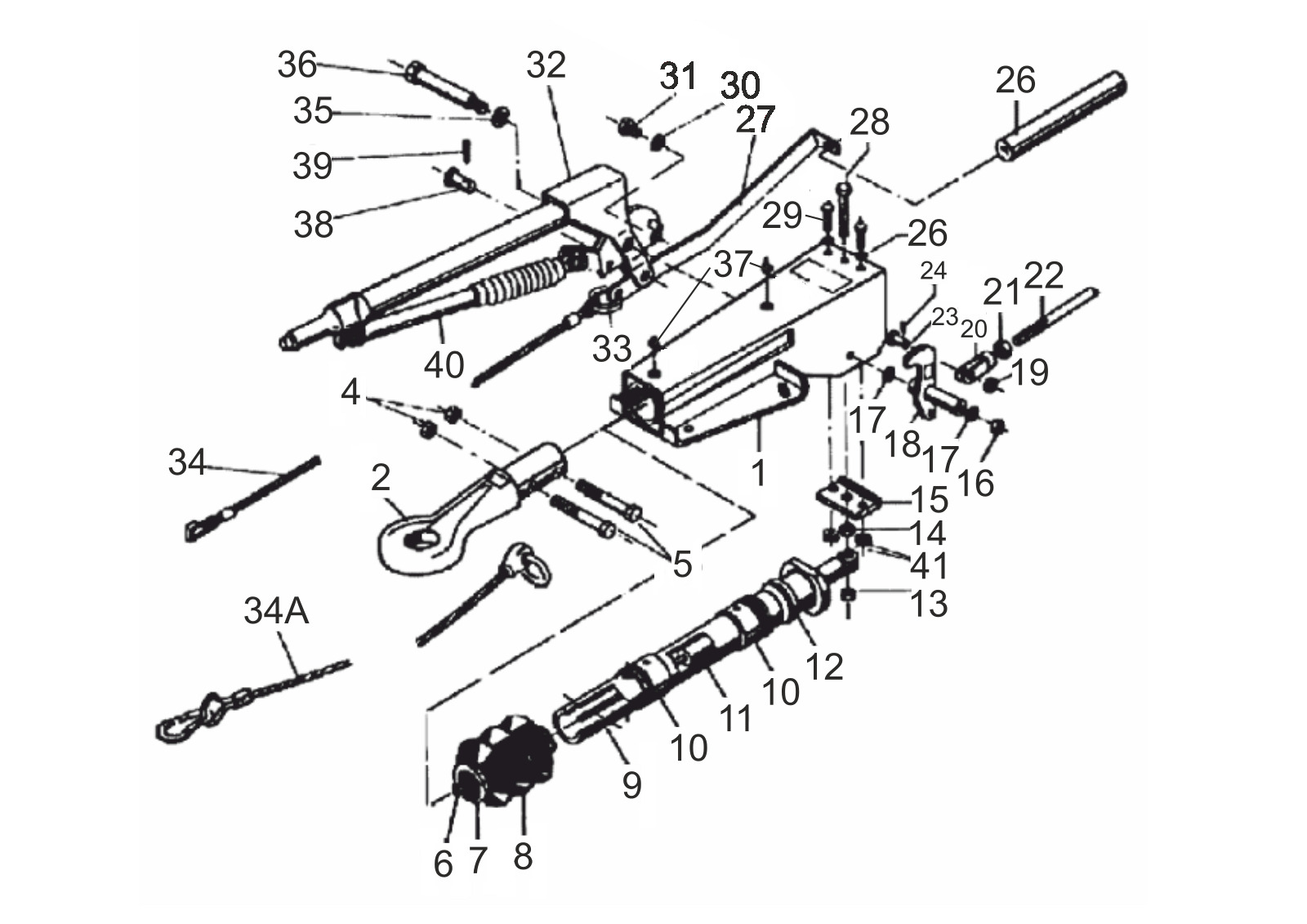

Technical drawing 811076
AL-KO ETI 811076
Technical details
AL-KO | V-design | 2,8VB/1-C | with gas spring lever | drawbar eye
ETI number
811076
Parts
43
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811076
Use the position number from the exploded drawing to find the correct spare part.
43 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | Enquire about this part |
| 2 | 357374 | Drawbar eye DIN Ø40 | Enquire about this part |
| 2 | 357391 | Drawbar eye NATO Ø76 | Enquire about this part |
| 4 | 706013 | hexnut M16 DIN 985-10 | Enquire about this part |
| 5 | 706349 | Hexagon screw M16x80 DIN 931 8.8 | Enquire about this part |
| 6 | 702205 | Hexnut M10X1,0 DIN 439-B-04 | Enquire about this part |
| 7 | 701422 | Cable tie 360x4,8 black | Enquire about this part |
| 8 | 21726605 | Bellows | View 21726605 |
| 9 | 354263 | Draw tube welded with 2 drillings | View 354263 |
| 10 | 2172660004 | Bearing bush | View 2172660004 |
| 11 | 21726604 | Shock absorber 2,8VB/351Z | View 21726604 |
| 12 | 2172660003 | Damping rubber | View 2172660003 |
| 13 | 706508 | hexnut M14 DIN 980-V-10 | Enquire about this part |
| 14 | 701549 | Hexnut M14 DIN 439-B-04 | Enquire about this part |
| 15 | 21783404 | End stop plate (until May 2007) | Enquire about this part |
| 16 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 17 | 2075750006 | Washer polyamid | Enquire about this part |
| 18 | 354264 | Deflection lever cpl. iH=90:32 | View 354264 |
| 18 | 387959 | Deflection lever cpl. iH=90:35,5 | Enquire about this part |
| 19 | 700215 | Washer 12 DIN 1440 | Enquire about this part |
| 20 | 21783407 | Fork head welded | Enquire about this part |
| 21 | 705379 | Hexnut M12 DIN 934-8 | Enquire about this part |
| 22 | ETK0006 | Linkage: Please specify the length and diameter | Enquire about this part |
| 23 | 701566 | Bolt B12 H11x40X34,5 EN22341 VZ | Enquire about this part |
| 24 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 25 | 21783408 | Spring cylinder cpl. | View 21783408 |
| 26 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 27 | 353137 | Tension bracket welde hot dipped | Enquire about this part |
| 28 | 706287 | Hexagon screw M14x80 DIN 933 8.8 | Enquire about this part |
| 29 | 700704 | Hexagon screw M10x30 DIN 933 8.8 zp | Enquire about this part |
| 30 | 700130 | Spring lock washer B12 DIN 127 ZP | Enquire about this part |
| 31 | 700460 | Hexagon screw M12x25 DIN 933 8.8 zp | Enquire about this part |
| 32 | 220118 | Hand brake lever 2,8 VB/1 incl. brake away cable | Enquire about this part |
| 33 | 2043700102 | Burst ring hand brake lever | Enquire about this part |
| 34 | 209385 | Breakaway cable 980 mm length sweden | Enquire about this part |
| 34A | 380843 | Breakaway cable with burst ring | Enquire about this part |
| 35 | 700130 | Spring lock washer B12 DIN 127 ZP | Enquire about this part |
| 36 | 21783406 | Bearing bolt | View 21783406 |
| 37 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 38 | 358533 | Bolt | View 358533 |
| 39 | 705487 | Split pin 3,2x20 DIN 94 | Enquire about this part |
| 40 | 353188 | Gas spring GF14/7-676710/14-2000 | View 353188 |
| 41 | 700644 | hexnut M10 DIN 980-V-10 ZP | Enquire about this part |
