AL-KO ETI 811069 – Overrun device V/square 100S
Looking for spare parts for AL-KO ETI 811069? Below you will find the technical exploded drawing and complete parts list for Overrun device V/square 100S.
Go to parts listExploded drawing

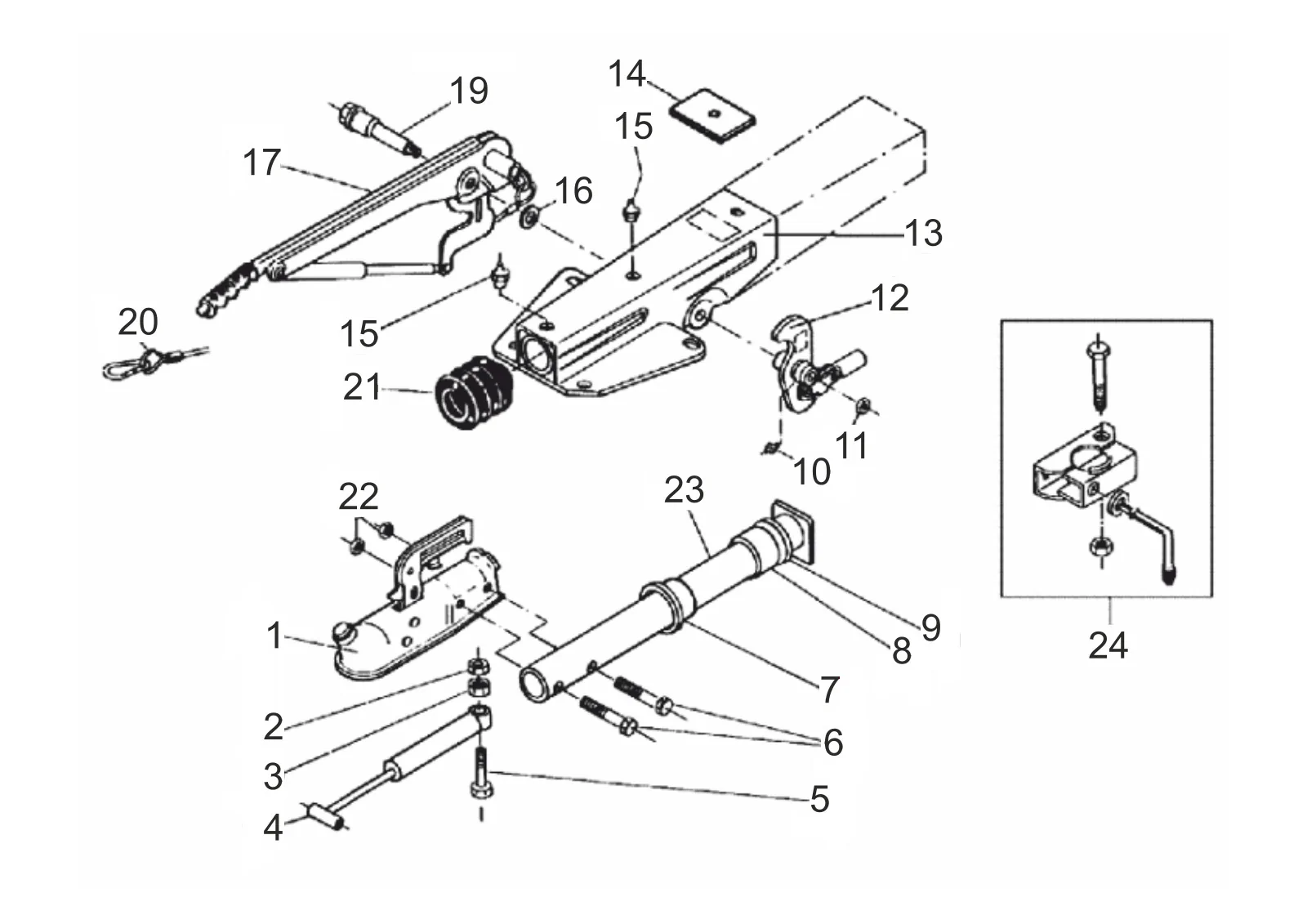

Technical drawing 811069
AL-KO ETI 811069
Technical details
AL-KO | V-design | 100S | with gas spring lever | ball coupling
ETI number
811069
Parts
30
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811069
Use the position number from the exploded drawing to find the correct spare part.
30 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | Enquire about this part |
| 2 | 700644 | hexnut M10 DIN 980-V-10 ZP | Enquire about this part |
| 3 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 4 | 20769004 | Shock absorber 75S/100S | Enquire about this part |
| 5 | 706312 | Hexagon screw M10x50 DIN 931 8.8 | Enquire about this part |
| 6 | 700281 | Hexagon screw M12x55 DIN 933 8.8 zp | Enquire about this part |
| 7 | 700918 | Sleeve bering bush GLY PG 404450 A | Enquire about this part |
| 8 | 700918 | Sleeve bering bush GLY PG 404450 A | Enquire about this part |
| 9 | 2077030202 | Damping rubber | View 2077030202 |
| 10 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 11 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 12 | 384760 | Deflection lever cpl. 90S/3 iH=90:27 | Enquire about this part |
| 13 | ETK0002 | Housing | Enquire about this part |
| 14 | 2074550204 | End stop plate | Enquire about this part |
| 15 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 16 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 17 | 220100 | Hand brake lever incl. brake away cable 100S | Enquire about this part |
| 18 | 2043700102 | Burst ring hand brake lever | Enquire about this part |
| 19 | 581146 | Bearing screw M12x108 | Enquire about this part |
| 20 | 209385 | Breakaway cable 980 mm length sweden | Enquire about this part |
| 21 | 2073890210 | Bellows | View 2073890210 |
| 22 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 23 | 354211 | Draw tube welded | Enquire about this part |
| 24 | 354248 | Handle cpl. Replaced by 610561 | Enquire about this part |
| 24 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 24 | 705498 | Hexagon screw M8x65 DIN 931 8.8 | Enquire about this part |
| 24 | 20531703 | Clamp handle complete zinc coated | View 20531703 |
| 24 | 20531802 | Jockey wheel outer clamp | Enquire about this part |
| 24 | ETK0004 | Assembly clamp welded | Enquire about this part |
| 50 | 700643 | hexnut M8 DIN 980-V-8 ZP | Enquire about this part |
