AL-KO ETI 811066 – Overrun device square 70 90S/3
Looking for spare parts for AL-KO ETI 811066? Below you will find the technical exploded drawing and complete parts list for Overrun device square 70 90S/3.
Go to parts listExploded drawing

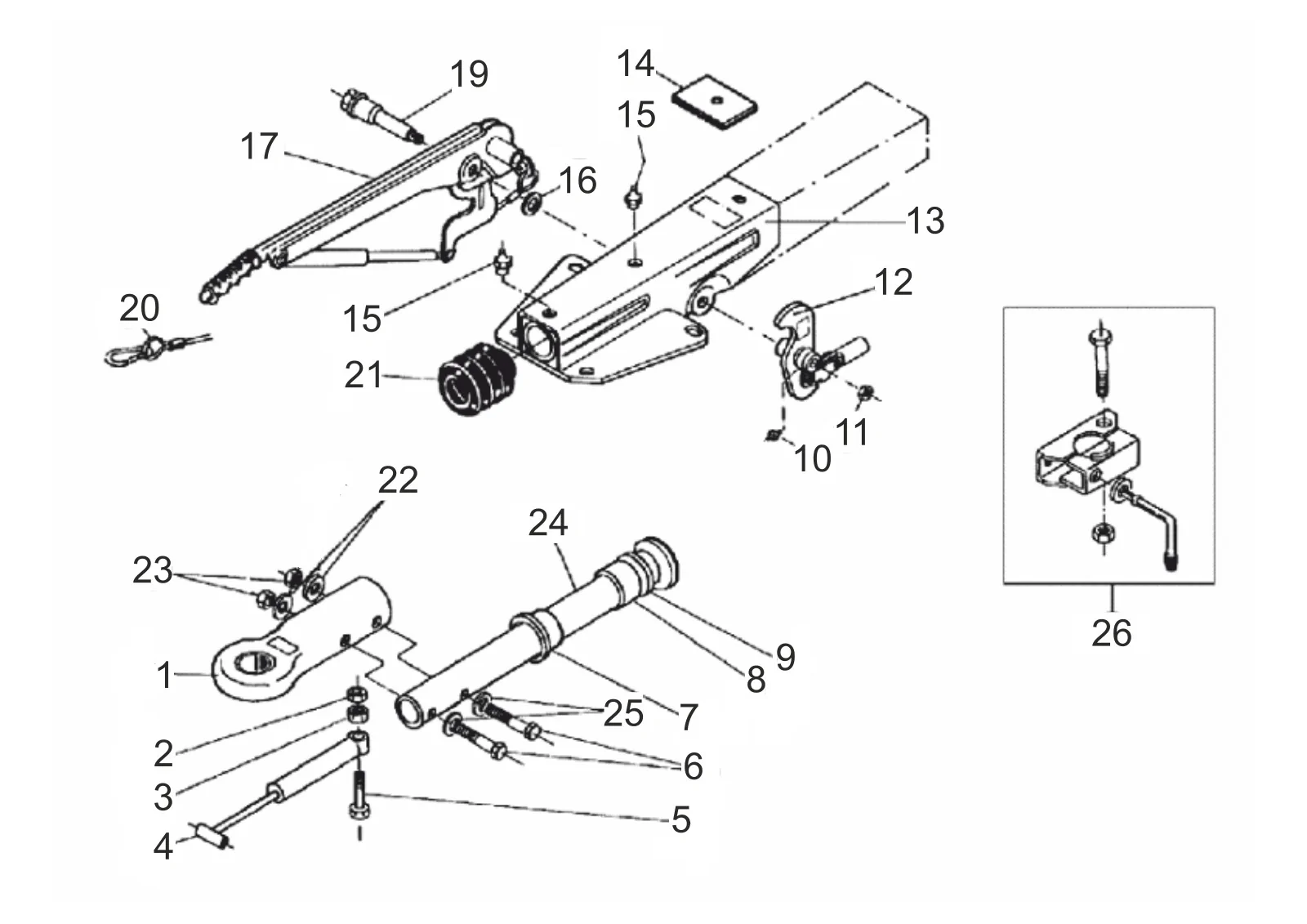

Technical drawing 811066
AL-KO ETI 811066
Technical details
AL-KO | square design | 90S/3 | with gas spring lever | drawbar eye
ETI number
811066
Parts
33
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811066
Use the position number from the exploded drawing to find the correct spare part.
33 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 217240 | Drawbar eye DIN Ø40 | Enquire about this part |
| 1 | 217241 | Drawbar eye NATO Ø76 | Enquire about this part |
| 1 | 217299 | Drawbar eye Frankreich | Enquire about this part |
| 2 | 700644 | hexnut M10 DIN 980-V-10 ZP | Enquire about this part |
| 3 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 4 | 359987 | Shock absorber 90S/1/S2/S3 | View 359987 |
| 5 | 701338 | Hexagon screw M10x60 DIN 933 8.8 zp | Enquire about this part |
| 6 | 700281 | Hexagon screw M12x55 DIN 933 8.8 zp | Enquire about this part |
| 7 | 2072410202 | Flanged bush | Enquire about this part |
| 8 | 2072410206 | Flanged bush | Enquire about this part |
| 9 | 2072410207 | Damping rubber | View 2072410207 |
| 10 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 11 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 12 | 384760 | Deflection lever cpl. 90S/3 iH=90:27 | Enquire about this part |
| 13 | ETK0002 | Housing | Enquire about this part |
| 14 | 368820 | End stop plate | Enquire about this part |
| 15 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 16 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 17 | 220094 | Handbremshebel inkl. Abreisseil 90S/3 | View 220094 |
| 19 | 581146 | Bearing screw M12x108 | Enquire about this part |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 2073890210 | Bellows | View 2073890210 |
| 22 | 705485 | Spring lock washer B12 DIN 127 | Enquire about this part |
| 23 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 24 | 387620 | Draw tube welded rotatable | Enquire about this part |
| 25 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 26 | 354248 | Handle cpl. Replaced by 610561 | Enquire about this part |
| 26 | 700643 | hexnut M8 DIN 980-V-8 ZP | Enquire about this part |
| 26 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 26 | 705498 | Hexagon screw M8x65 DIN 931 8.8 | Enquire about this part |
| 26 | 20531703 | Clamp handle complete zinc coated | View 20531703 |
| 26 | 20531802 | Jockey wheel outer clamp | Enquire about this part |
| 26 | ETK0004 | Assembly clamp welded | Enquire about this part |
