AL-KO ETI 811054 – Overrun device V 161S

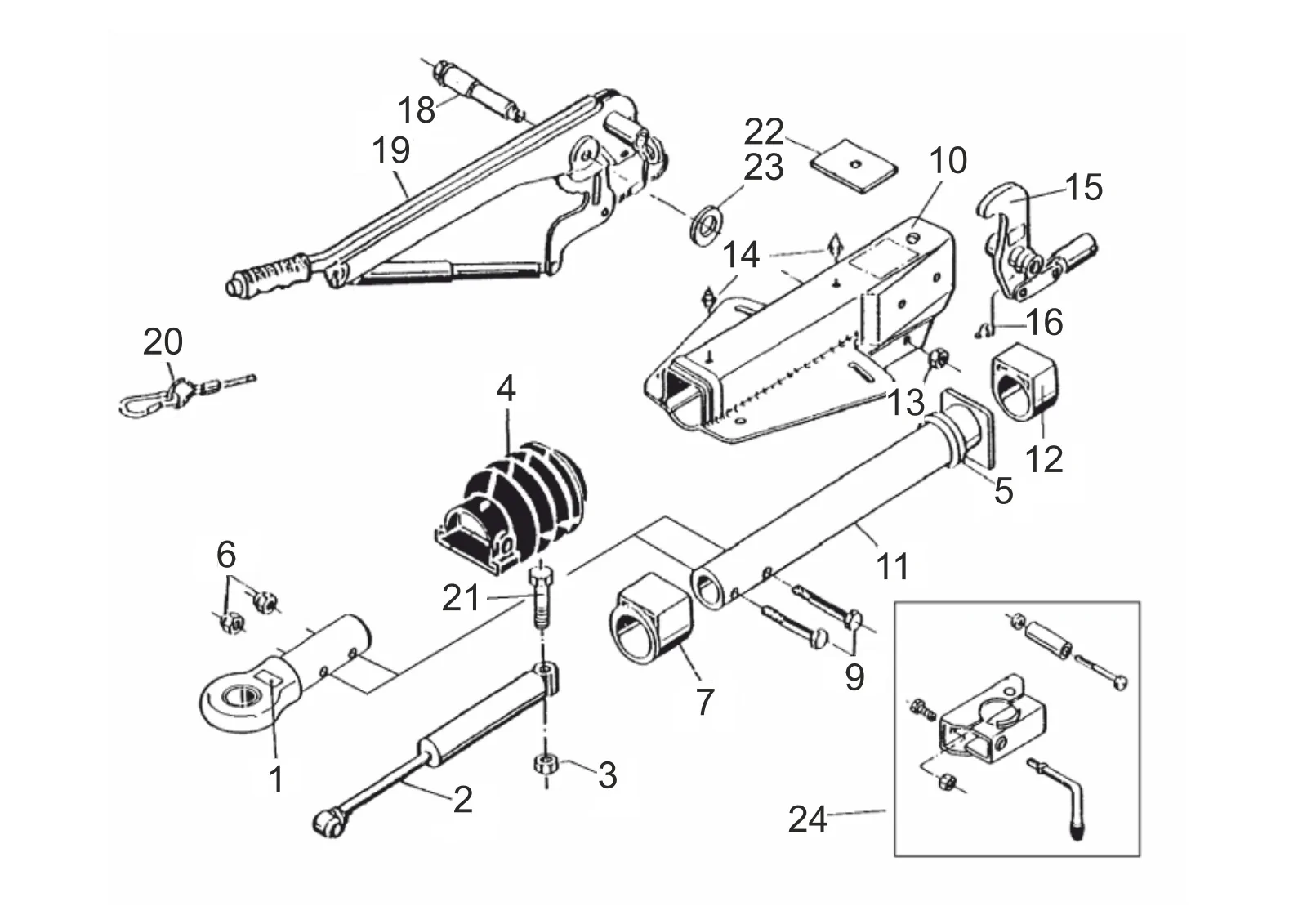

Looking for spare parts for AL-KO ETI 811054? Below you will find the technical exploded drawing and complete parts list for Overrun device V 161S.
Go to parts listExploded drawing
Technical drawing 811054
AL-KO ETI 811054
Technical details
AL-KO | V-design | 161S | with gas spring lever | drawbar eye
ETI number
811054
Parts
22
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811054
Use the position number from the exploded drawing to find the correct spare part.
22 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 367292 | Drawbar eye Frankreich Ø68 | Enquire about this part |
| 2 | 370557 | Shock absorber 161S | View 370557 |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 353943 | Flanged bush | Enquire about this part |
| 9 | 700312 | Hexagon screw M12x90 DIN 931 8.8 zp | View 700312 |
| 10 | ETK0002 | Housing | Enquire about this part |
| 11 | 571874 | Draw tube welded 251S | View 571874 |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 13 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 14 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 15 | 380265 | Deflection lever cpl. iH=90:27 | View 380265 |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 700312 | Hexagon screw M12x90 DIN 931 8.8 zp | View 700312 |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 24 | 293020 | Jockey whell clamp for tube Ø48 161/251 | View 293020 |
