AL-KO ETI 811049 – Overrun device type 161R/Q tube Ø88,9X5,6
Looking for spare parts for AL-KO ETI 811049? Below you will find the technical exploded drawing and complete parts list for Overrun device type 161R/Q tube Ø88,9X5,6.

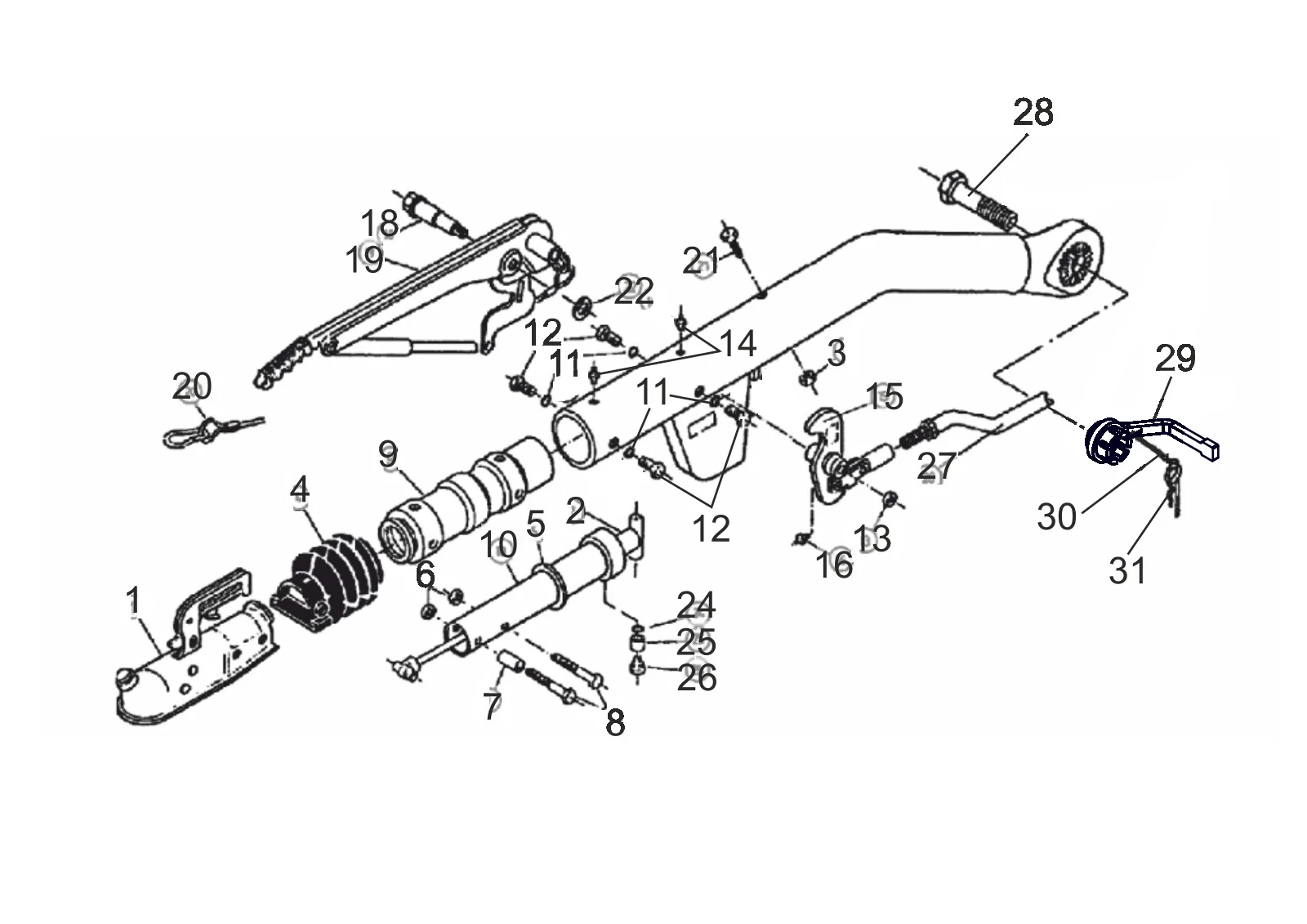

Exploded drawing
Technical drawing 811049
AL-KO ETI 811049
Technical details
AL-KO | pipe design | 161R | with gas spring lever | ball coupling
ETI number
811049
Parts
34
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811049
Use the position number from the exploded drawing to find the correct spare part.
34 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | |
| 2 | 370556 | Shock Absorber 161S | View 370556 |
| 3 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 370559 | Distance bush | |
| 8 | 705418 | Hexagon screw M12x70 DIN 931 8.8 | |
| 9 | 583046 | Bearing cartridge | View 583046 |
| 10 | 380440 | Draw tube welded | |
| 11 | 705544 | Serrated lock washer A10,5 DIN 6798 | |
| 12 | 701334 | Hexagon screw M10x16 DIN 933 8.8 VZ | |
| 13 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 14 | 368461 | Conical grease nipple AS 8x1 DIN 71412 | |
| 15 | 380487 | Deflection lever cpl. UNI iH=90:27 | |
| 15 | 380489 | Deflection lever cpl. UNI iH=90:30 | |
| 15 | 380490 | Deflection lever cpl. UNI iH=90:33,5 | |
| 15 | 384655 | Deflection lever cpl. iH=90:27 | View 384655 |
| 15 | 385651 | Deflection lever cpl. iH=90:30 | |
| 15 | 387984 | Deflection lever cpl. iH = 90:33,5 | |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 20 | 368605 | Breakaway cable with hooks 950 mm length for common commercial trailers | View 368605 |
| 21 | 705420 | Hexagon screw M12x110 DIN 931 8.8 | |
| 22 | 370693 | Washer Ø19x34x3 | |
| 24 | 706477 | Serrated lock washer A8,4 DIN 6798 | |
| 25 | 583043 | Bush | |
| 26 | 583042 | Bearing screw at drawing | |
| 27 | 217738 | Bowden cable overrun device 550/840 | |
| 28 | 2025780004 | Clamping screw M24 | |
| 29 | 1935003 | Clamp handle M24x1,5 | |
| 30 | 2020920004 | Chain 4 links | |
| 31 | 706293 | Cotter pin 7 (Ø6,3) DIN 11024 D |
