AL-KO ETI 811041 – AKS 2000 design A and B

Looking for spare parts for AL-KO ETI 811041? Below you will find the technical exploded drawing and complete parts list for AKS 2000 design A and B.

ETI number: 811041 23 parts

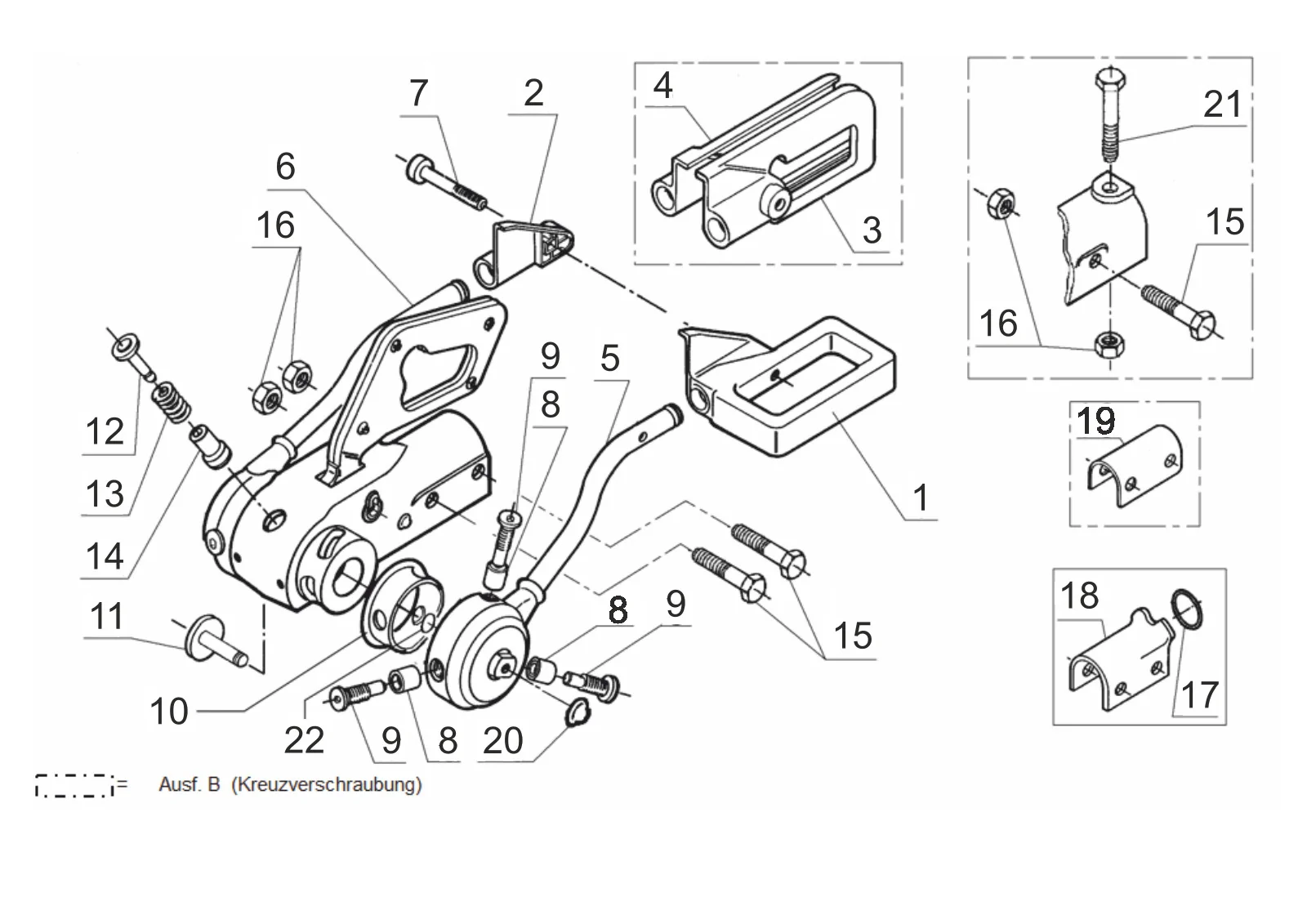

Exploded drawing

Technical drawing 811041

AL-KO ETI 811041

AL-KO | AKS2000

ETI number

811041

Parts

Match the position number in the drawing with the parts list. Available products can be viewed directly.

Spare parts

Use the position number from the exploded drawing to find the correct spare part.

23 parts

Pos.	Article number	Description
1	372161	Handle left AKS 2000 design A	Enquire about this part
2	372162	Handle right AKS 2000 design A	Enquire about this part
3	581158	Handle left AKS 2000 design B	Enquire about this part
4	581159	Handle right AKS 2000 design B	Enquire about this part
5	573912	Thrust washerleft cpl.	Enquire about this part
6	573913	Thrust washerright cpl.	Enquire about this part
7	373547	Bolt M8x75 at drawing	Enquire about this part
8	380307	Bearing bush cpl.	View 380307→
9	372284	Screw M10x1 with pin at drawing	Enquire about this part
10	372166	Sealing ring	View 372166→
11	1220755	Spare parts set pressure bolts AKS 2000/2004/3004	View 1220755→
11	1220758	Spare parts set pressure bolts adjustable AKS 2000	View 1220758→
12	372287	Signal button outside red	View 372287→
13	372285	Compression spring	Enquire about this part
14	372288	Signal button inside green	View 372288→
15	706358	Hexagon screw M12x80 DIN 931 10.9	Enquire about this part
16	705521	hexnut M12 DIN 980-V-10 ZP	Enquire about this part
17	695644	Retaining spring	Enquire about this part
18	690841	Distance bracket Ø35/50	View 690841→
19	372462	Distance bracket Ø45	Enquire about this part
20	583885	Plug RAL3003	Enquire about this part
21	706359	Hexagon screw M12x75 DIN 931 10.9	Enquire about this part
22	703149	O-ring 9x1,8 DIN 3770	View 703149→
