AL-KO ETI 811035 – Overrun device square 161S valid until 06/97
Looking for spare parts for AL-KO ETI 811035? Below you will find the technical exploded drawing and complete parts list for Overrun device square 161S valid until 06/97.

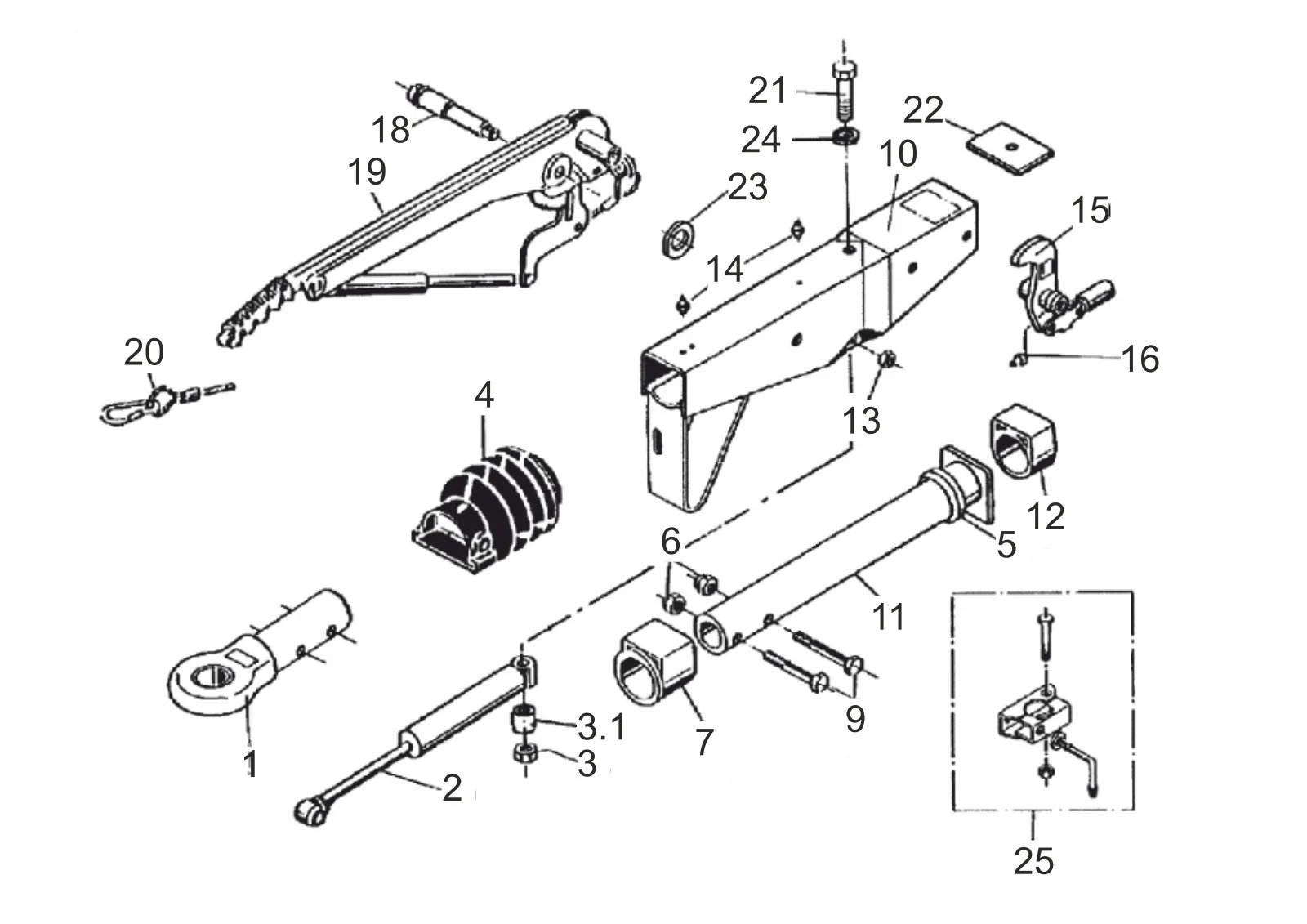

Exploded drawing
Technical drawing 811035
AL-KO ETI 811035
Technical details
AL-KO | square design | 161S | with gas spring lever | drawbar eye
ETI number
811035
Parts
26
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811035
Use the position number from the exploded drawing to find the correct spare part.
26 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 357419 | Drawbar eye DIN Ø40 161/251S | View 357419 |
| 1 | 357420 | Drawbar eye NATO Ø76 | |
| 1 | 364839 | Drawbar eye Italien replaced by 370999 | |
| 2 | 370558 | Shock absorber 161S | |
| 3 | 370580 | Distance bush | |
| 3 | 706437 | Self locking nut BIW M12 | View 706437 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 7 | 353943 | Flanged bush | |
| 9 | 700222 | Hexagon screw M12x60 DIN 931 8.8 zp | |
| 10 | ETK0002 | Housing | |
| 11 | 571875 | Draw tube welded 161/251S | |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 13 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 14 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | |
| 15 | 380265 | Deflection lever cpl. iH=90:27 | View 380265 |
| 15 | 380285 | Deflection lever cpl. iH=90:30 | |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 703134 | Hexagon screw M12x105 DIN 931 8.8 zp | |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 370693 | Washer Ø19x34x3 | |
| 24 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 25 | ETK0004 | Assembly clamp welded |
