AL-KO ETI 811026 – Overrun device V 251S valid until 11/92
Looking for spare parts for AL-KO ETI 811026? Below you will find the technical exploded drawing and complete parts list for Overrun device V 251S valid until 11/92.
Go to parts listExploded drawing

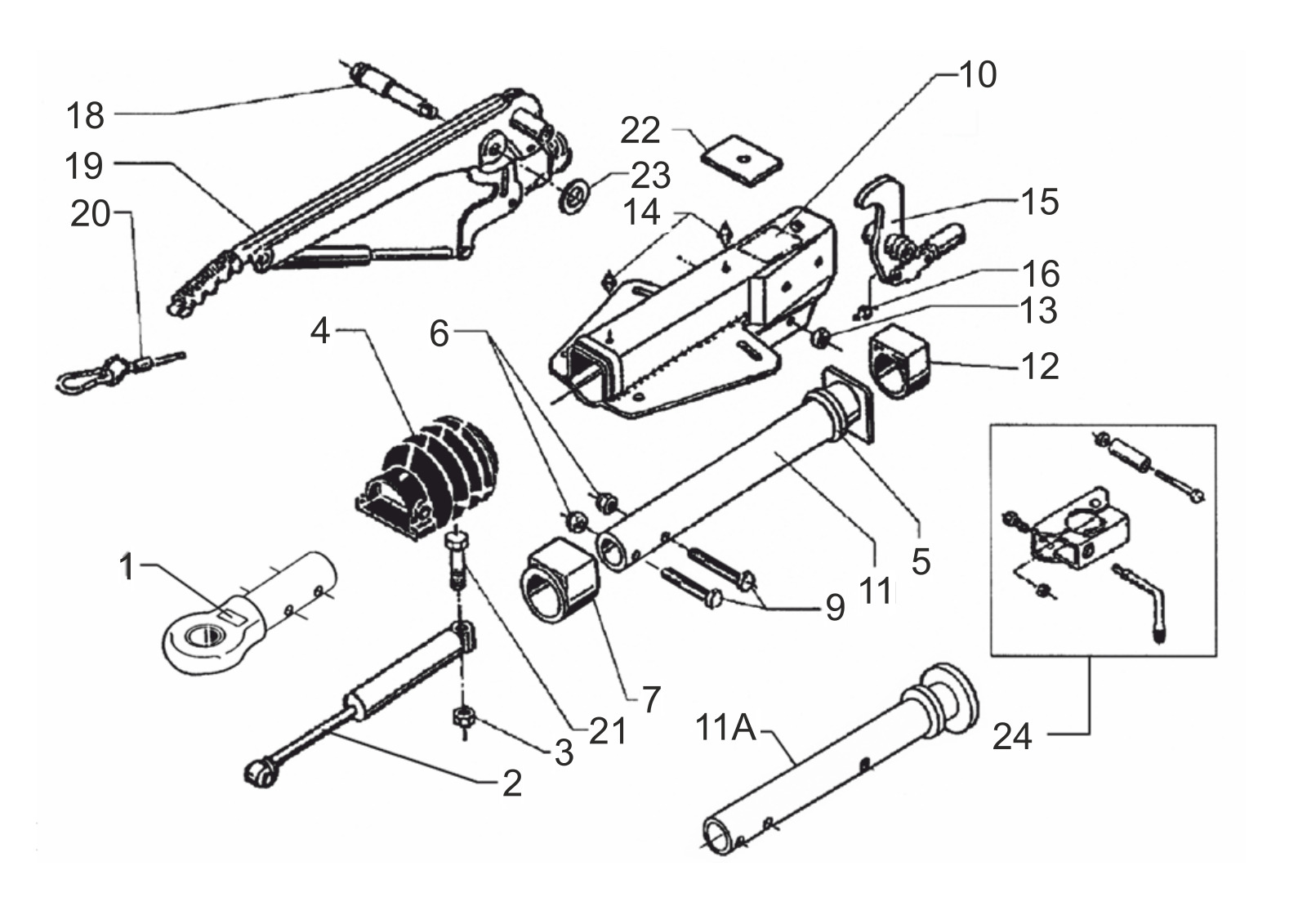

Technical drawing 811026
AL-KO ETI 811026
Technical details
AL-KO | V-design | 251S | with gas spring lever | drawbar eye
ETI number
811026
Parts
27
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811026
Use the position number from the exploded drawing to find the correct spare part.
27 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 357419 | Drawbar eye DIN Ø40 161/251S | View 357419 |
| 1 | 357420 | Drawbar eye NATO Ø76 | Enquire about this part |
| 1 | 364839 | Drawbar eye Italien replaced by 370999 | Enquire about this part |
| 2 | 370561 | Shock absorber 251S | View 370561 |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 7 | 353943 | Flanged bush | Enquire about this part |
| 9 | 700222 | Hexagon screw M12x60 DIN 931 8.8 zp | Enquire about this part |
| 10 | ETK0002 | Housing | Enquire about this part |
| 11 | 571875 | Draw tube welded 161/251S | Enquire about this part |
| 11A | 380413 | Draw tube welded rotatable design A1 | Enquire about this part |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 13 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 14 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 15 | 380525 | Deflection lever cpl. UNI iH=90:27 | View 380525 |
| 15 | 380526 | Deflection lever cpl. UNI iH=90:30 | Enquire about this part |
| 15 | 380527 | Deflection lever cpl. UNI iH=90:33,5 | Enquire about this part |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 18 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 19 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 19 | 220098 | Hand brake lever incl. brake away cable 251S/G | View 220098 |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 700312 | Hexagon screw M12x90 DIN 931 8.8 zp | View 700312 |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 24 | 293020 | Jockey whell clamp for tube Ø48 161/251 | View 293020 |
