AL-KO technical drawing · ETI 811023
AL-KO ETI 811023 – Overrun device V 251 S AK300
Looking for spare parts for AL-KO ETI 811023? Below you will find the technical exploded drawing and complete parts list for Overrun device V 251 S AK300.
Go to parts listExploded drawing

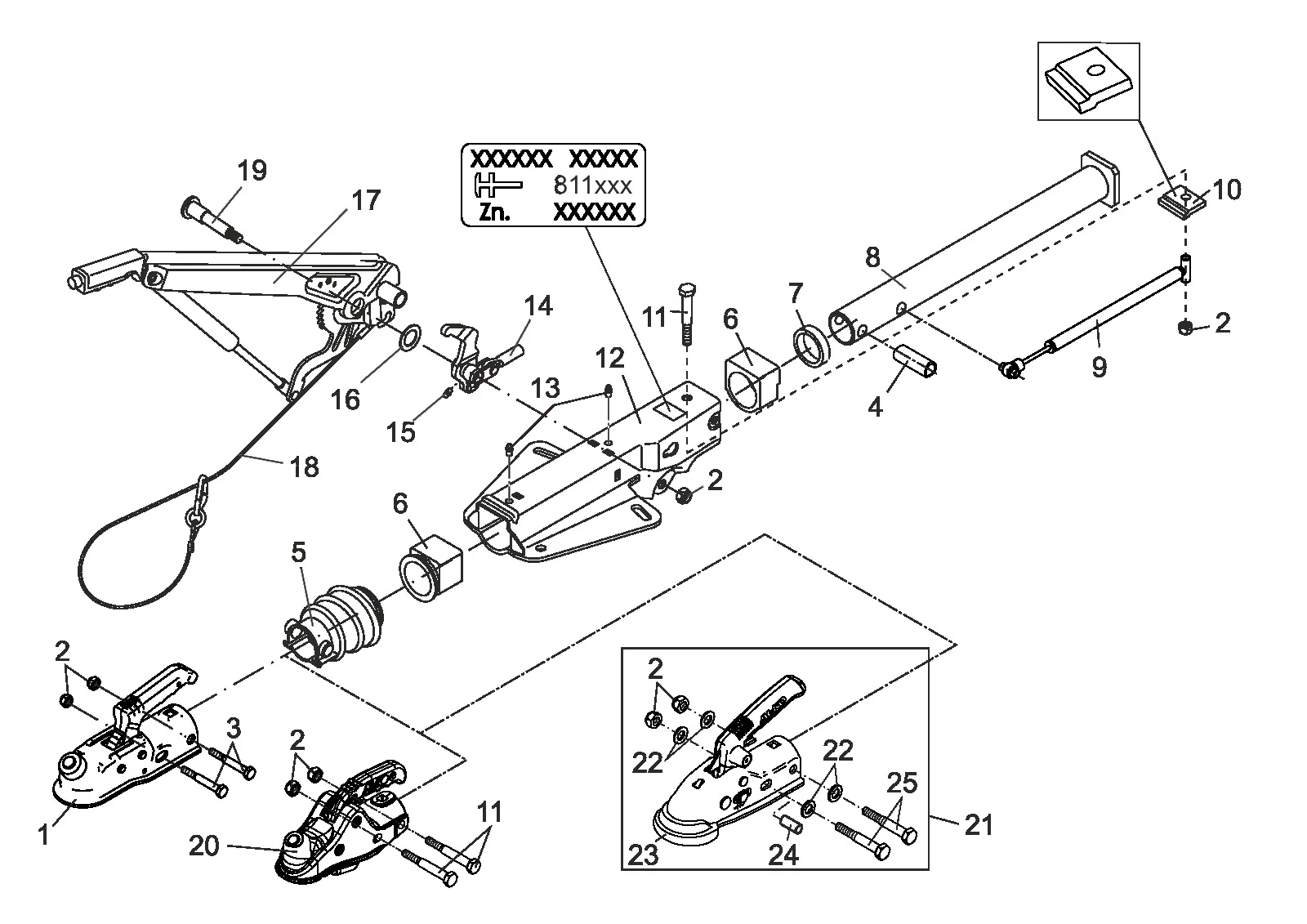

Technical drawing 811023
AL-KO ETI 811023
Technical details
AL-KO | V-design | 251S | with gas spring lever | ball coupling
ETI number
811023
Parts
29
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811023
Use the position number from the exploded drawing to find the correct spare part.
29 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 267312 | Coupling AK300 Ø50 | View 267312 |
| 2 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 3 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 4 | 357242 | Distance bush | Enquire about this part |
| 5 | 366356 | Bellows | View 366356 |
| 6 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 7 | 371372 | Damping rubber | View 371372 |
| 8 | 571874 | Draw tube welded 251S | View 571874 |
| 9 | 370589 | Shock absorber 251S | View 370589 |
| 10 | 581699 | Stop plate | View 581699 |
| 11 | 705434 | Hexagon screw M12x90 DIN 931 8.8 | View 705434 |
| 12 | ETK0005 | Housing | Enquire about this part |
| 13 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 14 | 380265 | Deflection lever cpl. iH=90:27 | View 380265 |
| 14 | 380285 | Deflection lever cpl. iH=90:30 | Enquire about this part |
| 14 | 380525 | Deflection lever cpl. UNI iH=90:27 | View 380525 |
| 14 | 380526 | Deflection lever cpl. UNI iH=90:30 | Enquire about this part |
| 14 | 380527 | Deflection lever cpl. UNI iH=90:33,5 | Enquire about this part |
| 15 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 16 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 17 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 18 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 19 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 20 | 1221746 | Coupling AK301 Ø50 | View 1221746 |
| 21 | 1730084 | Coupling AK270 with mounting parts + SAFETY-Kit | View 1730084 |
| 22 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 23 | 693394 | Soft-dock black | View 693394 |
| 24 | 647924 | Distance bush | Enquire about this part |
| 25 | 705422 | Hexagon screw M12x80 DIN 931 8.8 | Enquire about this part |
| Or email contact@masta.nl | |||
