AL-KO ETI 811014 – Overrun device square 70 161S valid until 10/92
Looking for spare parts for AL-KO ETI 811014? Below you will find the technical exploded drawing and complete parts list for Overrun device square 70 161S valid until 10/92.

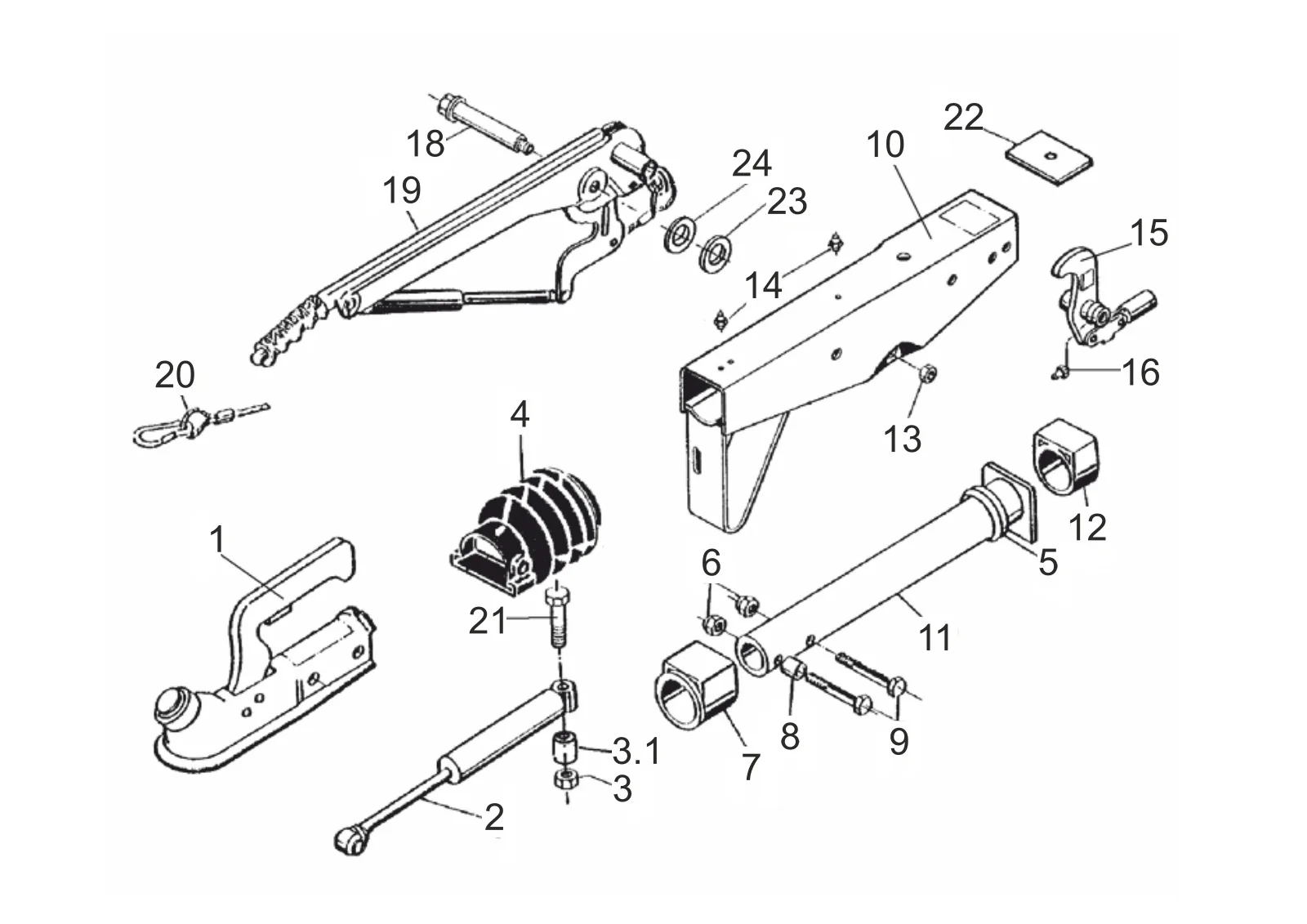

Exploded drawing
Technical drawing 811014
AL-KO ETI 811014
Technical details
AL-KO | square design | 161S | with gas spring lever | ball coupling and AKS
ETI number
811014
Parts
24
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811014
Use the position number from the exploded drawing to find the correct spare part.
24 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | |
| 2 | 370556 | Shock absorber 161S | View 370556 |
| 3 | 370580 | Distance bush | |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 353943 | Flanged bush | |
| 8 | 370559 | Distance bush | |
| 9 | 705418 | Hexagon screw M12x70 DIN 931 8.8 | |
| 10 | ETK0002 | Housing | |
| 11 | 571873 | Draw tube welded 161S | View 571873 |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 14 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | |
| 15 | ETK0003 | Deflection lever iH=90:X, X=Imprint on Deflection lever | |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | |
| 18 | 2077710503 | Bearing screw M12x100 Ø16 | View 2077710503 |
| 19 | 299229 | Hand brake lever incl. brake away cable | |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 705421 | Hexagon screw M12x100 DIN 931 8.8 | |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 706081 | Washer A 17 DIN 125-ST | |
| 24 | 700273 | Washer 17 DIN 433 |
