AL-KO ETI 807028 – Overrun device square 70 161S without gas spring
Looking for spare parts for AL-KO ETI 807028? Below you will find the technical exploded drawing and complete parts list for Overrun device square 70 161S without gas spring.
Go to parts listExploded drawing

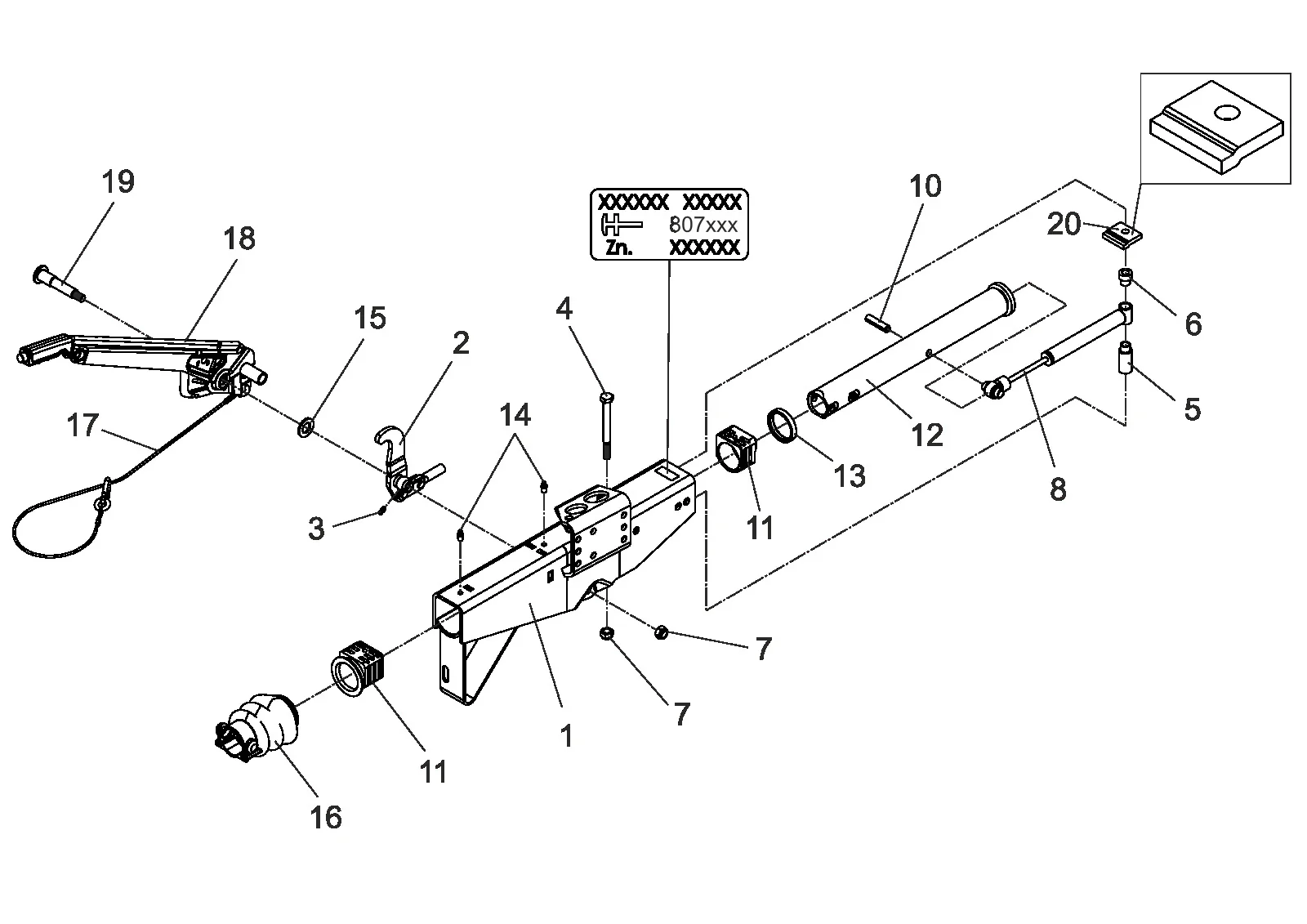

Technical drawing 807028
AL-KO ETI 807028
Technical details
AL-KO | square design | 161S | with gas spring lever | without ball coupling parts
ETI number
807028
Parts
19
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 807028
Use the position number from the exploded drawing to find the correct spare part.
19 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0005 | Housing | Enquire about this part |
| 2 | 648132 | Deflection lever cpl. iH=105:31,5 | Enquire about this part |
| 3 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 4 | 705425 | Hexagon screw M12x120 DIN 931 8.8 | Enquire about this part |
| 5 | 1540256 | Distance bush | Enquire about this part |
| 6 | 647903 | Distance bush | Enquire about this part |
| 7 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 8 | 365482 | Shock absorber 161S Sweden | View 365482 |
| 10 | 707262 | Clamping pin 12x48 ISO 8748-ST at drawing | Enquire about this part |
| 11 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 12 | 647361 | Draw tube welded | Enquire about this part |
| 13 | 371372 | Damping rubber | View 371372 |
| 14 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 15 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 16 | 366356 | Bellows | View 366356 |
| 17 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 18 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 19 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 20 | 581699 | Stop plate | View 581699 |
