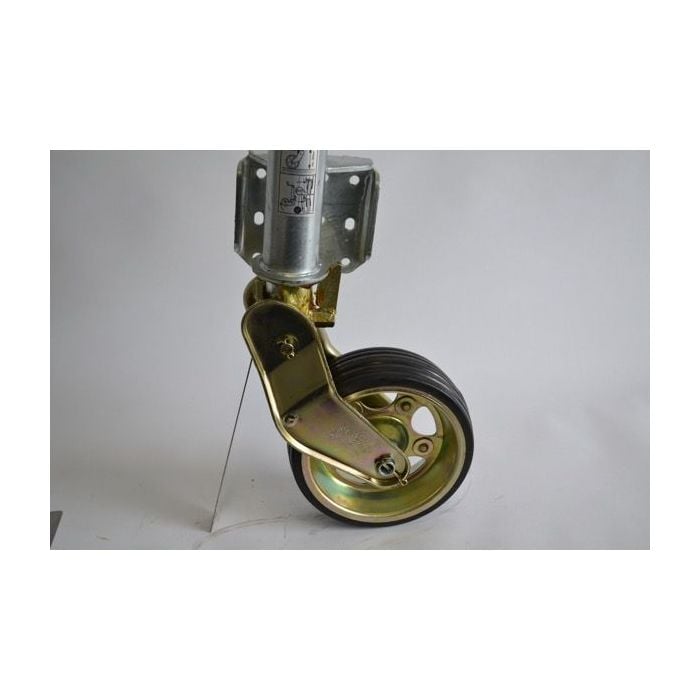

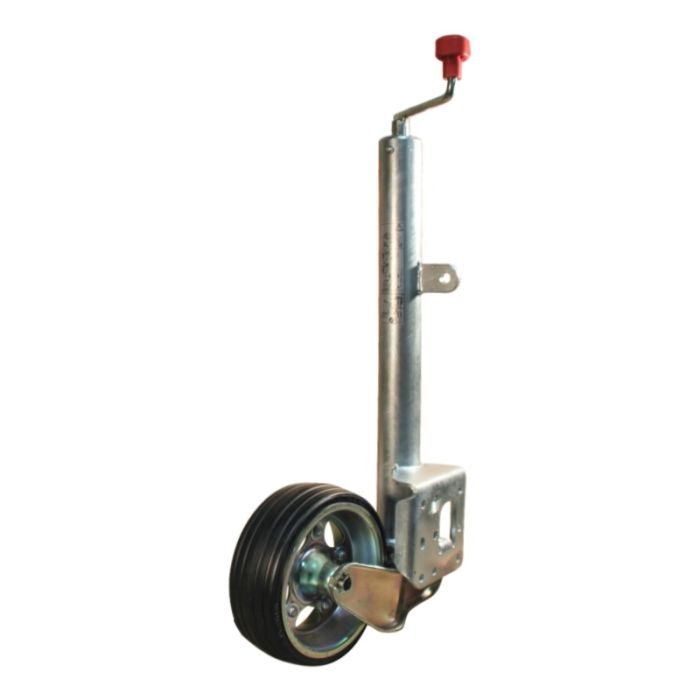

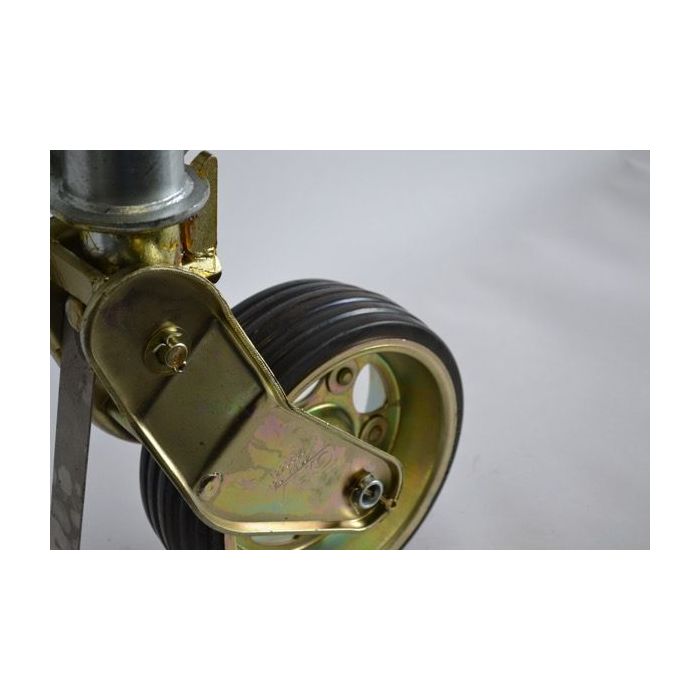

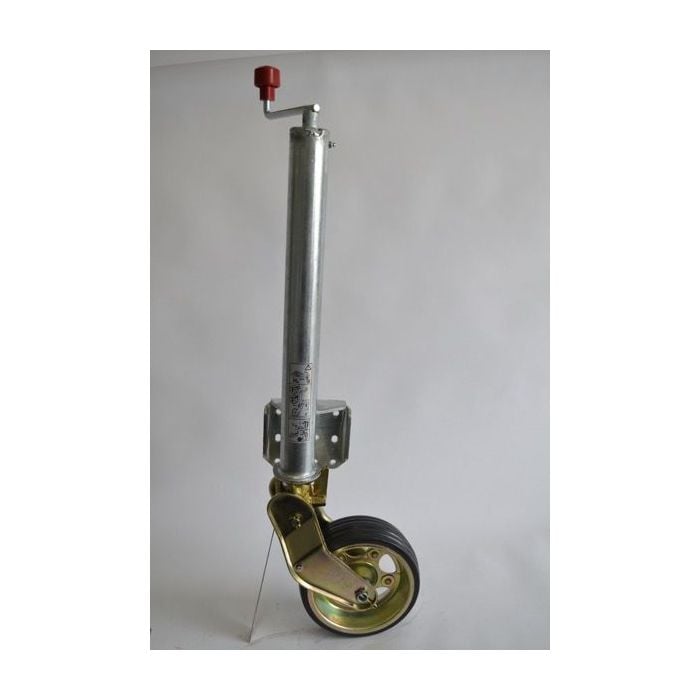

AL-KO automatic jockey wheel 230x80 mm 500kg

AL-KO automatic jockey wheel 230x80 mm extra heavy-duty

- Brand: AL-KO
- Tube diameter: 60 mm
- Wheel: 230x80 mm metal
- Load capacity: 500 kg
- Adjustable height: 340 mm + 240 mm = 580 mm
- This product is equipped with a grease nipple

This jockey wheel is an extra heavy-duty version, equipped with a long shaft, support bracket, and large wheel.

Technical data

The above data are important when purchasing the jockey wheel. In addition, there are some data that can help you with your choice or provide you with more details.

- Handle: fixed
- Minimum height: 1010 mm
- Maximum height: 1350 mm
- Handle height: 100 mm
- Own weight: 12 kg

Additional product information

This AL-KO jockey wheel is characterized by its excellent quality and is extremely suitable for heavy-duty use. The jockey wheel features a long shaft, a support bracket, and an extremely large wheel. With the support bracket, it is possible to mount an additional brace, providing more stability. Due to the universal mounting plate, this jockey wheel fits many trailers including Hapert, Atec, Anssems, Saris, Eduard, and Henra. The jockey wheel is directly attached to the drawbar. A jockey wheel clamp is not applicable to this jockey wheel.

AL-KO number: 1223638 / 1.223.638 / 1 223 638
