Colorful tiltable support leg (Eduard model)

Colorful tilting support leg (Model Eduard)
Tilting support leg mounted on Eduard trailers.
Brand of support leg: Bünte Originals

Convenient support leg that has 3 different positions, so you always have the correct height for your support leg. Easy to tilt with pull-out button and simply attached with 4 bolts to the chassis. Suitable for mounting on the left or right side of the chassis.

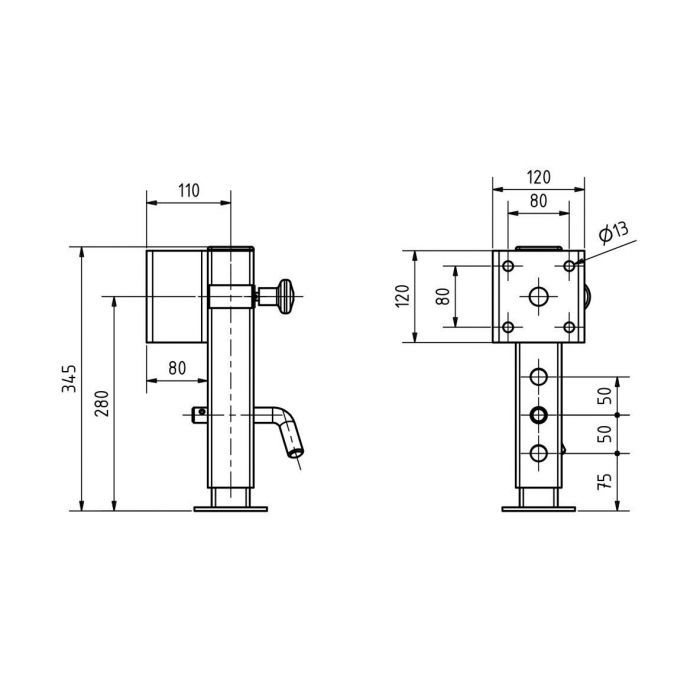

Distance between mounting holes center-to-center: 80 mm (4 holes)
Mounting hole diameter: 12.5 mm (M12)
Foot height: 80 mm
Maximum load: 250 kg
Shortest length of total leg: 35 cm
Longest length of total leg: 45 cm

Can be mounted on Eduard trailers without drilling.
