AL-KO ETI 811931 – Deichsel 103vb mit Adapter und Hand Bremse Hebel
Sie suchen Ersatzteile für AL-KO ETI 811931? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Deichsel 103vb mit Adapter und Hand Bremse Hebel.
Zur TeilelisteExplosionszeichnung

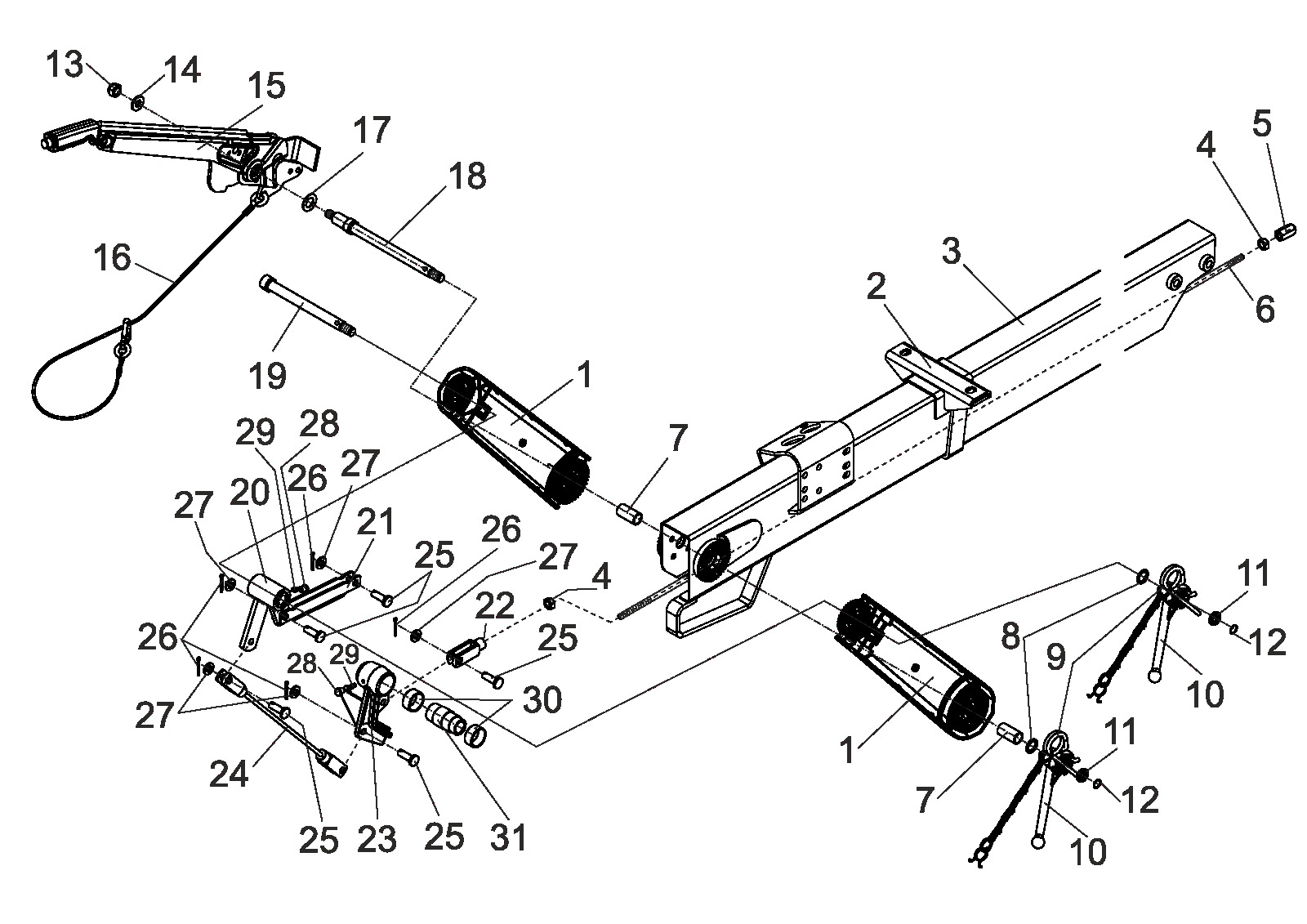

Technische Zeichnung 811931
AL-KO ETI 811931
Technische Daten
AL-KO | height adjustable | mechanical brake | 103VB
ETI-Nummer
811931
Teile
35
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811931
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
35 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 1651695 | Distanzring Seite Arm 102vb heiß getaucht 400 mit Typ Etikett | Dieses Ersatzteil anfragen |
| 1 | 1651696 | Distanzring Seite Arm 102vb heiß getaucht 600 mit Typ Etikett | Dieses Ersatzteil anfragen |
| 1 | 1651697 | Distanzring Seite Arm 102vb heiß getaucht 750 mit Typ Etikett | Dieses Ersatzteil anfragen |
| 2 | 1211104 | Stütze frame Profil 70x140 mit Halter | Dieses Ersatzteil anfragen |
| 3 | ETK0022 | Deichsel | Dieses Ersatzteil anfragen |
| 4 | 705378 | Sechskantmutter M10 DIN 934-8 | Ansehen 705378 |
| 5 | 2088890006 | Kugel Mutter M10 35 mm lang | Ansehen 2088890006 |
| 6 | ETK0006 | Linkage: please specify the Länge und diameter | Dieses Ersatzteil anfragen |
| 7 | 366352 | Buchse | Dieses Ersatzteil anfragen |
| 8 | 706289 | Scheibe s 17x24x1,5 DIN 988 | Dieses Ersatzteil anfragen |
| 9 | 604103 | Feder cotter Stift mit chain | Dieses Ersatzteil anfragen |
| 10 | 365416 | Klemme Griff m16x1,5 | Dieses Ersatzteil anfragen |
| 11 | 372770 | Buchse | Dieses Ersatzteil anfragen |
| 12 | 702300 | Schnapp Ring a14 DIN 7993-1.4310 | Dieses Ersatzteil anfragen |
| 13 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 14 | 706300 | Scheibe 12 DIN 1440 | Dieses Ersatzteil anfragen |
| 15 | 1253072 | Hand Bremse Hebel inkl.. Bremse away Kabel | Dieses Ersatzteil anfragen |
| 16 | 209534 | Breakaway Kabel 1600 mm Länge | Ansehen 209534 |
| 17 | 706292 | Geteilt Schloss Scheibe b 16 DIN 137 | Dieses Ersatzteil anfragen |
| 18 | 1656120 | Lager Schraube m16x1,5x260 Ø19 | Dieses Ersatzteil anfragen |
| 19 | 372772 | Lager Schraube m16x1,5x200 | Dieses Ersatzteil anfragen |
| 20 | 387442 | Ablenkung Hebel kompl.. top | Dieses Ersatzteil anfragen |
| 21 | 374457 | Push Stab | Dieses Ersatzteil anfragen |
| 22 | 706614 | Fork Kopf 10x40 DIN 71752 | Ansehen 706614 |
| 23 | 387441 | Ablenkung Hebel kompl.. | Dieses Ersatzteil anfragen |
| 24 | 374170 | Bowdenzug Kabel 400 Ø6 | Ansehen 374170 |
| 24 | 374187 | Bowdenzug Kabel 600 Ø6 | Dieses Ersatzteil anfragen |
| 24 | 387145 | Bowdenzug Kabel 750 Ø6 | Ansehen 387145 |
| 25 | 706446 | Schraube b10 h11x30x26 DIN 1434 | Dieses Ersatzteil anfragen |
| 26 | 706333 | Geteilt Stift 3,2x25 DIN 94 | Dieses Ersatzteil anfragen |
| 27 | 706452 | Scheibe 10 DIN 1440 | Dieses Ersatzteil anfragen |
| 28 | 368469 | Protection Kappe grease nipple | Dieses Ersatzteil anfragen |
| 29 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 30 | 701916 | Sleeve bering Buchse gly pg 303415 a | Dieses Ersatzteil anfragen |
| 31 | 366458 | Lager Buchse | Dieses Ersatzteil anfragen |
