AL-KO technische Zeichnung · ETI 811915
AL-KO ETI 811915 – Auflauf Gerät V Profi 3500 Klemme m14 pipe 60x8

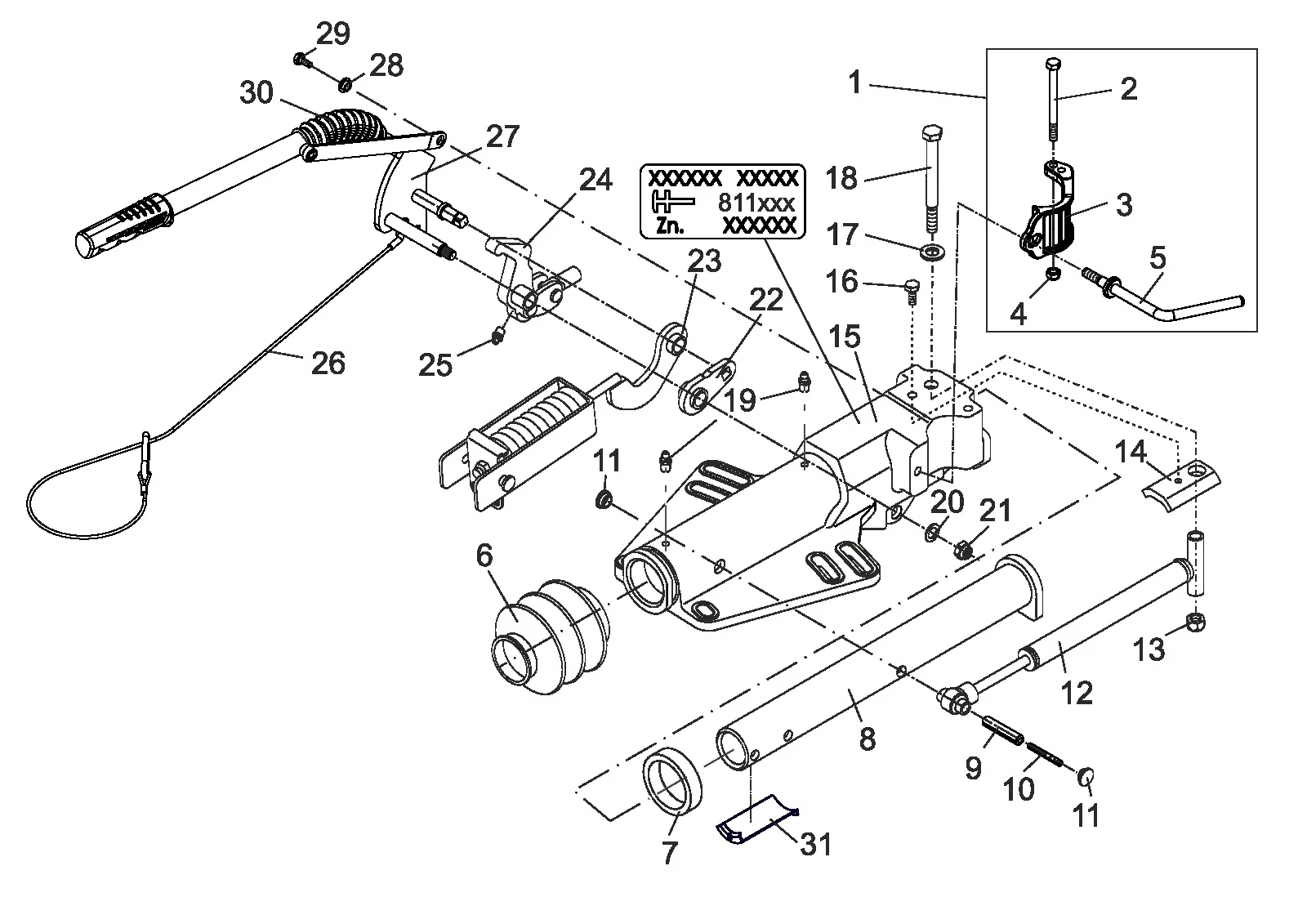

Sie suchen Ersatzteile für AL-KO ETI 811915? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät V Profi 3500 Klemme m14 pipe 60x8.
Zur TeilelisteExplosionszeichnung
Technische Zeichnung 811915
AL-KO ETI 811915
Technische Daten
AL-KO | V-design | Profi 3500 | spring load memory | without ball coupling parts
ETI-Nummer
811915
Teile
32
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811915
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
32 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 1351203 | Baugruppe group Klemme Profi Auflauf Gerät | Ansehen 1351203 |
| 2 | 706004 | Sechskant Schraube m10x125 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 3 | 694937 | Klemme m14 Profi Auflauf Gerät | Dieses Ersatzteil anfragen |
| 4 | 705519 | Sechskantmutter M10 DIN 985-10 | Ansehen 705519 |
| 5 | 694513 | Klemme Griff m14 | Dieses Ersatzteil anfragen |
| 6 | 21726605 | Bellows | Ansehen 21726605 |
| 7 | 2172660003 | Damping rubber | Ansehen 2172660003 |
| 8 | 695615 | Zug Rohr geschweißt | Dieses Ersatzteil anfragen |
| 9 | 706296 | Schnapp Haken 14x55 DIN 1481 | Dieses Ersatzteil anfragen |
| 10 | 702369 | Schnapp Haken 8x55 DIN 1481 | Dieses Ersatzteil anfragen |
| 11 | 372416 | Dichtung plug | Dieses Ersatzteil anfragen |
| 12 | 1207130 | Stoß Stoßdämpfer ae 3500 | Ansehen 1207130 |
| 13 | 706354 | Sechskant Schraube m14x100 DIN 931 10.9 | Dieses Ersatzteil anfragen |
| 14 | 692278 | Stop Platte | Dieses Ersatzteil anfragen |
| 15 | ETK0005 | Housing | Dieses Ersatzteil anfragen |
| 16 | 706090 | Sechskant Schraube m10x20 DIN 933 bei Zeichnung | Dieses Ersatzteil anfragen |
| 17 | 705490 | Scheibe a 15 DIN 125-st | Dieses Ersatzteil anfragen |
| 18 | 706353 | Sechskant Schraube m14x140 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 19 | 2171710001 | Conical grease nipple as 8x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 20 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 21 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 22 | 692687 | Hebel geschweißt | Dieses Ersatzteil anfragen |
| 23 | 692648 | Feder bow kompl.. | Dieses Ersatzteil anfragen |
| 24 | 692268 | Ablenkung Hebel kompl.. IH=90:30 inkl.. grease nipple | Dieses Ersatzteil anfragen |
| 24 | 692722 | Ablenkung Hebel kompl.. IH=90:27 inkl.. grease nipple | Dieses Ersatzteil anfragen |
| 25 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 26 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 27 | 692236 | Hand Bremse Hebel inkl.. Bremse away Kabel Profi | Dieses Ersatzteil anfragen |
| 28 | 692645 | Buchse | Dieses Ersatzteil anfragen |
| 29 | 706089 | Sechskant Schraube m8x16 DIN 933 bei Zeichnung | Dieses Ersatzteil anfragen |
| 30 | 1225358 | Ersatz Teile Satz bellow Hand Bremse Hebel Profi Außendurchmesser | Ansehen 1225358 |
| 31 | 1540505 | Halter | Dieses Ersatzteil anfragen |
| Oder per E-Mail an info@masta.nl | |||
