AL-KO ETI 811913 – Auflauf Gerät Profi V 3500 Hand Bremse Hebel lowered

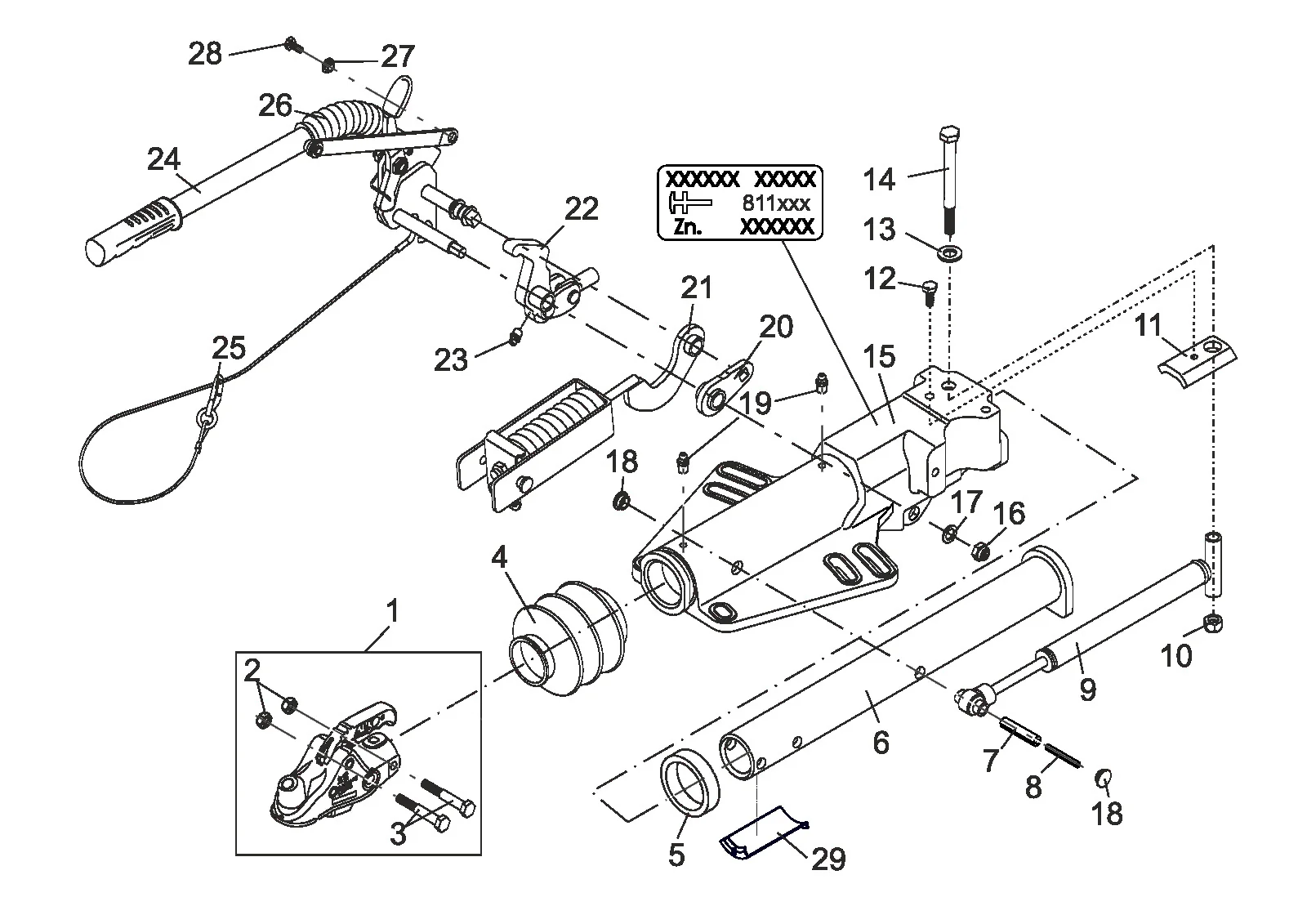

Sie suchen Ersatzteile für AL-KO ETI 811913? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät Profi V 3500 Hand Bremse Hebel lowered.
Zur TeilelisteExplosionszeichnung
Technische Zeichnung 811913
AL-KO ETI 811913
Technische Daten
AL-KO | V-design | Profi 3500 | spring load memory | ball coupling
ETI-Nummer
811913
Teile
30
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811913
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
30 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 1224391 | Kupplung Kopf ak351 mit Montage Teile | Dieses Ersatzteil anfragen |
| 2 | 706306 | Sechskantmutter m16 DIN 985-8 | Ansehen 706306 |
| 3 | 706301 | Sechskant Schraube m16x100 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 4 | 21726605 | Bellows | Ansehen 21726605 |
| 5 | 2172660003 | Damping rubber | Ansehen 2172660003 |
| 6 | 695615 | Zug Rohr geschweißt | Dieses Ersatzteil anfragen |
| 7 | 706296 | Schnapp Haken 14x55 DIN 1481 | Dieses Ersatzteil anfragen |
| 8 | 702369 | Schnapp Haken 8x55 DIN 1481 | Dieses Ersatzteil anfragen |
| 9 | 1207130 | Stoß Stoßdämpfer ae 3500 | Ansehen 1207130 |
| 10 | 706354 | Sechskant Schraube m14x100 DIN 931 10.9 | Dieses Ersatzteil anfragen |
| 11 | 692278 | Stop Platte | Dieses Ersatzteil anfragen |
| 12 | 705461 | Sechskant Schraube m10x20 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 13 | 705490 | Scheibe a 15 DIN 125-st | Dieses Ersatzteil anfragen |
| 14 | 706353 | Sechskant Schraube m14x140 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 15 | ETK0005 | Housing | Dieses Ersatzteil anfragen |
| 16 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 17 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 18 | 372416 | Dichtung plug | Dieses Ersatzteil anfragen |
| 19 | 700204 | Conical grease nipple as 8x1 DIN 71412 | Ansehen 700204 |
| 20 | 692687 | Hebel geschweißt | Dieses Ersatzteil anfragen |
| 21 | 692648 | Feder bow kompl.. | Dieses Ersatzteil anfragen |
| 22 | 692268 | Ablenkung Hebel kompl.. IH=90:30 inkl.. grease nipple | Dieses Ersatzteil anfragen |
| 22 | 692723 | Ablenkung Hebel kompl.. IH=90:33,5 inkl.. grease nipple | Dieses Ersatzteil anfragen |
| 23 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 24 | 693064 | Hand Bremse Hebel absenkbar Profi asb-hb | Dieses Ersatzteil anfragen |
| 25 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 26 | 1225358 | Ersatz Teile Satz bellow Hand Bremse Hebel Profi Außendurchmesser | Ansehen 1225358 |
| 27 | 692645 | Buchse | Dieses Ersatzteil anfragen |
| 28 | 705460 | Sechskant Schraube m8x16 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 29 | 1540505 | Halter | Dieses Ersatzteil anfragen |
