AL-KO technische Zeichnung · ETI 811669
AL-KO ETI 811669 – Auflauf Gerät 2,8vb/1-c Hand Bremse Hebel speziell
Sie suchen Ersatzteile für AL-KO ETI 811669? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät 2,8vb/1-c Hand Bremse Hebel speziell.
Zur TeilelisteExplosionszeichnung

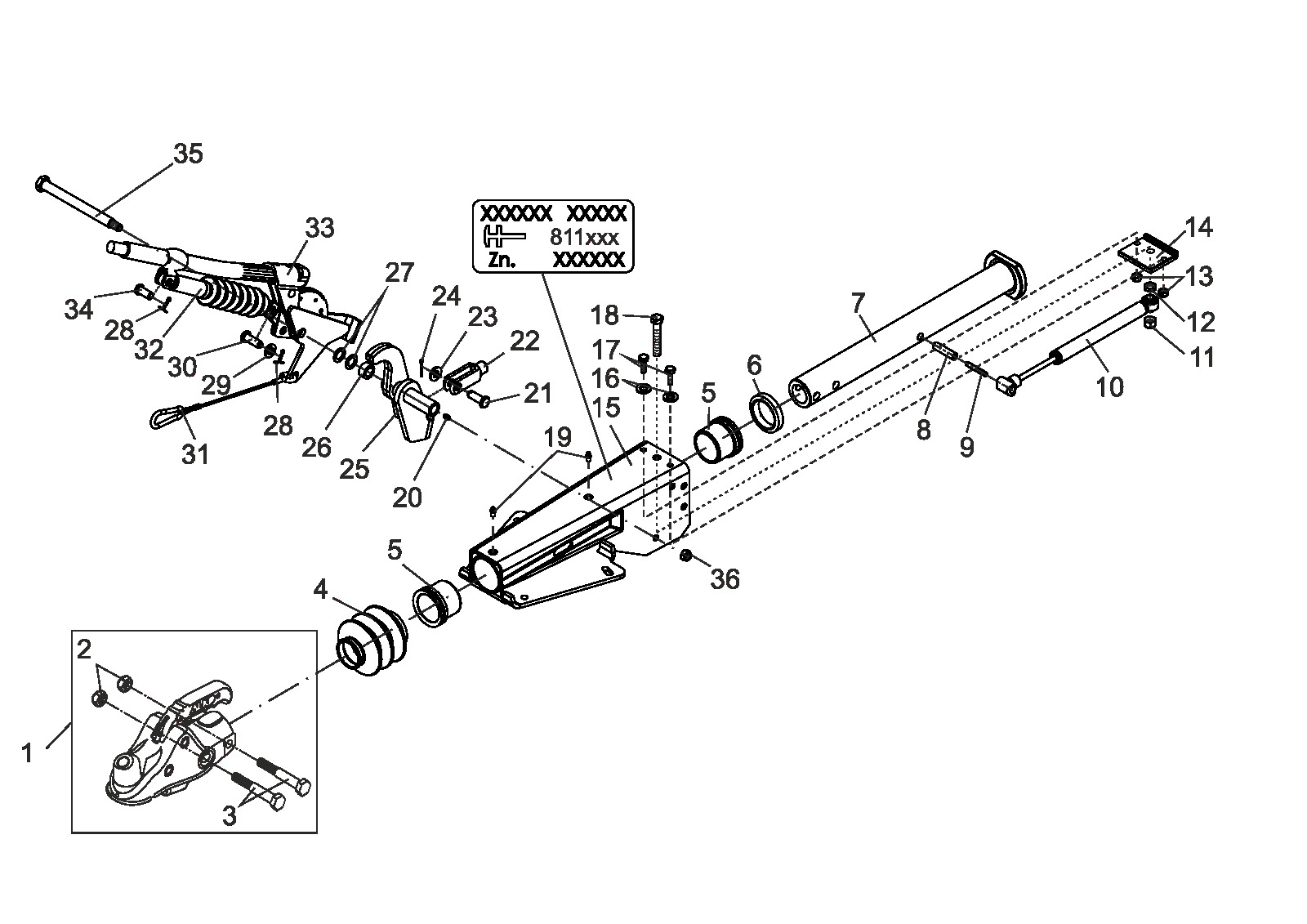

Technische Zeichnung 811669
AL-KO ETI 811669
Technische Daten
AL-KO | V-design | 2,8VB/1-C | with gas spring lever | ball coupling
ETI-Nummer
811669
Teile
36
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811669
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
36 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 1224391 | Kupplung ak351 mit Montage Teile | Dieses Ersatzteil anfragen |
| 2 | 706306 | Sechskantmutter m16 DIN 985-8 | Ansehen 706306 |
| 3 | 706301 | Sechskant Schraube m16x100 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 4 | 21726605 | Bellows | Ansehen 21726605 |
| 5 | 2172660004 | Lager Buchse | Ansehen 2172660004 |
| 6 | 2172660003 | Damping rubber | Ansehen 2172660003 |
| 7 | 1351222 | Zug Rohr geschweißt mit 3 drillings | Ansehen 1351222 |
| 8 | 706296 | Schnapp Haken 14x55 DIN 1481 | Dieses Ersatzteil anfragen |
| 9 | 702369 | Schnapp Haken 8x55 DIN 1481 geomet | Dieses Ersatzteil anfragen |
| 10 | 372854 | Stoß Stoßdämpfer 351vb | Ansehen 372854 |
| 11 | 705605 | Sechskantmutter m14 DIN 980-V-8 | Dieses Ersatzteil anfragen |
| 12 | 706290 | Sechskantmutter m14 DIN 439-b-04 | Dieses Ersatzteil anfragen |
| 13 | 705519 | Sechskantmutter M10 DIN 985-10 | Ansehen 705519 |
| 14 | 21783404 | Ende stop Platte (bis may 2007) | Dieses Ersatzteil anfragen |
| 15 | ETK0005 | Housing | Dieses Ersatzteil anfragen |
| 16 | 705396 | Scheibe a 10,5 DIN 125-st | Ansehen 705396 |
| 17 | 705458 | Sechskant Schraube m10x30 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 18 | 706287 | Sechskant Schraube m14x80 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 19 | 375900 | Conical grease nipple as 8x1 DIN 71412 | Ansehen 375900 |
| 20 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 21 | 706317 | Schraube b12 h11x35x29,5 en22341 | Dieses Ersatzteil anfragen |
| 22 | 706559 | Fork Kopf 12x48 DIN 71752 | Dieses Ersatzteil anfragen |
| 23 | 706300 | Scheibe 12 DIN 1440 | Dieses Ersatzteil anfragen |
| 24 | 706333 | Geteilt Stift 3,2x25 DIN 94 | Dieses Ersatzteil anfragen |
| 25 | 1350000 | Ablenkung Hebel kompl.. | Dieses Ersatzteil anfragen |
| 26 | 353140 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 27 | 2075750006 | Scheibe polyamid | Dieses Ersatzteil anfragen |
| 28 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 29 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 30 | 695065 | Schraube b12x73 | Dieses Ersatzteil anfragen |
| 31 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 32 | 1215889 | Gas Feder gf14/7-676712/21-2000 | Dieses Ersatzteil anfragen |
| 33 | 1250755 | Hand Bremse Hebel inkl.. Bremse away Kabel | Dieses Ersatzteil anfragen |
| 34 | 358533 | Schraube | Ansehen 358533 |
| 35 | 1350071 | Lager Schraube geschweißt | Dieses Ersatzteil anfragen |
| 36 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| Oder per E-Mail an info@masta.nl | |||
