AL-KO ETI 811665 – Auflauf Gerät Quadrat 120 2,8vb/1-c Deichsel rotable

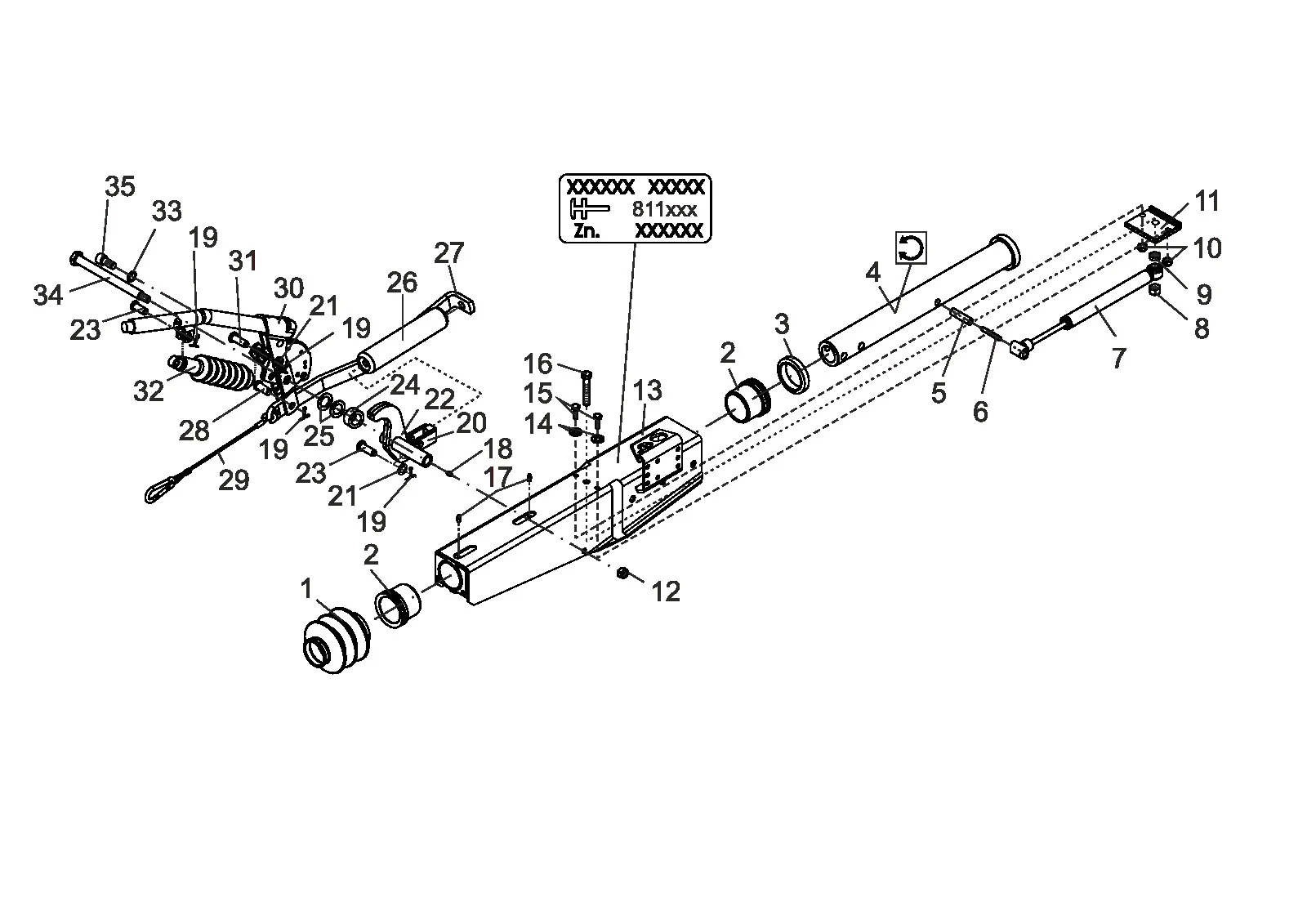

Sie suchen Ersatzteile für AL-KO ETI 811665? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät Quadrat 120 2,8vb/1-c Deichsel rotable.
Zur TeilelisteExplosionszeichnung
Technische Zeichnung 811665
AL-KO ETI 811665
Technische Daten
AL-KO | square design | 2,8VB/1-C | with gas spring lever | without ball coupling parts
ETI-Nummer
811665
Teile
35
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811665
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
35 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 21726605 | Bellows | Ansehen 21726605 |
| 2 | 2172660004 | Lager Buchse | Ansehen 2172660004 |
| 3 | 2172660003 | Damping rubber | Ansehen 2172660003 |
| 4 | 1351242 | Zug Rohr geschweißt 2.8vb rotatable | Dieses Ersatzteil anfragen |
| 5 | 706296 | Schnapp Haken 14x55 DIN 1481 | Dieses Ersatzteil anfragen |
| 6 | 702369 | Schnapp Haken 8x55 DIN 1481 geomet | Dieses Ersatzteil anfragen |
| 7 | 372854 | Stoß Stoßdämpfer 351vb | Ansehen 372854 |
| 8 | 705605 | Sechskantmutter m14 DIN 980-V-8 | Dieses Ersatzteil anfragen |
| 9 | 706290 | Sechskantmutter m14 DIN 439-b-04 | Dieses Ersatzteil anfragen |
| 10 | 705519 | Sechskantmutter M10 DIN 985-10 | Ansehen 705519 |
| 11 | 370881 | Ende stop Platte | Dieses Ersatzteil anfragen |
| 12 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 13 | ETK0005 | Housing | Dieses Ersatzteil anfragen |
| 14 | 705396 | Scheibe a 10,5 DIN 125-st | Ansehen 705396 |
| 15 | 705458 | Sechskant Schraube m10x30 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 16 | 706287 | Sechskant Schraube m14x80 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 17 | 375900 | Conical grease nipple as 8x1 DIN 71412 | Ansehen 375900 |
| 18 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 19 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 20 | 21783407 | Fork Kopf geschweißt | Dieses Ersatzteil anfragen |
| 21 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 22 | 649329 | Ablenkung Hebel kompl.. 2.8vb Quadrat | Dieses Ersatzteil anfragen |
| 23 | 706522 | Schraube b12 h11x40x34,5 en22341 | Dieses Ersatzteil anfragen |
| 24 | 353140 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 25 | 2075750006 | Scheibe polyamid | Dieses Ersatzteil anfragen |
| 26 | 21783408 | Feder Zylinder kompl.. | Ansehen 21783408 |
| 27 | 353137 | Spannung Halter welde heiß getaucht | Dieses Ersatzteil anfragen |
| 28 | 358533 | Schraube | Ansehen 358533 |
| 29 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 30 | 220297 | Hand Bremse Hebel Komplett | Ansehen 220297 |
| 31 | 706317 | Schraube b12 h11x35x29,5 en22341 | Dieses Ersatzteil anfragen |
| 32 | 603896 | Gas Feder gf14/7-676709/13-2000 | Ansehen 603896 |
| 33 | 706490 | Feder Schloss Scheibe 12 DIN 7980 | Dieses Ersatzteil anfragen |
| 34 | 590127 | Lager Schraube geschweißt | Dieses Ersatzteil anfragen |
| 35 | 706395 | Zylinder Schraube m12x25 DIN 912 8.8 | Dieses Ersatzteil anfragen |
| Oder per E-Mail an info@masta.nl | |||
