AL-KO ETI 811603 – Rad Bremse euro1 2361 Antrieb Achse
Sie suchen Ersatzteile für AL-KO ETI 811603? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Rad Bremse euro1 2361 Antrieb Achse.
Zur TeilelisteExplosionszeichnung

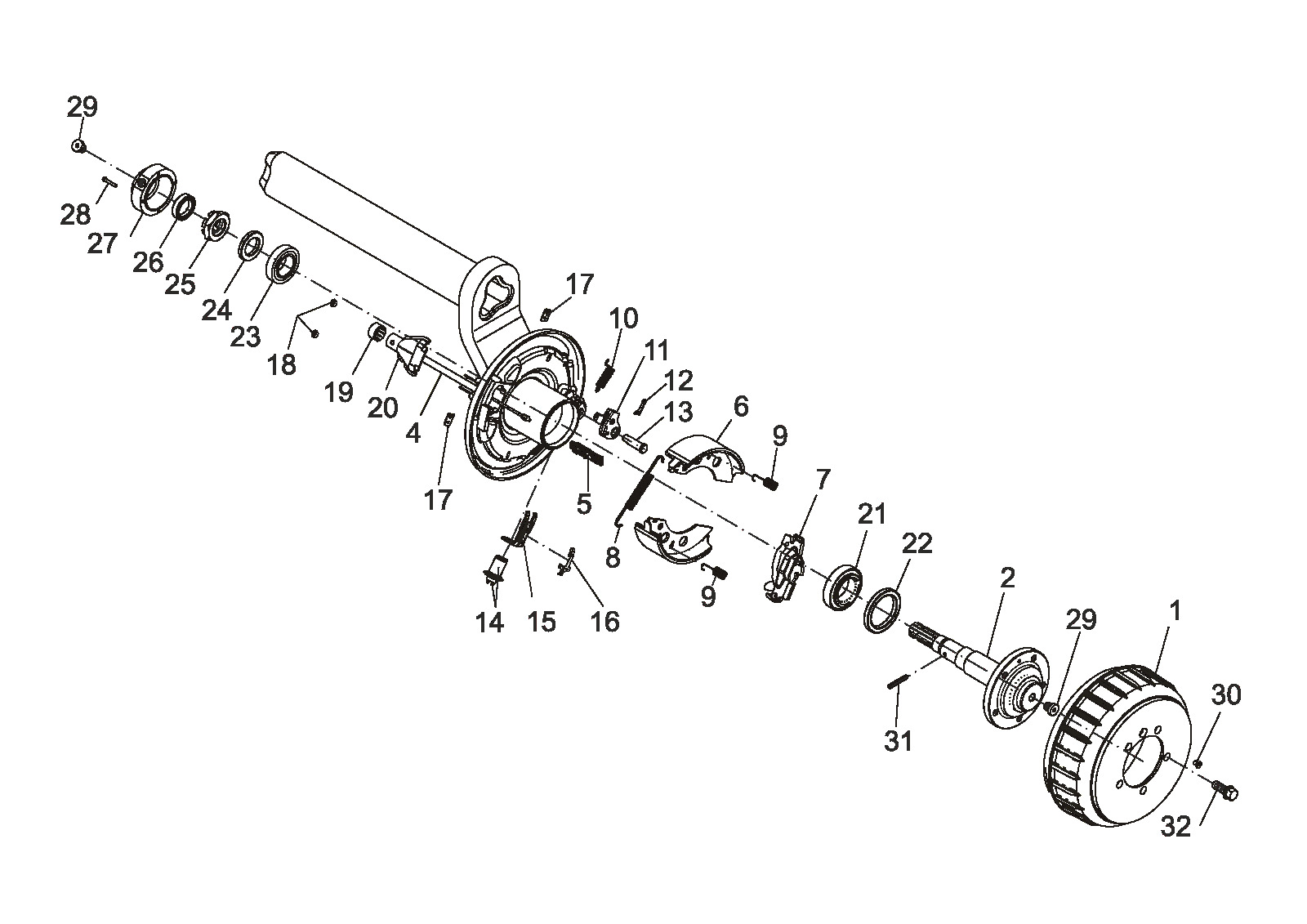

Technische Zeichnung 811603
AL-KO ETI 811603
Technische Daten
AL-KO | EURO 1 | 2361 | 900 kg
ETI-Nummer
811603
Teile
37
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811603
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
37 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 606042 | Bremse Trommel 112x5 M12x1,5 für Antrieb | Dieses Ersatzteil anfragen |
| 2 | 1367117 | Antrieb Welle kompl.. | Dieses Ersatzteil anfragen |
| 4 | 247281 | Bowdenzug Kabel Kompakt 350/546 lang Profi lang Lebensdauer | Dieses Ersatzteil anfragen |
| 4 | 247282 | Bowdenzug Kabel Kompakt 530/726 lang Profi lang Lebensdauer | Ansehen 247282 |
| 4 | 247283 | Bowdenzug Kabel Kompakt 770/966 lang Profi lang Lebensdauer | Ansehen 247283 |
| 4 | 247284 | Bowdenzug Kabel Kompakt 890/1086 lang Profi lang Lebensdauer | Dieses Ersatzteil anfragen |
| 4 | 247285 | Bowdenzug Kabel Kompakt 1020/1216 lang Profi lang Lebensdauer | Dieses Ersatzteil anfragen |
| 4 | 247286 | Bowdenzug Kabel Kompakt 1130/1326 lang Profi lang Lebensdauer | Ansehen 247286 |
| 5 | 604262 | Connection Öse Rad Bremse 1637/2051/2361 | Ansehen 604262 |
| 6 | 1213890 | Satz Bremse jaw 2360/2361 | Ansehen 1213890 |
| 7 | 571510 | Spread hinge Schloss kompl.. 2051/2361 | Ansehen 571510 |
| 8 | 2082000007 | Spannung Feder | Ansehen 2082000007 |
| 9 | 2088800003 | Compression Feder | Dieses Ersatzteil anfragen |
| 10 | 2187370003 | Spannung Feder | Ansehen 2187370003 |
| 11 | 571386 | Auto reserve Hebel kompl.. links | Dieses Ersatzteil anfragen |
| 11 | 571387 | Auto reserve Hebel kompl.. rechts | Dieses Ersatzteil anfragen |
| 12 | 700192 | Geteilt Stift 4x20 DIN 94 (bei Zeichnung) | Dieses Ersatzteil anfragen |
| 13 | 368651 | Lager Schraube | Dieses Ersatzteil anfragen |
| 14 | 21873708 | Regulation Einheit Rad Bremse | Ansehen 21873708 |
| 15 | 368361 | Bow pressure | Ansehen 368361 |
| 16 | 368405 | Compound Feder | Ansehen 368405 |
| 17 | 2382610002 | Abdeckung Platte | Dieses Ersatzteil anfragen |
| 18 | 373245 | Plug ral6002 | Ansehen 373245 |
| 19 | 371389 | Protective Kappe | Dieses Ersatzteil anfragen |
| 20 | 371387 | Bremse Kabel shell | Dieses Ersatzteil anfragen |
| 21 | 701230 | Konisch Rolle Lager lm 501349/310 | Dieses Ersatzteil anfragen |
| 22 | 700779 | Rotary Welle lip Dichtung as 55x75x8 DIN 3760-nb | Dieses Ersatzteil anfragen |
| 23 | 700261 | Konisch Rolle Lager 32007 xdin 720 | Dieses Ersatzteil anfragen |
| 24 | 1367127 | Scheibe Ø50 | Dieses Ersatzteil anfragen |
| 25 | 706506 | Castle Mutter m30x1,5 DIN 937 | Dieses Ersatzteil anfragen |
| 26 | 705895 | Rotary Welle lip Dichtung tc 27x42x10 DIN 3760-nbr | Dieses Ersatzteil anfragen |
| 27 | 1367121 | Abdeckung | Dieses Ersatzteil anfragen |
| 28 | 705893 | Zylinder Schraube m4x25 DIN 84 a2-70 | Dieses Ersatzteil anfragen |
| 29 | 705894 | Schraube g1/4"x12 bei Zeichnung | Dieses Ersatzteil anfragen |
| 30 | 705897 | Countersunk Schraube m6x10 DIN 963 a2-70 | Dieses Ersatzteil anfragen |
| 31 | 700166 | Schnapp Haken 6x40 DIN 1481 | Dieses Ersatzteil anfragen |
| 32 | 1338784 | Rad Schraube sperical M12x1,5x35 | Dieses Ersatzteil anfragen |
