AL-KO ETI 811520 – Auflauf Gerät V Typ Profi 3000
Sie suchen Ersatzteile für AL-KO ETI 811520? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät V Typ Profi 3000.
Zur TeilelisteExplosionszeichnung

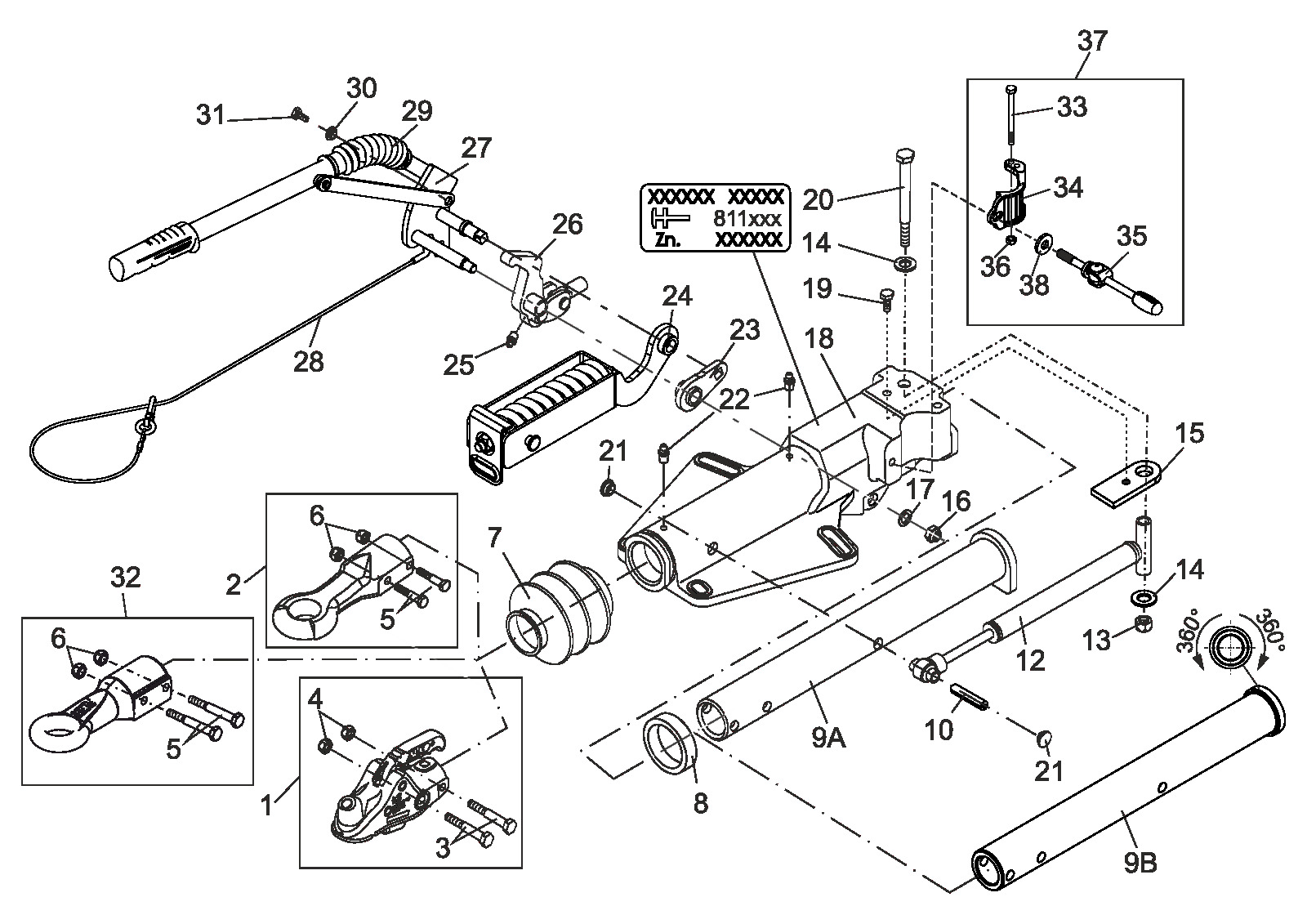

Technische Zeichnung 811520
AL-KO ETI 811520
Technische Daten
AL-KO | V-design | Profi 3000 | ball coupling and drawbar eye
ETI-Nummer
811520
Teile
41
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811520
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
41 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 1221746 | Kupplung Kopf ak 301 Profi | Ansehen 1221746 |
| 2 | 1213350 | Deichsel Öse Ø40 mit Befestigung Schrauben Version f | Dieses Ersatzteil anfragen |
| 2 | 1224111 | Deichsel Öse nato Ø76 mit Befestigung Schrauben Version e | Ansehen 1224111 |
| 3 | 705442 | Sechskant Schraube m12x85 DIN 931 8.8 | Ansehen 705442 |
| 4 | 705389 | Sechskantmutter M12 DIN 980-V-8 | Ansehen 705389 |
| 5 | 705434 | Sechskant Schraube m12x90 DIN 931 8.8 | Ansehen 705434 |
| 6 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 7 | 366356 | Bellows | Ansehen 366356 |
| 8 | 371372 | Damping rubber | Ansehen 371372 |
| 9A | 692281 | Zug Rohr geschweißt | Dieses Ersatzteil anfragen |
| 9B | 1352319 | Zug Rohr geschweißt | Dieses Ersatzteil anfragen |
| 10 | 707262 | Spannen Stift 12x48 ISO 8748-st bei Zeichnung | Dieses Ersatzteil anfragen |
| 12 | 1217089 | Stoß Stoßdämpfer ae 3000 | Dieses Ersatzteil anfragen |
| 13 | 705693 | Sechskantmutter m14 DIN 985-10 | Dieses Ersatzteil anfragen |
| 14 | 704622 | Scheibe a 15 DIN 125-st dac | Dieses Ersatzteil anfragen |
| 15 | 692258 | Stop Platte | Dieses Ersatzteil anfragen |
| 16 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 17 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 18 | ETK0002 | Housing | Dieses Ersatzteil anfragen |
| 19 | 706090 | Sechskant Schraube m10x20 DIN 933 bei Zeichnung | Dieses Ersatzteil anfragen |
| 20 | 706039 | Sechskant Schraube m14x110 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 21 | 372416 | Dichtung plug | Dieses Ersatzteil anfragen |
| 22 | 2171710001 | Conical grease nipple as 8x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 23 | 692687 | Hebel geschweißt | Dieses Ersatzteil anfragen |
| 24 | 692648 | Feder bow kompl.. | Dieses Ersatzteil anfragen |
| 25 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 26 | 692237 | Ablenkung Hebel kompl.. IH=90:27 | Dieses Ersatzteil anfragen |
| 26 | 692711 | Ablenkung Hebel kompl.. IH=90:30 | Dieses Ersatzteil anfragen |
| 26 | 692712 | Ablenkung Hebel kompl.. IH=90:33,5 | Dieses Ersatzteil anfragen |
| 27 | 692236 | Hand Bremse Hebel inkl.. Bremse away Kabel Profi | Dieses Ersatzteil anfragen |
| 28 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 29 | 1225358 | Ersatz Teile Satz bellow Hand Bremse Hebel Profi Außendurchmesser | Ansehen 1225358 |
| 30 | 692645 | Buchse | Dieses Ersatzteil anfragen |
| 31 | 706089 | Sechskant Schraube m8x16 DIN 933 bei Zeichnung | Dieses Ersatzteil anfragen |
| 32 | 1224107 | Deichsel Öse england e40/a (Ø40/Ø50) mit Befestigung Schrauben Version a | Dieses Ersatzteil anfragen |
| 33 | 706004 | Sechskant Schraube m10x125 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 34 | 694937 | Klemme (Ø48/Ø60) Profi Auflauf Gerät | Dieses Ersatzteil anfragen |
| 35 | 645708 | Klemme Griff mit joint M12 (Ø48/Ø60) | Dieses Ersatzteil anfragen |
| 36 | 705519 | Sechskantmutter M10 DIN 985-10 | Ansehen 705519 |
| 37 | 1351118 | Baugruppe group Klemme (M12) Profi Auflauf Gerät | Dieses Ersatzteil anfragen |
| 38 | 1565356 | Scheibe 13x30x4 bei Zeichnung | Dieses Ersatzteil anfragen |
| Oder per E-Mail an info@masta.nl | |||
