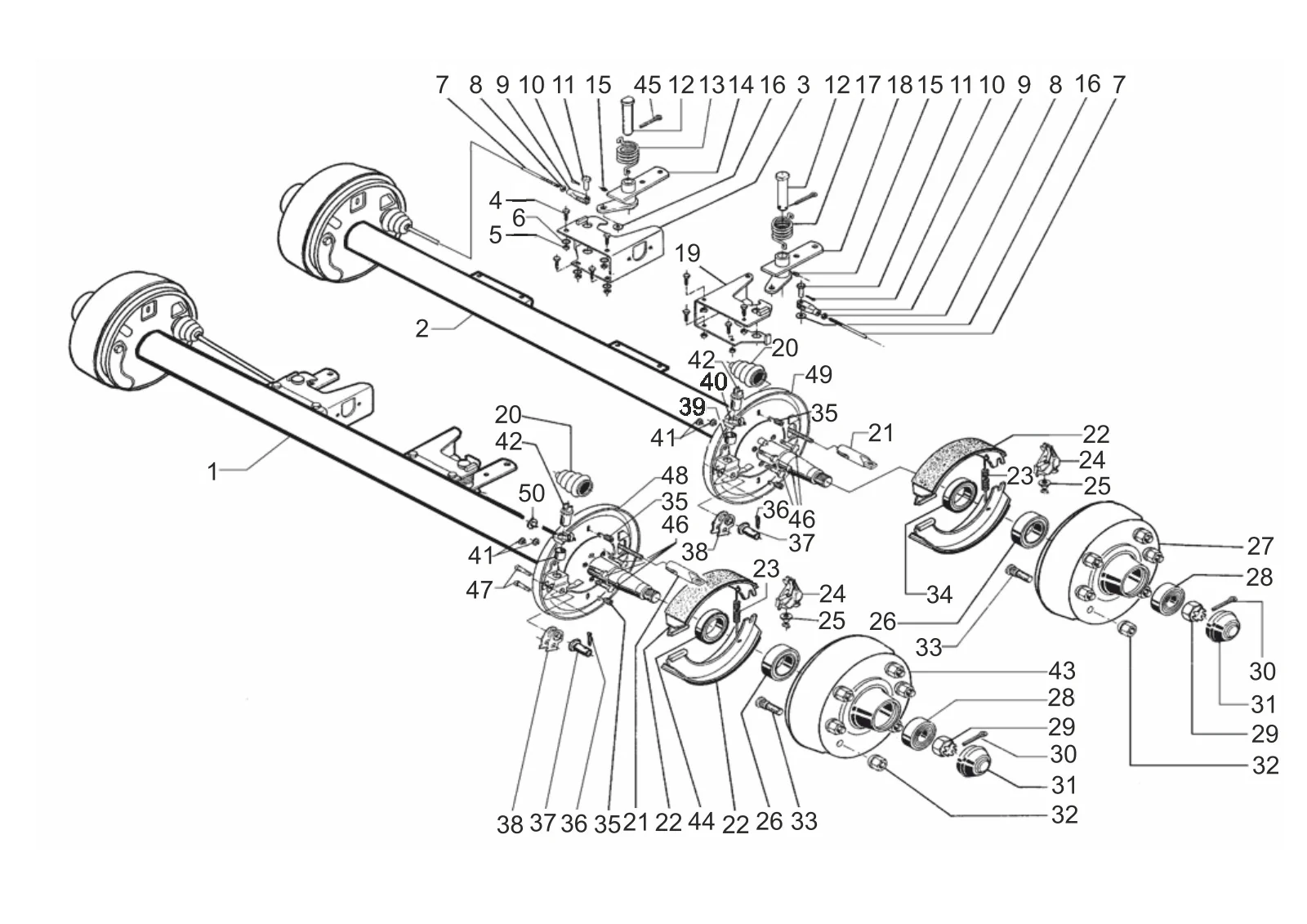

Technische Zeichnung 811497
AL-KO ETI 811497
Technische Daten
AL-KO | Rigid axle braked | Trailing arm | RB3062
ETI-Nummer
811497
Teile
57
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811497
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
57 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | ETK0018 | Not included in the scope of delivery of al-ko | Dieses Ersatzteil anfragen |
| 2 | ETK0018 | Not included in the scope of delivery of al-ko | Dieses Ersatzteil anfragen |
| 3 | 1313796 | Console rechts geschweißt | Dieses Ersatzteil anfragen |
| 4 | 705457 | Sechskant Schraube m12x30 DIN 933 8.8 | Ansehen 705457 |
| 5 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 6 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 7 | ETK0018 | Not included in the scope of delivery of al-ko | Dieses Ersatzteil anfragen |
| 8 | 705378 | Sechskantmutter M10 DIN 934-8 | Ansehen 705378 |
| 9 | 706614 | Fork Kopf 10x40 DIN 71752 | Ansehen 706614 |
| 10 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 11 | 706298 | Schraube b10 h11x28x23,5 en22341 | Dieses Ersatzteil anfragen |
| 12 | 1312391 | Schraube | Dieses Ersatzteil anfragen |
| 13 | 358268 | Torsion Feder rechts | Dieses Ersatzteil anfragen |
| 14 | 1364406 | Hebel Bremse rechts kompl.. | Dieses Ersatzteil anfragen |
| 15 | 705396 | Scheibe a 10,5 DIN 125-st | Ansehen 705396 |
| 16 | 705396 | Scheibe a 10,5 DIN 125-st | Ansehen 705396 |
| 17 | 358267 | Torsion Feder links | Dieses Ersatzteil anfragen |
| 18 | 1364405 | Hebel Bremse links kompl.. | Dieses Ersatzteil anfragen |
| 19 | 1313795 | Console links geschweißt | Dieses Ersatzteil anfragen |
| 20 | 358257 | Bellows Rad Bremse | Dieses Ersatzteil anfragen |
| 21 | 358266 | Connection Öse | Dieses Ersatzteil anfragen |
| 22 | 1220334 | Satz Bremse jaw für one Achse achse 3062 | Ansehen 1220334 |
| 23 | 355833 | Spannung Feder links | Dieses Ersatzteil anfragen |
| 23 | 2589250004 | Spannung Feder rechts | Dieses Ersatzteil anfragen |
| 24 | 574371 | Spread hinge Schloss links 3081ar | Dieses Ersatzteil anfragen |
| 24 | 574372 | Spread hinge Schloss rechts 3081ar | Dieses Ersatzteil anfragen |
| 25 | 614338 | Reset Rad Baugruppe links montiert | Dieses Ersatzteil anfragen |
| 25 | 614339 | Reset Rad Baugruppe rechts montiert | Dieses Ersatzteil anfragen |
| 26 | 701774 | Konisch Rolle Lager 30211 DIN 720 | Dieses Ersatzteil anfragen |
| 27 | 691619 | Bremstrommel kpl. mit lager und radbolzen Ø205x6 | Ansehen 691619 |
| 27 | 1363325 | Bremstrommel kpl. mit lager und radbolzen 205x6abv | Ansehen 1363325 |
| 28 | 702125 | Konisch Rolle Lager 32008 xdin 720 | Dieses Ersatzteil anfragen |
| 29 | 706286 | Castle Mutter m33x1,5 DIN 937 | Dieses Ersatzteil anfragen |
| 30 | 700856 | Geteilt Stift 6,3x63 DIN 94 | Dieses Ersatzteil anfragen |
| 31 | 368527 | Ende Kappe Ø70 | Ansehen 368527 |
| 32 | 701202 | Rad Mutter DIN 74361-a18- 8 a3b (m18x1,5) | Dieses Ersatzteil anfragen |
| 33 | 2487940005 | Rad stud m18x1,5 x58 | Dieses Ersatzteil anfragen |
| 34 | 702126 | Rotary Welle lip Dichtung as 65x100x10 DIN 3760-nb | Dieses Ersatzteil anfragen |
| 35 | 2781960004 | Compression Feder | Dieses Ersatzteil anfragen |
| 36 | 700193 | Geteilt Stift 4x25 DIN 94 | Dieses Ersatzteil anfragen |
| 37 | 706311 | Schraube b16 h11x60x54,0 en22341- | Dieses Ersatzteil anfragen |
| 38 | 690613 | Auto reserve Hebel kompl.. 3062ar/abv | Dieses Ersatzteil anfragen |
| 39 | 368535 | Buchse | Dieses Ersatzteil anfragen |
| 40 | 358259 | Securing Teil | Dieses Ersatzteil anfragen |
| 41 | 373245 | Plug ral6002 | Ansehen 373245 |
| 42 | 646155 | Regulation Einheit Rad Bremse 3062/3081 | Dieses Ersatzteil anfragen |
| 43 | 691619 | Bremstrommel kpl. mit lager und radbolzen Ø205x6 | Ansehen 691619 |
| 43 | 1363325 | Bremstrommel kpl. mit lager und radbolzen 205x6abv | Ansehen 1363325 |
| 44 | 702126 | Rotary Welle lip Dichtung as 65x100x10 DIN 3760-nb | Dieses Ersatzteil anfragen |
| 45 | 700197 | Geteilt Stift 6,3x36 DIN 94 | Dieses Ersatzteil anfragen |
| 46 | 705456 | Sechskant screwm12x25 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 47 | 706401 | Zylinder Schraube m 8x18 DIN 912 8.8 | Dieses Ersatzteil anfragen |
| 48 | 692428 | Bremsen Platte links 3062ar | Dieses Ersatzteil anfragen |
| 48 | 692429 | Bremsen Platte rechts 3062ar | Dieses Ersatzteil anfragen |
| 49 | 692424 | Bremsen Platte links 3062ar/abv | Dieses Ersatzteil anfragen |
| 49 | 692425 | Bremsen Platte rechts 3062ar/abv | Dieses Ersatzteil anfragen |
| 50 | 357228 | Dichtung plug | Dieses Ersatzteil anfragen |
