AL-KO technische Zeichnung · ETI 811256
AL-KO ETI 811256 – Auflauf Gerät Quadrat 100 161 hydraulik
Sie suchen Ersatzteile für AL-KO ETI 811256? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät Quadrat 100 161 hydraulik.
Zur TeilelisteExplosionszeichnung

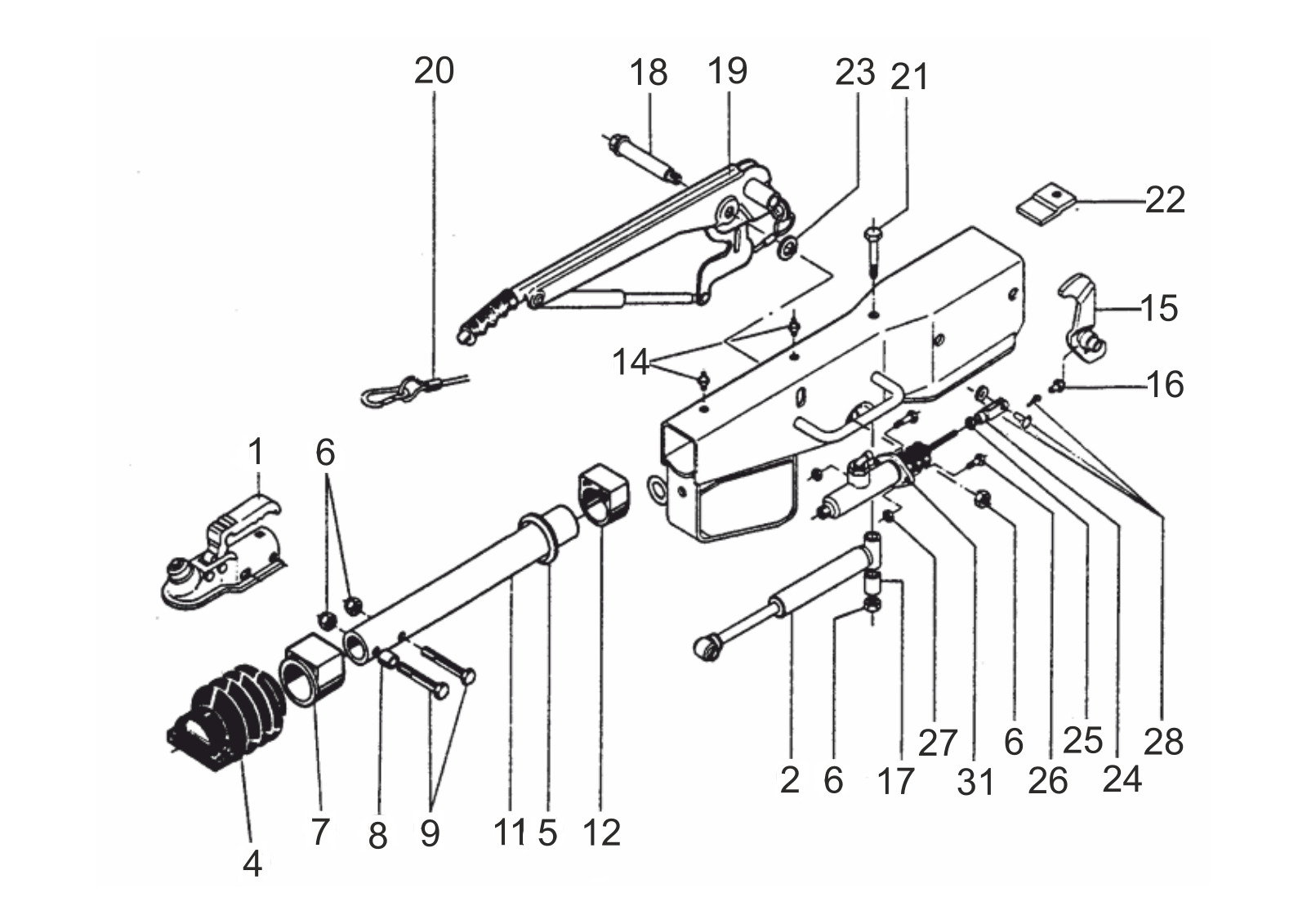

Technische Zeichnung 811256
AL-KO ETI 811256
Technische Daten
AL-KO | square design | 161S | hydraulic cylinder | ball coupling
ETI-Nummer
811256
Teile
29
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811256
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
29 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | ETK0001 | Kugel Kupplung | Dieses Ersatzteil anfragen |
| 2 | 370558 | Stoß Stoßdämpfer 161s | Dieses Ersatzteil anfragen |
| 4 | 366356 | Bellows | Ansehen 366356 |
| 5 | 371372 | Damping rubber | Ansehen 371372 |
| 6 | 705389 | Sechskantmutter M12 DIN 980-V-8 | Ansehen 705389 |
| 7 | 353943 | Flanged Buchse | Dieses Ersatzteil anfragen |
| 8 | 357242 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 9 | 705418 | Sechskant Schraube m12x70 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 10 | ETK0002 | Housing | Dieses Ersatzteil anfragen |
| 11 | 571874 | Zug Rohr geschweißt 251s | Ansehen 571874 |
| 12 | 353942 | Plain Lager Buchse | Ansehen 353942 |
| 14 | 375900 | Conical grease nipple as 8x1 DIN 71412 | Ansehen 375900 |
| 15 | 690105 | Ablenkung Hebel kompl.. uni IH=90:27 | Dieses Ersatzteil anfragen |
| 16 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 17 | 625660 | Abstand Buchse 27mm lang | Dieses Ersatzteil anfragen |
| 18 | 581145 | Lager Schraube m12x100 Ø19 | Ansehen 581145 |
| 19 | 1250058 | Hand Bremse Hebel inkl.. Bremse away Kabel | Dieses Ersatzteil anfragen |
| 20 | 368605 | Breakaway Kabel 950 mm Länge | Ansehen 368605 |
| 21 | 705425 | Sechskant Schraube m12x120 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 22 | 647011 | Stop Platte | Dieses Ersatzteil anfragen |
| 23 | 370693 | Scheibe Ø19x34x3 | Dieses Ersatzteil anfragen |
| 24 | 706614 | Fork Kopf 10x40 DIN 71752 | Ansehen 706614 |
| 25 | 705390 | Sechskantmutter M10 DIN 980-V-8 | Dieses Ersatzteil anfragen |
| 26 | 705383 | Sechskantmutter m8 DIN 985-8 | Dieses Ersatzteil anfragen |
| 27 | 701470 | Schraube b10 h11x28x24 DIN 1434vz | Dieses Ersatzteil anfragen |
| 28 | 701470 | Schraube b10 h11x28x24 DIN 1434vz | Dieses Ersatzteil anfragen |
| 28 | 705396 | Scheibe a 10,5 DIN 125-st | Ansehen 705396 |
| 28 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 31 | 1311411 | Hydraulic Zylinder | Ansehen 1311411 |
| Oder per E-Mail an info@masta.nl | |||
