AL-KO ETI 811191 – Auflauf Gerät Quadrat 100 161s
Sie suchen Ersatzteile für AL-KO ETI 811191? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät Quadrat 100 161s.

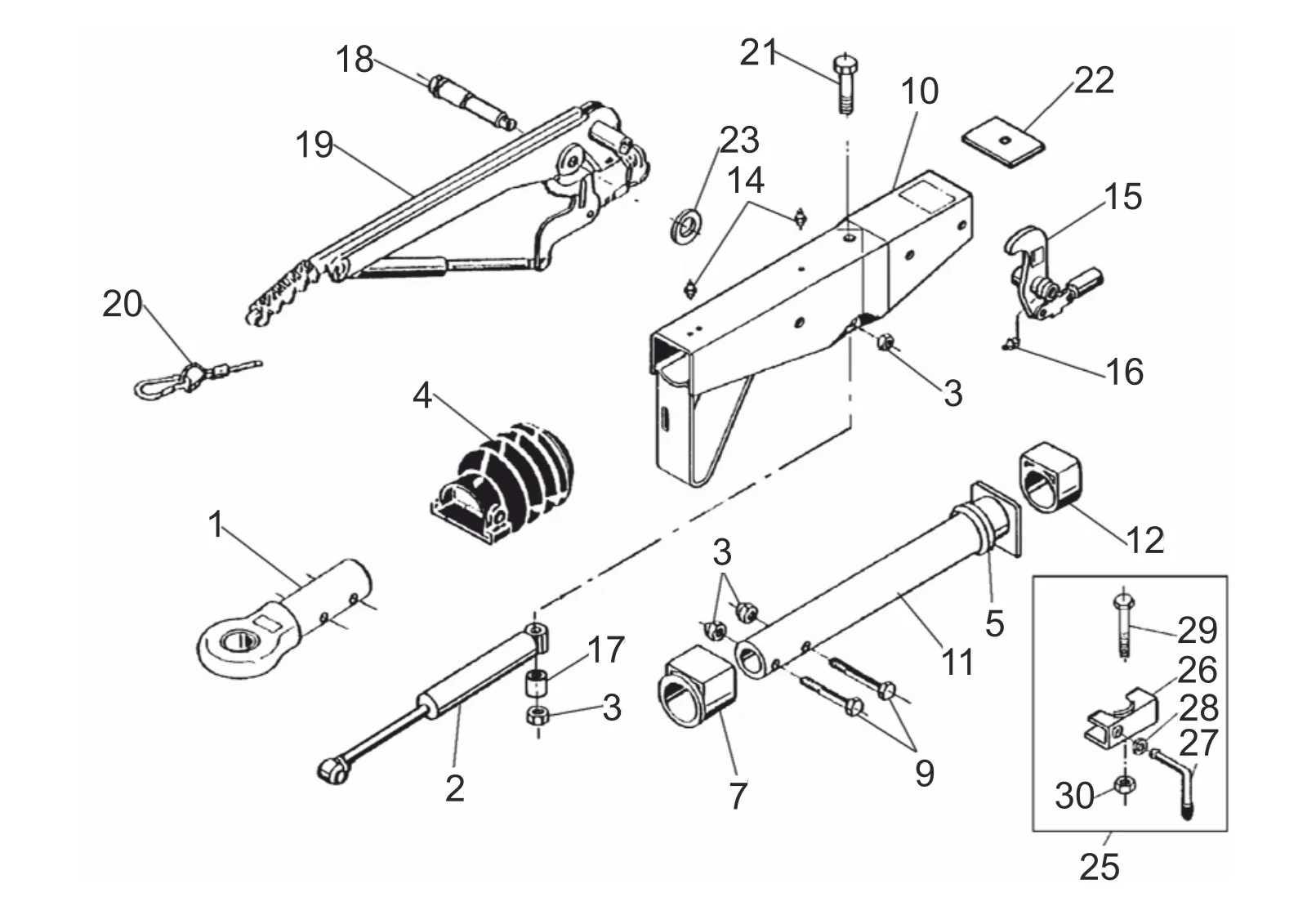

Explosionszeichnung
Technische Zeichnung 811191
AL-KO ETI 811191
Technische Daten
AL-KO | square design | 161S | with gas spring lever | drawbar eye
ETI-Nummer
811191
Teile
30
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811191
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
30 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 357419 | Deichsel Öse DIN Ø40 161/251s | Ansehen 357419 |
| 1 | 357420 | Deichsel Öse nato Ø76 | Dieses Ersatzteil anfragen |
| 1 | 370999 | Deichsel Öse italien Ø45 | Dieses Ersatzteil anfragen |
| 1 | 1302125 | Deichsel Öse 2" england Ø50 | Dieses Ersatzteil anfragen |
| 2 | 370558 | Stoß Stoßdämpfer 161s | Dieses Ersatzteil anfragen |
| 3 | 705389 | Sechskantmutter M12 DIN 980-V-8 | Ansehen 705389 |
| 4 | 366356 | Bellows | Ansehen 366356 |
| 5 | 371372 | Damping rubber | Ansehen 371372 |
| 7 | 353943 | Flanged Buchse | Dieses Ersatzteil anfragen |
| 9 | 705545 | Sechskant Schraube m12x60 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 10 | ETK0002 | Housing | Dieses Ersatzteil anfragen |
| 11 | 380309 | Zug Rohr geschweißt 161/251s | Dieses Ersatzteil anfragen |
| 11 | 571875 | Zug Rohr geschweißt 161/251s | Dieses Ersatzteil anfragen |
| 12 | 353942 | Plain Lager Buchse | Ansehen 353942 |
| 14 | 2171710001 | Conical grease nipple as 8x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 15 | 626665 | Ablenkung Hebel kompl.. M10 IH=90:30 | Dieses Ersatzteil anfragen |
| 16 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 17 | 625660 | Abstand Buchse 27mm lang | Dieses Ersatzteil anfragen |
| 18 | 581145 | Lager Schraube m12x100 Ø19 | Ansehen 581145 |
| 19 | 220096 | Hand Bremse Hebel inkl.. Bremse away Kabel 161s-251s-161r | Ansehen 220096 |
| 20 | 368605 | Breakaway Kabel 950 mm Länge | Ansehen 368605 |
| 21 | 705425 | Sechskant Schraube m12x120 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 22 | 581699 | Stop Platte | Ansehen 581699 |
| 23 | 370693 | Scheibe Ø19x34x3 | Dieses Ersatzteil anfragen |
| 25 | ETK0004 | Baugruppe Klemme geschweißt | Dieses Ersatzteil anfragen |
| 26 | 20531802 | Jockey Rad outer Klemme | Dieses Ersatzteil anfragen |
| 27 | 20531703 | Klemme Griff Komplett zinc coated | Ansehen 20531703 |
| 28 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 29 | 705498 | Sechskant Schraube m8x65 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 30 | 700643 | Sechskantmutter m8 DIN 980-V-8 ZP | Dieses Ersatzteil anfragen |
| Oder per E-Mail an info@masta.nl | |||
