AL-KO ETI 811129 – Auflauf Gerät Quadrat 120/180 2,8vb/1-c
Sie suchen Ersatzteile für AL-KO ETI 811129? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät Quadrat 120/180 2,8vb/1-c.
Zur TeilelisteExplosionszeichnung

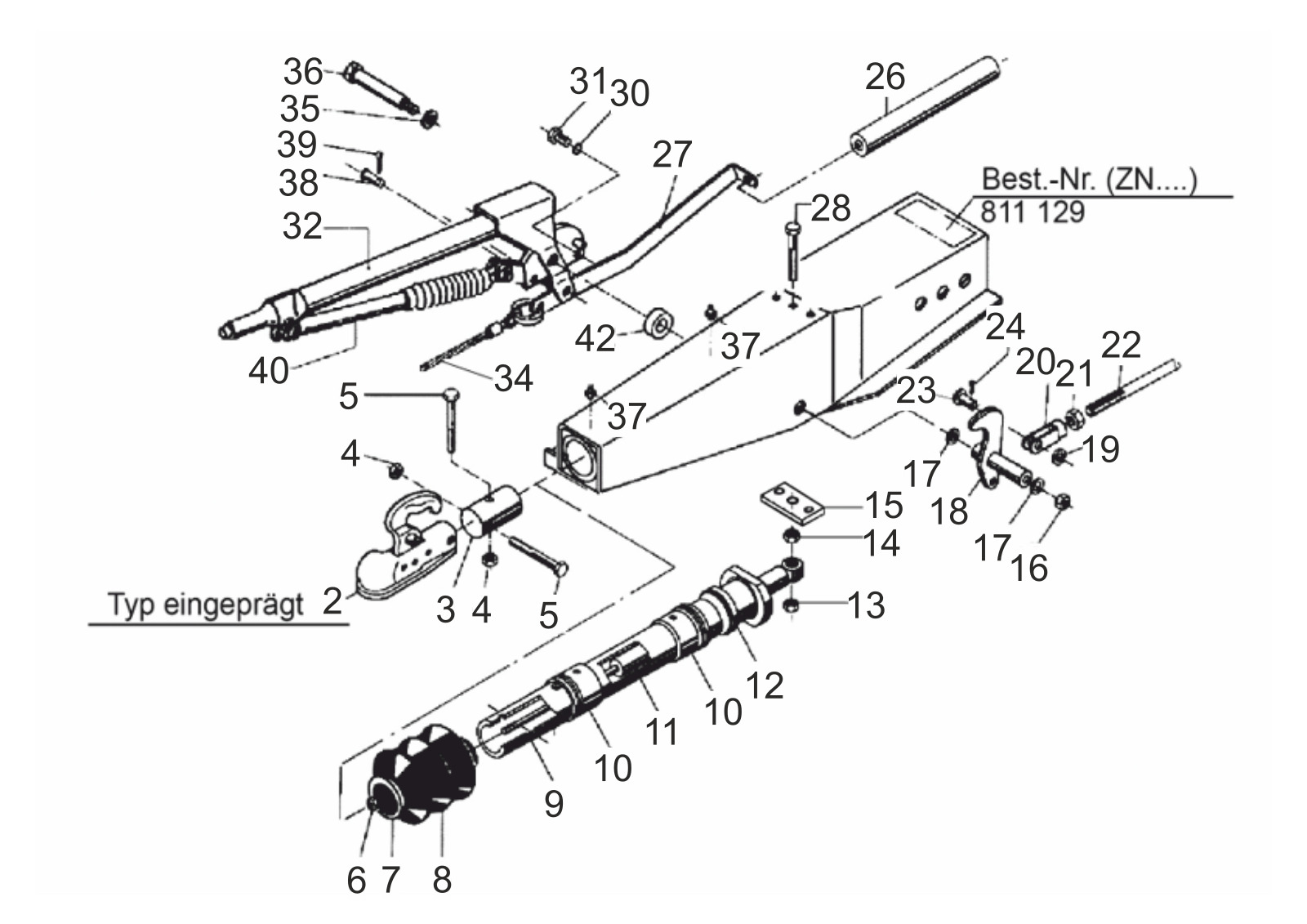

Technische Zeichnung 811129
AL-KO ETI 811129
Technische Daten
AL-KO | square design | 2,8VB/1-C | spring load memory | ball coupling
ETI-Nummer
811129
Teile
39
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811129
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
39 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | ETK0002 | Housing | Dieses Ersatzteil anfragen |
| 2 | 247619 | Kupplung ak350 | Dieses Ersatzteil anfragen |
| 3 | 357451 | Schraube | Dieses Ersatzteil anfragen |
| 4 | 706306 | Sechskantmutter m16 DIN 985-8 | Ansehen 706306 |
| 5 | 706301 | Sechskant Schraube m16x100 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 6 | 706011 | Sechskantmutter m10x1,0 DIN 439-b-04 | Dieses Ersatzteil anfragen |
| 7 | 701422 | Kabel tie 360x4,8 schwarz | Dieses Ersatzteil anfragen |
| 8 | 21726605 | Bellows | Ansehen 21726605 |
| 9 | 354263 | Zug Rohr geschweißt mit 2 drillings | Ansehen 354263 |
| 10 | 2172660004 | Lager Buchse | Ansehen 2172660004 |
| 11 | 21726604 | Stoß Stoßdämpfer 2,8vb/351z | Ansehen 21726604 |
| 12 | 2172660003 | Damping rubber | Ansehen 2172660003 |
| 13 | 705605 | Sechskantmutter m14 DIN 980-V-8 | Dieses Ersatzteil anfragen |
| 14 | 706290 | Sechskantmutter m14 DIN 439-b-04 | Dieses Ersatzteil anfragen |
| 15 | 647966 | Ende stop Platte (from june 2007) | Dieses Ersatzteil anfragen |
| 16 | 705389 | Sechskantmutter M12 DIN 980-V-8 | Ansehen 705389 |
| 17 | 2075750006 | Scheibe polyamid | Dieses Ersatzteil anfragen |
| 18 | 380804 | Ablenkung Hebel kompl.. 351 z IH=90:32 | Dieses Ersatzteil anfragen |
| 18 | 590130 | Ablenkung Hebel kompl.. IH=90:35,5 | Dieses Ersatzteil anfragen |
| 19 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 20 | 21783407 | Fork Kopf geschweißt | Dieses Ersatzteil anfragen |
| 21 | 705379 | Sechskantmutter M12 DIN 934-8 | Dieses Ersatzteil anfragen |
| 22 | ETK0006 | Linkage: please specify the Länge und diameter | Dieses Ersatzteil anfragen |
| 23 | 706522 | Schraube b12 h11x40x34,5 en22341 | Dieses Ersatzteil anfragen |
| 24 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 26 | 21783408 | Feder Zylinder kompl.. | Ansehen 21783408 |
| 27 | 353137 | Spannung Halter welde heiß getaucht | Dieses Ersatzteil anfragen |
| 28 | 706287 | Sechskant Schraube m14x80 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 30 | 706490 | Feder Schloss Scheibe 12 DIN 7980 | Dieses Ersatzteil anfragen |
| 31 | 706395 | Zylinder Schraube m12x25 DIN 912 8.8 | Dieses Ersatzteil anfragen |
| 32 | 220297 | Hand Bremse Hebel Komplett | Ansehen 220297 |
| 34 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 35 | 706490 | Feder Schloss Scheibe 12 DIN 7980 | Dieses Ersatzteil anfragen |
| 36 | 590127 | Lager Schraube geschweißt | Dieses Ersatzteil anfragen |
| 37 | 375900 | Conical grease nipple as 8x1 DIN 71412 | Ansehen 375900 |
| 38 | 358533 | Schraube | Ansehen 358533 |
| 39 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 40 | 603896 | Gas Feder gf14/7-676709/13-2000 | Ansehen 603896 |
| 42 | 625628 | Abstand Buchse | Dieses Ersatzteil anfragen |
