AL-KO ETI 811117 – Auflauf Gerät V 251g
Sie suchen Ersatzteile für AL-KO ETI 811117? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät V 251g.

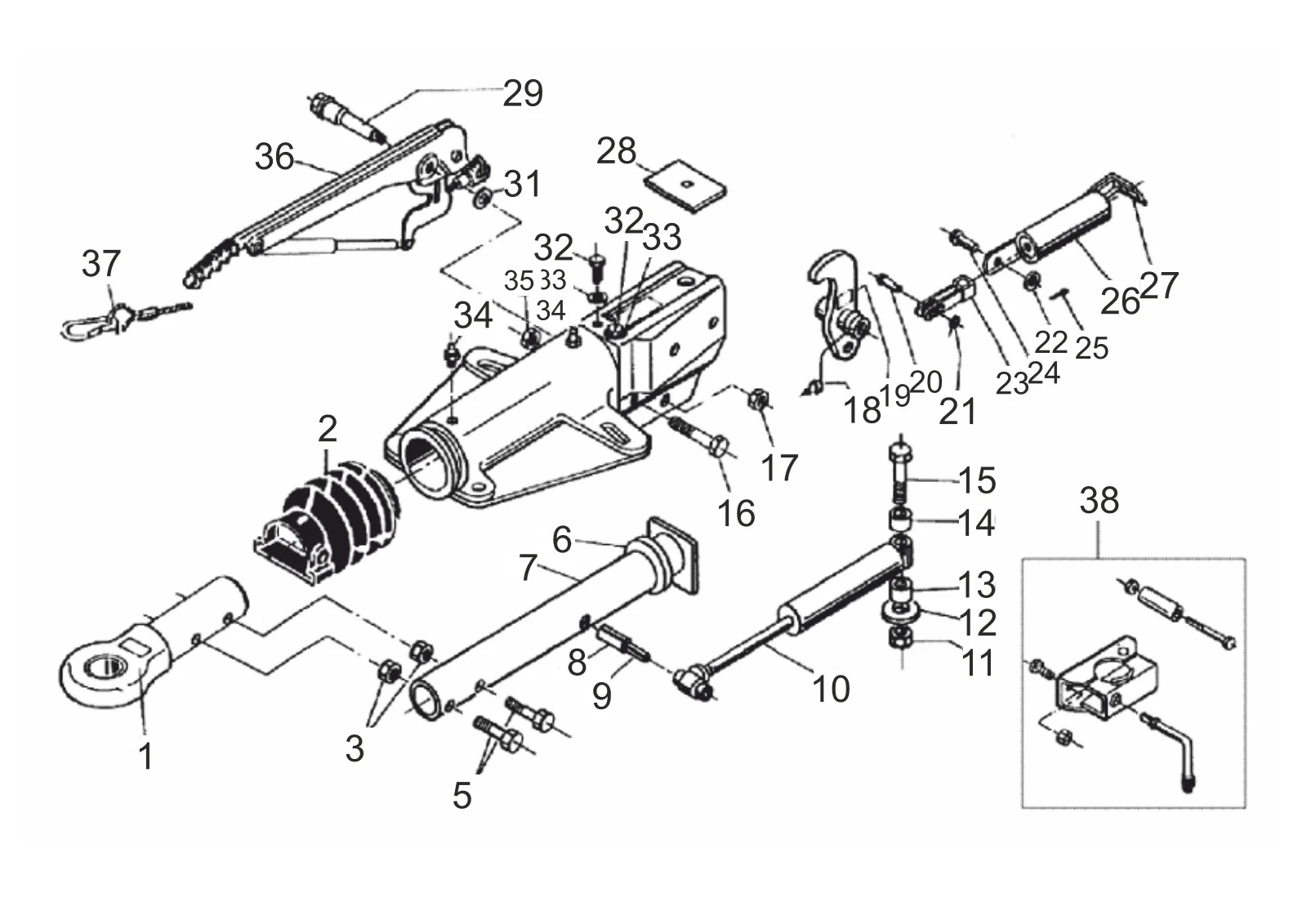

Explosionszeichnung
Technische Zeichnung 811117
AL-KO ETI 811117
Technische Daten
AL-KO | V-design | 251G | spring load memory | drawbar eye
ETI-Nummer
811117
Teile
38
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811117
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
38 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | 357419 | Deichsel Öse DIN Ø40 161/251s | Ansehen 357419 |
| 1 | 357420 | Deichsel Öse nato Ø76 | Dieses Ersatzteil anfragen |
| 2 | 366356 | Bellows | Ansehen 366356 |
| 3 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 4 | 357242 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 5 | 700222 | Sechskant Schraube m12x60 DIN 931 8.8 ZP | Dieses Ersatzteil anfragen |
| 6 | 371372 | Damping rubber | Ansehen 371372 |
| 7 | 573853 | Zug Rohr geschweißt | Ansehen 573853 |
| 8 | 704408 | Schnapp Haken 12x48 nach zeichnung | Dieses Ersatzteil anfragen |
| 9 | 704407 | Schnapp Haken 7x48 nach zeichnung | Dieses Ersatzteil anfragen |
| 10 | 372641 | Stoß Stoßdämpfer 251vb/251s/251g | Ansehen 372641 |
| 11 | 706013 | Sechskantmutter m16 DIN 985-10 | Dieses Ersatzteil anfragen |
| 12 | 706081 | Scheibe a 17 DIN 125-st | Dieses Ersatzteil anfragen |
| 13 | 375928 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 14 | 375929 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 15 | 701571 | Sechskant Schraube m16x100 DIN 931 8.8 ZP | Dieses Ersatzteil anfragen |
| 16 | 701904 | Sechskant Schraube m10x90 DIN 931 8.8 ZP | Dieses Ersatzteil anfragen |
| 17 | 700645 | Sechskantmutter M12 DIN 980-V-10 ZP | Ansehen 700645 |
| 18 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 19 | 354238 | Ablenkung Hebel kompl.. IH=90:27 | Dieses Ersatzteil anfragen |
| 20 | 702121 | Round Kopf rivet 10x25 DIN 124 | Dieses Ersatzteil anfragen |
| 21 | 705396 | Scheibe a 10,5 DIN 125-st | Ansehen 705396 |
| 22 | 705397 | Scheibe a 13 DIN 125-st | Ansehen 705397 |
| 23 | 2073890606 | Fork Kopf geschweißt | Dieses Ersatzteil anfragen |
| 24 | 584955 | Lager Schraube | Dieses Ersatzteil anfragen |
| 25 | 700192 | Geteilt Stift 4x20 DIN 94 (bei Zeichnung) | Dieses Ersatzteil anfragen |
| 26 | 2077050601 | Feder Zylinder kompl.. | Ansehen 2077050601 |
| 27 | 586371 | Spannung Halter welde heiß getaucht | Dieses Ersatzteil anfragen |
| 28 | 375572 | Stop Platte | Dieses Ersatzteil anfragen |
| 29 | 581145 | Lager Schraube m12x100 Ø19 | Ansehen 581145 |
| 31 | 370693 | Scheibe Ø19x34x3 | Dieses Ersatzteil anfragen |
| 32 | 702751 | Self tapping screwa 8x20 DIN 7513 ZP | Dieses Ersatzteil anfragen |
| 33 | 701765 | Serrated Schloss Scheibe a8,4 DIN 6798 zinc plated | Dieses Ersatzteil anfragen |
| 34 | 2171710001 | Conical grease nipple as 8x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 35 | 700644 | Sechskantmutter M10 DIN 980-V-10 ZP | Dieses Ersatzteil anfragen |
| 36 | 244764 | Hand Bremse Hebel inkl.. Bremse away Kabel 251g 2,8 | Dieses Ersatzteil anfragen |
| 37 | 368605 | Breakaway Kabel 950 mm Länge | Ansehen 368605 |
| 38 | 293020 | Jockey whell Klemme für Rohr Ø48 161/251 | Ansehen 293020 |
