AL-KO ETI 811111 – Auflauf Gerät Typ 251r/q Rohr Ø88,9x8,8

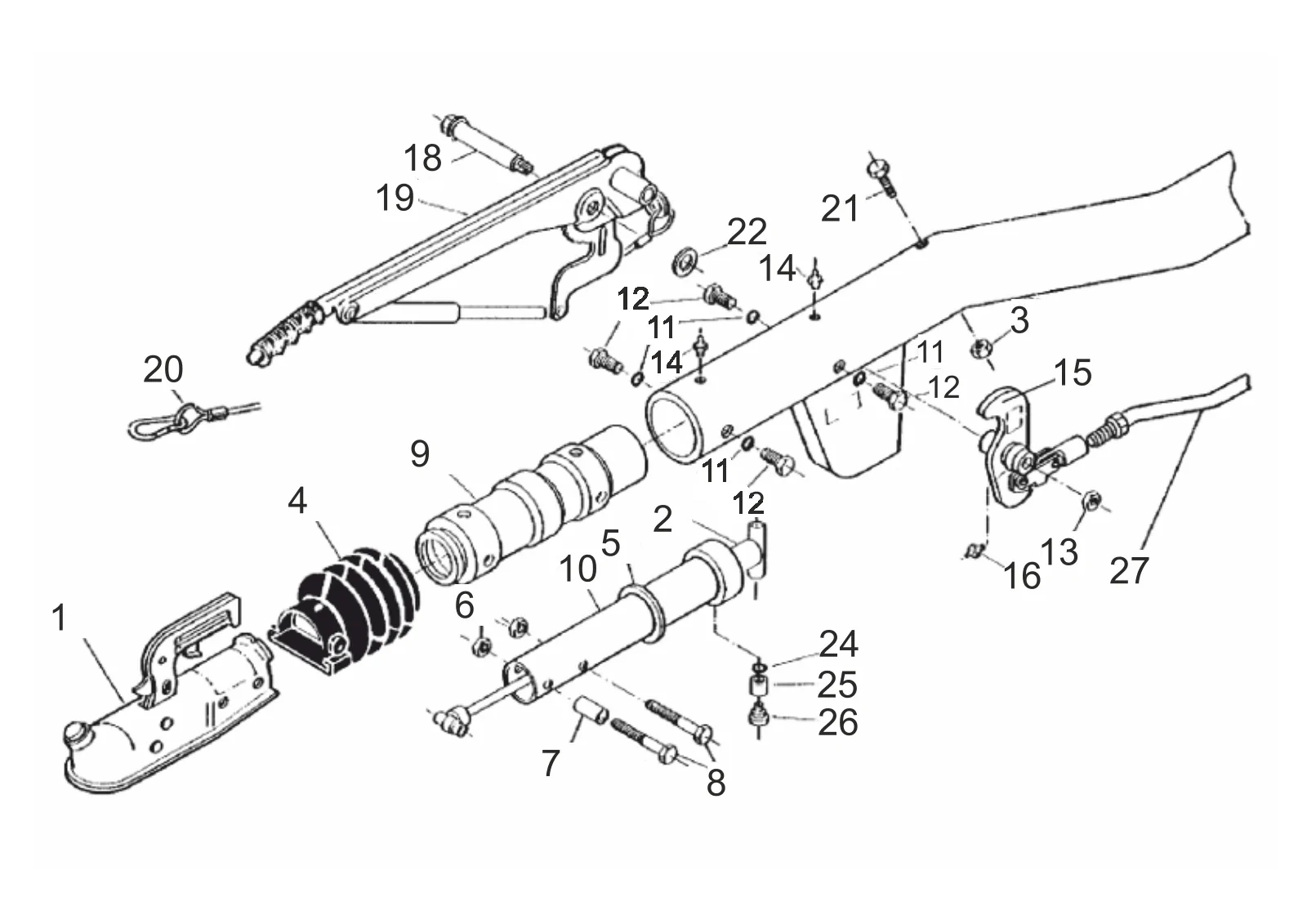

Sie suchen Ersatzteile für AL-KO ETI 811111? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät Typ 251r/q Rohr Ø88,9x8,8.
Explosionszeichnung
Technische Zeichnung 811111
AL-KO ETI 811111
Technische Daten
AL-KO | pipe design | 251R/Q | with gas spring lever | ball coupling
ETI-Nummer
811111
Teile
30
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811111
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
30 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | ETK0001 | Kugel Kupplung | Dieses Ersatzteil anfragen |
| 2 | 370589 | Stoß Stoßdämpfer 251s | Ansehen 370589 |
| 3 | 700645 | Sechskantmutter M12 DIN 980-V-10 ZP | Ansehen 700645 |
| 4 | 366356 | Bellows | Ansehen 366356 |
| 5 | 371372 | Damping rubber | Ansehen 371372 |
| 6 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 7 | 357242 | Abstand Buchse | Dieses Ersatzteil anfragen |
| 8 | 701249 | Sechskant Schraube m12x75 DIN 931 8.8 ZP | Dieses Ersatzteil anfragen |
| 9 | 584508 | Lager cartridge | Dieses Ersatzteil anfragen |
| 10 | 626895 | Zug Rohr geschweißt | Dieses Ersatzteil anfragen |
| 11 | 705544 | Serrated Schloss Scheibe a10,5 DIN 6798 | Dieses Ersatzteil anfragen |
| 12 | 701334 | Sechskant Schraube m10x16 DIN 933 8.8 vz | Dieses Ersatzteil anfragen |
| 13 | 705526 | Sechskantmutter M12 DIN 985-10 | Ansehen 705526 |
| 14 | 368461 | Conical grease nipple as 8x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 15 | 380502 | Ablenkung Hebel kompl.. uni IH=90:27 | Dieses Ersatzteil anfragen |
| 15 | 380517 | Ablenkung Hebel kompl.. uni IH=90:33,5 | Dieses Ersatzteil anfragen |
| 15 | 380717 | Ablenkung Hebel kompl.. uni IH=90:30 | Dieses Ersatzteil anfragen |
| 15 | 386946 | Ablenkung Hebel kompl.. IH=90:27 | Dieses Ersatzteil anfragen |
| 15 | 570243 | Ablenkung Hebel kompl.. IH=90:33,5 | Dieses Ersatzteil anfragen |
| 16 | 700203 | Conical grease nipple as 6x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 18 | 581145 | Lager Schraube m12x100 Ø19 | Ansehen 581145 |
| 19 | 220096 | Hand Bremse Hebel inkl.. Bremse away Kabel 161s-251s-161r | Ansehen 220096 |
| 19 | 220098 | Hand Bremse Hebel inkl.. Bremse away Kabel 251s/g | Ansehen 220098 |
| 20 | 368605 | Breakaway Kabel mit hooks 950 mm Länge für common commercial trailers | Ansehen 368605 |
| 21 | 705420 | Sechskant Schraube m12x110 DIN 931 8.8 | Dieses Ersatzteil anfragen |
| 22 | 370693 | Scheibe Ø19x34x3 | Dieses Ersatzteil anfragen |
| 24 | 706477 | Serrated Schloss Scheibe a8,4 DIN 6798 | Dieses Ersatzteil anfragen |
| 25 | 583043 | Buchse | Dieses Ersatzteil anfragen |
| 26 | 583042 | Lager Schraube bei Zeichnung | Dieses Ersatzteil anfragen |
| 27 | 366185 | Bowdenzug Kabel Auflauf Gerät 490/760 | Dieses Ersatzteil anfragen |
| Oder per E-Mail an info@masta.nl | |||
