AL-KO technische Zeichnung · ETI 811075
AL-KO ETI 811075 – Auflauf Gerät V 2,8vb/1-c gültig bis 09/95

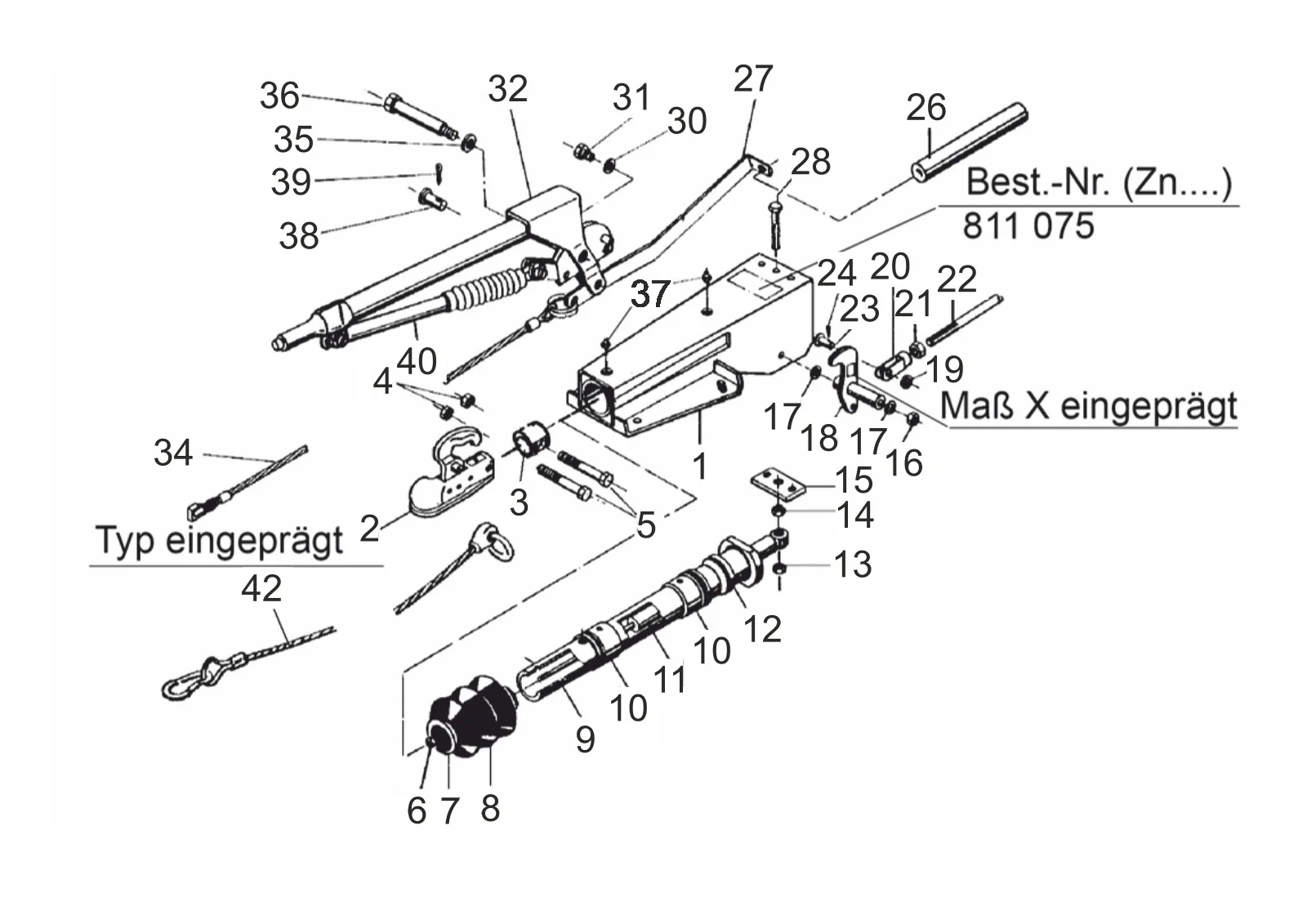

Sie suchen Ersatzteile für AL-KO ETI 811075? Hier finden Sie die technische Explosionszeichnung und die vollständige Teileliste für Auflauf Gerät V 2,8vb/1-c gültig bis 09/95.
Zur TeilelisteExplosionszeichnung
Technische Zeichnung 811075
AL-KO ETI 811075
Technische Daten
AL-KO | V-design | 2,8VB/1-C | with gas spring lever | ball coupling
ETI-Nummer
811075
Teile
39
Vergleichen Sie die Positionsnummer in der Zeichnung mit der Teileliste. Verfügbare Artikel können Sie direkt ansehen.
Ersatzteile
Teileliste für ETI 811075
Nutzen Sie die Positionsnummer aus der Explosionszeichnung, um das richtige Ersatzteil zu finden.
39 Teile
| Pos. | Artikelnummer | Beschreibung | |
|---|---|---|---|
| 1 | ETK0001 | Kugel Kupplung | Dieses Ersatzteil anfragen |
| 2 | 294286 | Kupplung ak 35 | Dieses Ersatzteil anfragen |
| 3 | 357451 | Schraube | Dieses Ersatzteil anfragen |
| 4 | 706013 | Sechskantmutter m16 DIN 985-10 | Dieses Ersatzteil anfragen |
| 5 | 701571 | Sechskant Schraube m16x100 DIN 931 8.8 ZP | Dieses Ersatzteil anfragen |
| 6 | 702205 | Sechskantmutter m10x1,0 DIN 439-b-04 | Dieses Ersatzteil anfragen |
| 7 | 701422 | Kabel tie 360x4,8 schwarz | Dieses Ersatzteil anfragen |
| 8 | 21726605 | Bellows | Ansehen 21726605 |
| 9 | 354263 | Zug Rohr geschweißt mit 2 drillings | Ansehen 354263 |
| 10 | 2172660004 | Lager Buchse | Ansehen 2172660004 |
| 11 | 21726604 | Stoß Stoßdämpfer 2,8vb/351z | Ansehen 21726604 |
| 12 | 2172660003 | Damping rubber | Ansehen 2172660003 |
| 13 | 706508 | Sechskantmutter m14 DIN 980-V-10 | Dieses Ersatzteil anfragen |
| 14 | 701549 | Sechskantmutter m14 DIN 439-b-04 | Dieses Ersatzteil anfragen |
| 15 | 647966 | Ende stop Platte (from june 2007) | Dieses Ersatzteil anfragen |
| 16 | 700645 | Sechskantmutter M12 DIN 980-V-10 ZP | Ansehen 700645 |
| 17 | 2075750006 | Scheibe polyamid | Dieses Ersatzteil anfragen |
| 18 | 354264 | Ablenkung Hebel kompl.. IH=90:32 | Ansehen 354264 |
| 18 | 387959 | Ablenkung Hebel kompl.. IH=90:35,5 | Dieses Ersatzteil anfragen |
| 19 | 700215 | Scheibe 12 DIN 1440 | Dieses Ersatzteil anfragen |
| 20 | 21783407 | Fork Kopf geschweißt | Dieses Ersatzteil anfragen |
| 21 | 705379 | Sechskantmutter M12 DIN 934-8 | Dieses Ersatzteil anfragen |
| 22 | ETK0006 | Linkage: please specify the Länge und diameter | Dieses Ersatzteil anfragen |
| 23 | 701566 | Schraube b12 h11x40x34,5 en22341 vz | Dieses Ersatzteil anfragen |
| 24 | 700192 | Geteilt Stift 4x20 DIN 94 (bei Zeichnung) | Dieses Ersatzteil anfragen |
| 26 | 21783408 | Feder Zylinder kompl.. | Ansehen 21783408 |
| 27 | 353137 | Spannung Halter welde heiß getaucht | Dieses Ersatzteil anfragen |
| 28 | 706287 | Sechskant Schraube m14x80 DIN 933 8.8 | Dieses Ersatzteil anfragen |
| 30 | 700130 | Feder Schloss Scheibe b12 DIN 127 ZP | Dieses Ersatzteil anfragen |
| 31 | 700460 | Sechskant Schraube m12x25 DIN 933 8.8 ZP | Dieses Ersatzteil anfragen |
| 32 | 220118 | Hand Bremse Hebel 2,8 vb/1 inkl.. Bremse away Kabel | Dieses Ersatzteil anfragen |
| 34 | 209385 | Breakaway Kabel 980 mm Länge sweden | Dieses Ersatzteil anfragen |
| 35 | 700135 | Geteilt Schloss Scheibe b 16 DIN 137 cd | Dieses Ersatzteil anfragen |
| 36 | 21783406 | Lager Schraube | Ansehen 21783406 |
| 37 | 2171710001 | Conical grease nipple as 8x1 DIN 71412 | Dieses Ersatzteil anfragen |
| 38 | 358533 | Schraube | Ansehen 358533 |
| 39 | 705487 | Geteilt Stift 3,2x20 DIN 94 | Dieses Ersatzteil anfragen |
| 40 | 353188 | Gas Feder gf14/7-676710/14-2000 | Ansehen 353188 |
| 42 | 380843 | Breakaway Kabel mit burst Ring | Dieses Ersatzteil anfragen |
| Oder per E-Mail an info@masta.nl | |||
